Condition: New – Open box

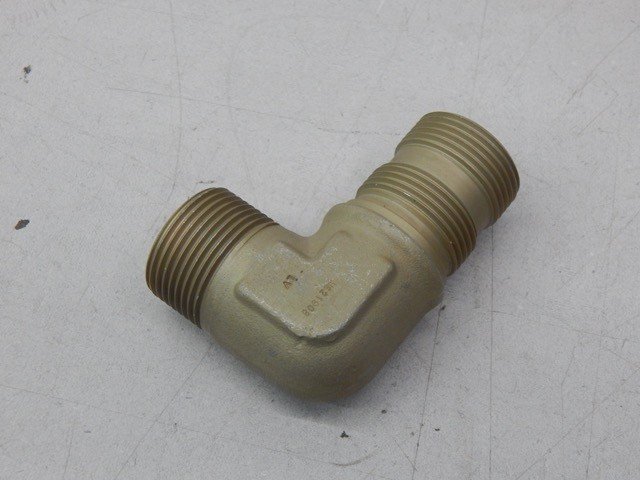

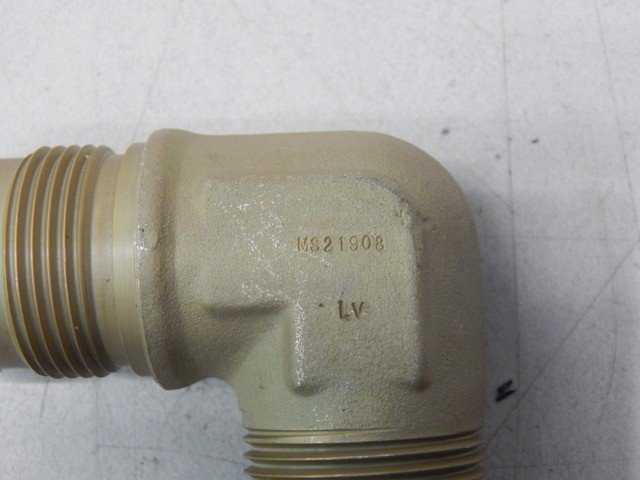

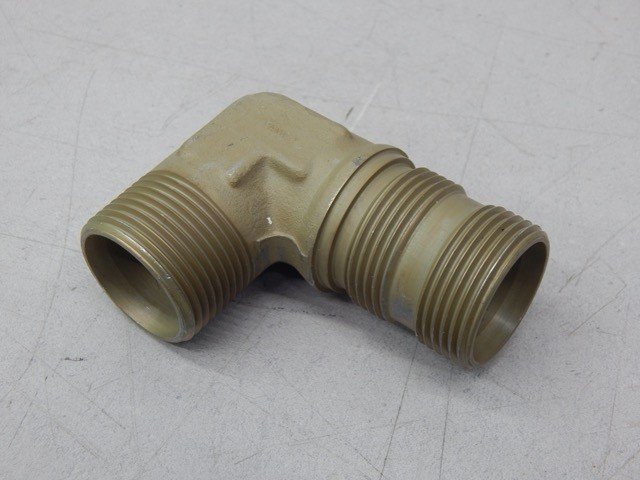

TACOM MS21908-16, SAE-AS18280, 4730006183118, Elbow Tube TACOM MS21908-16, SAE-AS18280, 4730006183118, Elbow Tube

TACOM

MS21908-16, SAE-AS18280

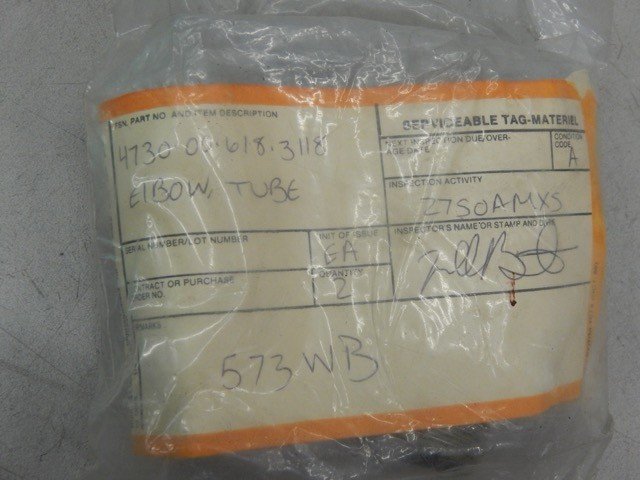

4730006183118

Elbow Tube

Technical informationNameValueTHREAD CLASS3A ALL ENDSTHREAD CLASS3A FIRST END BULKHEADEND ITEM IDENTIFICATIONAIRCRAFT APPLICATIONCONNECTION STYLEFLARELESS (TUBE) ALL ENDSLEG LENGTH2.594 INCHES NOMINAL FIRST ENDLEG LENGTH1.719 INCHES NOMINAL SECOND ENDCONNECTION TYPETHREADED EXTERNAL TUBE ALL ENDSTHREAD QUANTITY PER INCH12 FIRST END BULKHEADTHREAD QUANTITY PER INCH12 ALL ENDSNOMINAL THREAD SIZE1.312 INCHES ALL ENDSNOMINAL THREAD SIZE1.312 INCHES FIRST END BULKHEADSEAT ANGLE12.0 DEGREES ALL ENDSFLOW ANGLE90.0 DEGREESNOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED1.000 INCHES ALL ENDSMATERIALSTEEL OVERALLSURFACE TREATMENTCADMIUM OVERALLSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416,TY 1,CL2 FED SPEC SINGLE TREATMENT RESPONSE OVERALLTHREAD SERIES DESIGNATORUNIFIED NATIONAL JOINT (UNJ) FIRST END BULKHEADTHREAD SERIES DESIGNATORUNIFIED NATIONAL JOINT (UNJ) ALL ENDSSPECIFICATION/STANDARD DATA96906-MS21908 GOVERNMENT STANDARD

489-C-G-04398-000000

Unless otherwise noted, this listing is for one item per purchase.
