Condition: New – Open box

TACOM 8694714, 5360005620007, Loader Door Helical Torsion Spring TACOM 8694714, 5360005620007, Loader Door Helical Torsion Spring

TACOM

8694714

5360005620007

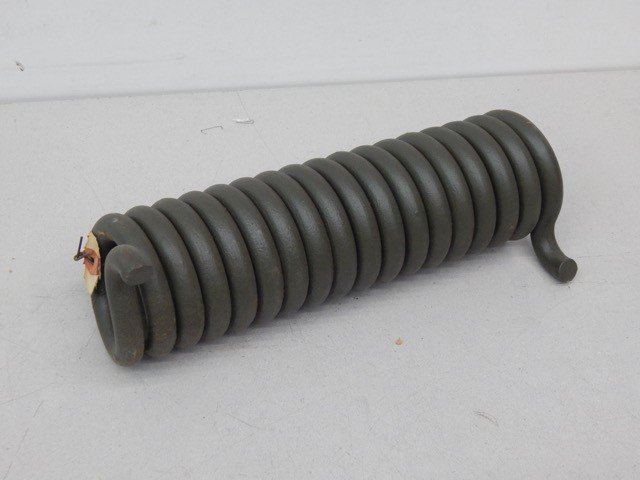

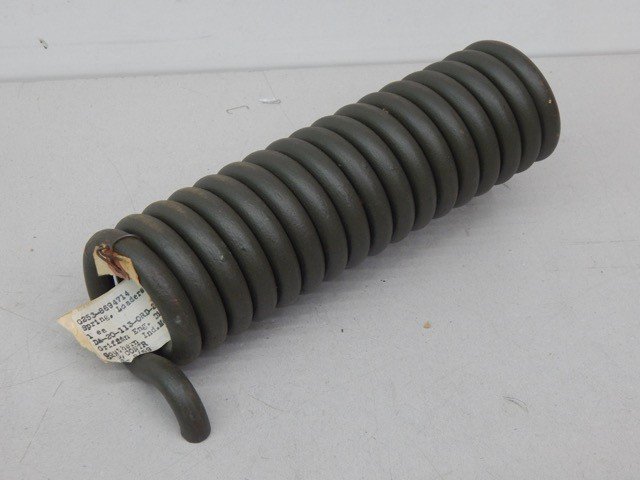

Loader Door Helical Torsion Spring

Technical informationNameValueINSIDE DIAMETER1.907 INCHES MINIMUM AND 1.969 INCHES MAXIMUMEND STYLEREDUCED LOOP END OVERALLSPRING FREE LENGTH10.688 INCHES MINIMUM AND 10.875 INCHES MAXIMUMCOIL QUANTITY17COIL HELIX DIRECTIONRIGHT-HANDSPRING FREE OUTSIDE DIAMETER3.062 INCHES NOMINALHOOK RADIUS0.109 INCHES NOMINAL OVERALLEND ANGULAR RELATIONSHIPENDS ANGLED ONE TO OTHEREND LENGTH FROM SECOND BEND TO THIRD BEND OR END0.938 INCHES NOMINAL OVERALLSPECIAL FEATURES1/16 IN. DEEP BY 45 DEG ANGLE CHAMFERED ENDSMATERIALSTEEL OVERALLMATERIAL DOCUMENT AND CLASSIFICATIONQQ-W-474,COMP C FED SPEC SINGLE MATERIAL RESPONSE OVERALLSTYLE DESIGNATORSINGLE TORSION LEFT HAND

423-C-04316-000000

Unless otherwise noted, this listing is for one item per purchase.
