Condition: New other (see details)

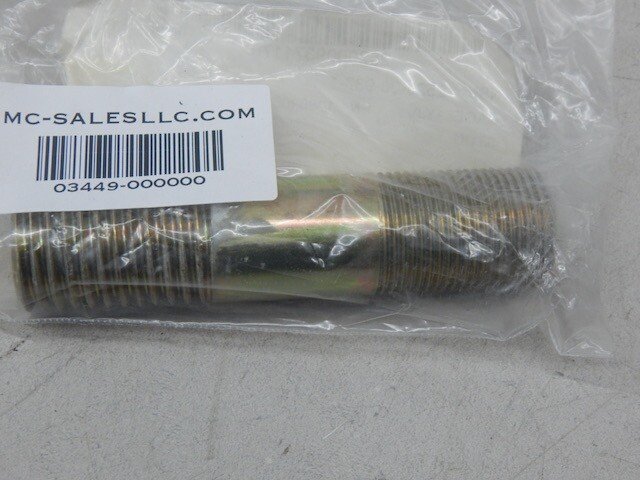

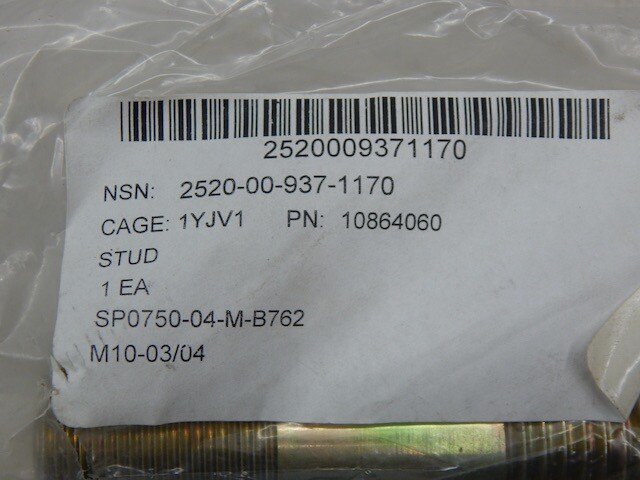

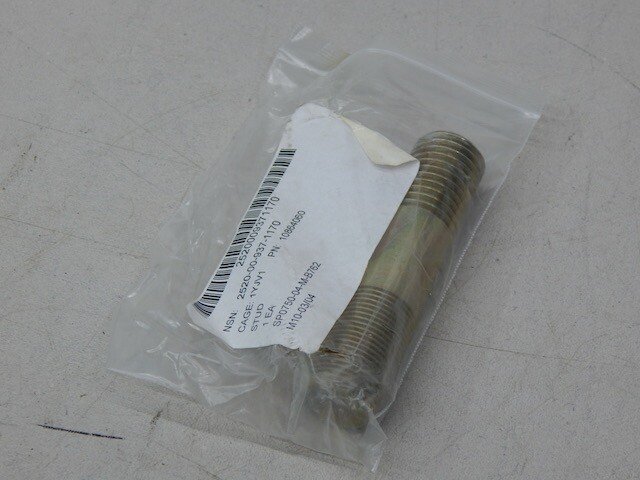

TACOM 10864060, 2520009371170, Stud, Final Drive (ALT MPN 151978005003) TACOM 10864060, 2520009371170, Stud, Final Drive (ALT MPN 151978005003)

TACOM

10864060

2520009371170

Stud, Final Drive

ALT MPN

151978005003

Technical informationNameValueEND ITEM IDENTIFICATIONTANK COMBAT FULL-TRACKED W/M9 BULLDOZER KIT (M60AGENERAL CHARACTERISTICS ITEM DESCRIPTIONSTEEL ALLOY,COMP 8640,ASTM-A322,4.250 IN. L,1.000 IN. W,STUD TO BE IN ACCORDANCE WITH SPEC FF-S-1362,EXCEPT MECHANICAL PROPERTIES SHALL BE ULT TENSILE STRENGTH 150,000 PSI MIN,PROOFLOAD 120,000 PSI MIN,QUENCH AND TEMPER,ROCKWELL C32-38,GRIND BLANK TO 32 RMS,FINISH AFTER HEAT TREATMENT AND BEFORE THREAD ROLLING,THREADS MUST BE ROLLED AFTER HEAT TREATMENT,1.000-8 UNC-3A MODIFIED,1.350 IN. MIN FULL THREAD,1.660 MAX THREAD RUNOUT TO FULLCYLINDRICAL SURFACE OF BODY,THREAD ROOT RADIUS SHALL BE 0.0135 IN. TO 0.0180 IN. AND RADIUS AT THREAD RUN OUT SHALL NOT BE LESS THAN MIN ROOT RADIUS,1.000-14 NF-2A,1.350 IN. MIN FULL THREAD,1.550 MAX THREAD RUNOUT,THREAD ROOT RADIUS SHALL BE 0.0080 IN.TO 0.0103 IN.,CADMIUM PLATE,TYPE 2 CLASS 3,SPEC QQ-P-416,WITHIN 4 HOURS AFTER PLATING,THE PART SHALL BE BAKED AT 375 DEGREES F FOR A MIN OF THREE HOURS TIME AT TEMP

End itemEnd Item CodeUnique NSNEnd ItemUJM6,113BRIDGE ARMOR VEHICLE LAUNCHER (AVLB) – MODEL M60A1FTA5,900ARMORED VEHICLE LAUNCH BRIDGE (M60A1 & M48A5)30A7,220TANK, M-60 SERIES2350007951797COMBAT ENGINEER VEHICLE,FULL TRACKEDTANK COMBAT FULL-TRACKED W/M9 BULLDOZER KIT (M60A

415-B-03449-000000

Unless otherwise noted, this listing is for one item per purchase.
