Condition: New – Open box

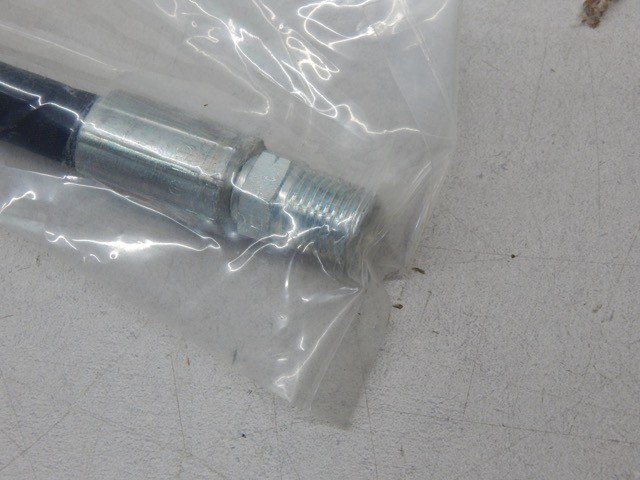

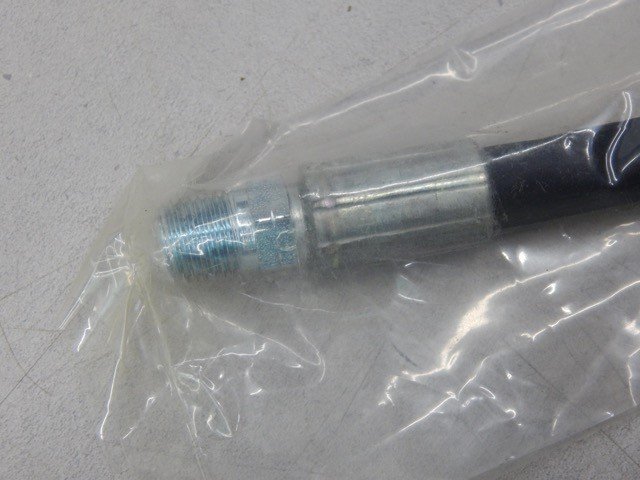

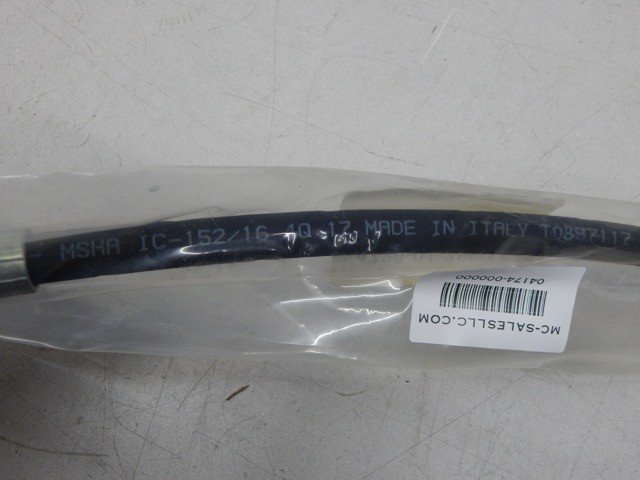

Hydraulic Hose Assembly: 1/4 in ID MNPT, 1 1/4 ft Lg, Black, ¼”x¼” 2F711 Hydraulic Hose Assembly: 1/4 in ID MNPT, 1 1/4 ft Lg, Black, ¼”x¼” 2F711

Grainger

2F711, R2-4-15M

4720013861872

Hose Assembly

00904B-504-J04-01075, 79900004-01075

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD DIRECTIONRIGHT-HAND FIRST ENDINSIDE DIAMETER0.250 INCHES NOMINALTEMP RATING-40.0 FAHRENHEIT AND 200.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.500 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS2.500 INCHESEXTERIOR COLORNATURALEND ITEM IDENTIFICATION6115-01-274-7390CONNECTION STYLEPLAIN FIRST ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDCONNECTION TYPETHREADED EXTERNAL PIPE FIRST ENDBURST TEST PRESSURE1600.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.250 INCHES FIRST ENDOPERATING PRESSURE400.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDHYDROSTATIC TEST PRESSURE800.0 POUNDS PER SQUARE INCHVACUUM IN TORR20.0INSIDE SURFACE CONDITIONSMOOTHITEM STRUCTURAL COMPOSITIONBRAIDED FIBER FIRST LAYERITEM STRUCTURAL COMPOSITIONMOLDED RUBBER, CHLOROPRENE OUTER LAYERTHREAD SERIES DESIGNATORNPTF FIRST ENDGENERAL CHARACTERISTICS ITEM DESCRIPTIONCOLOR CLEAR, 3 X 4 3/4 X 3/4 INCH, WT. 3 OZ., A SECURITY SEAL IN THE FORM OF A CONTAINER, A NON-REUSEABLE STYRENE PLASTIC CONTAINER CONTROLS AND GIVES ACCOUNTABILITY FOR INDIVIDUAL KEYS AND INFORMATION, CONTAINER MUST BE BROKEN TO GAIN ACCESS TO CONTENTS

BrandAEROQUIPHose Inside Dia.1/4 inHose Outside Dia.9/16 inHose Length1-1/4 ftHose Tube MaterialSynthetic RubberHose Cover MaterialSynthetic RubberHose Reinforcement MaterialCarbon SteelHose ColorBlackMax. Working Pressure @ 70 F5,800 psiSafety Factor4:1Temp. Range-40° to 212°FStandardsSAE J517C 100R2Hose ConfigurationCoupled AssemblyHose Fitting A Size1/4 inHose Fitting B Size1/4 inHose Fitting A MaterialCarbon SteelHose Fitting B MaterialCarbon SteelHose Fitting A TypeMNPTHose Fitting B TypeMNPTCompatible ChemicalsAir; Automatic Transmission Fluid; Diesel Fuel; Ethylene Glycol; Fresh Water; Fuel Oil; Gasoline; Hydraulic Fluid (Petroleum); Hydraulic Fluid (Synthetic); Kerosene; Lithium Grease; Lubricated Air; Mineral Oil; Motor Oil; Salt WaterNot Recommended Chemicals0; Acetic Acid (Glacial); Acetic Acid 20%; Acetic Acid 80%; Acetone; Chromic Acid 10%; Chromic Acid 30%; Chromic Acid 5%; Chromic Acid 50%; Citric Acid 50%; Formic Acid; Hydrochloric/Muriatic Acid (100%); Hydrochloric/Muriatic Acid (20%); Hydrofluoric Acid (20%); Hydrofluoric Acid (75%); Hydrofluoric Acid 100%; Methyl Ethyl Ketone (MEK); Nitric Acid (10% Solution); Nitric Acid (20% Solution); Nitric Acid (50% Solution); Nitric Acid (Concentrated Solution); Phosphoric Acid (40% Solution); Sulfuric Acid (10% – 75%); Sulfuric Acid (75% – 100%); Sulfuric Acid (to 10%)Hose Reinforcement TypeBraidManufacturer Part NumberR2-4-15MUNSPSC40142005

Country of OriginUSA (subject to change)

414-C-Q-04174-000000

Unless otherwise noted, this listing is for one item per purchase.
