Condition: New – Open box

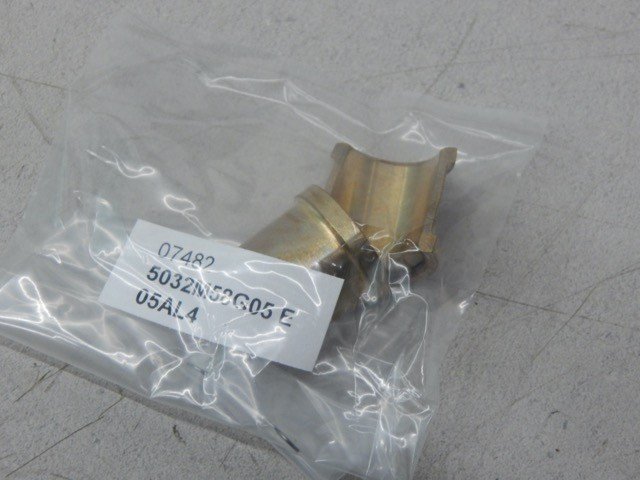

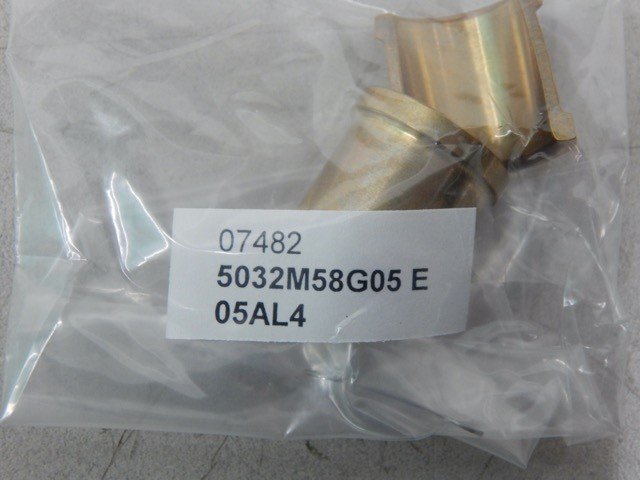

GE 5032M58G05, 3120001515162, Sleeve Bushing TF-39 GE 5032M58G05, 3120001515162, Sleeve Bushing TF-39

GE

5032M58G05

3120001515162

Sleeve Bushing

TF-39

Technical informationNameValueOVERALL LENGTH0.8300 INCHES MINIMUM AND 0.8500 INCHES MAXIMUMBODY OUTSIDE DIAMETER0.7450 INCHES MINIMUM AND 0.7550 INCHES MAXIMUMBODY INSIDE DIAMETER0.6270 INCHES MINIMUM AND 0.6310 INCHES MAXIMUMLEFT FLANGE OUTSIDE DIAMETER0.8370 INCHES MINIMUM AND 0.8420 INCHES MAXIMUMRIGHT FLANGE OUTSIDE DIAMETER0.8370 INCHES MINIMUM AND 0.8420 INCHES MAXIMUMLEFT FLANGE WIDTH0.1200 INCHES MINIMUM AND 0.1400 INCHES MAXIMUMRIGHT FLANGE WIDTH0.1200 INCHES MINIMUM AND 0.1400 INCHES MAXIMUMCORNER SHAPEROUND INSIDE LEFT CORNERCORNER SHAPEROUND INSIDE RIGHT CORNERCORNER SHAPESQUARE OUTSIDE RIGHT CORNERCORNER SHAPESQUARE RIGHT FLANGE BODY CORNERCORNER SHAPESQUARE RIGHT FLANGE OUTSIDE LEFT CORNERCORNER SHAPESQUARE LEFT FLANGE BODY CORNERCORNER SHAPESQUARE LEFT FLANGE OUTSIDE RIGHT CORNERCORNER SHAPESQUARE OUTSIDE LEFT CORNERSURFACE FINISH125.0 MICROINCHES INTERMEDIATE LAYERSTYLE DESIGNATORSEGMENTED, EXTERNAL FLANGES BOTH ENDS

489-C-G-04085-000000

Unless otherwise noted, this listing is for one item per purchase.
