Condition: New – Open box

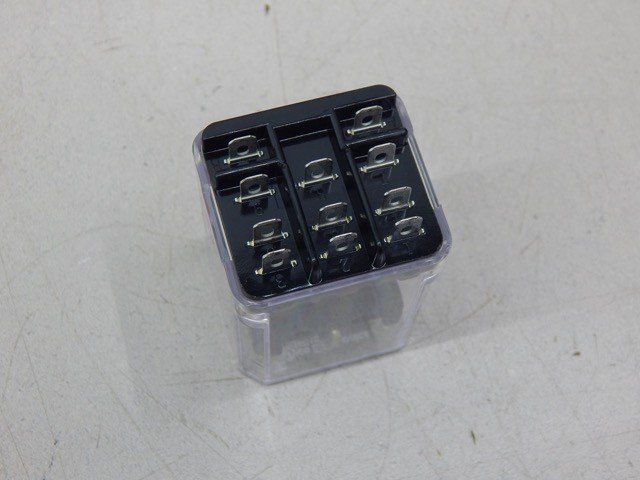

Tyco KUP-14D15-24, 5945004583351, 24-V Coil, Relay, ​11-Pin Tyco KUP-14D15-24, 5945004583351, 24-V Coil, Relay, ​11-Pin

Tyco

KUP-14D15-24

5945004583351

24-V Coil Relay
11-Pin

Technical informationNameValueOVERALL LENGTH2.330 INCHES NOMINALOVERALL HEIGHT1.400 INCHES NOMINALOVERALL WIDTH1.530 INCHES NOMINALENVIRONMENTAL PROTECTIONDUSTPROOFWINDING QUANTITY1COIL QUANTITY1WINDING DC RESISTANCE RATING472.0 OHMS NOMINAL SINGLE WINDINGDUTY TYPECONTINUOUSMOUNTING FACILITY TYPE AND QUANTITY1 PLUG-IN TERMINAL(S) SINGLE MOUNTING FACILITYNOMINAL OPERATING CURRENT RATING AND TYPE50.0 MILLIAMPERES DC SINGLE WINDINGOPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDINGMAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE10.0 AMPERES AC AND 10.0 AMPERES DC INDUCTIVE LOADMAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS120.0 AC AND 28.0 DCTERMINAL TYPE AND QUANTITY11 PIN ALL FUNCTIONSSPECIAL FEATURESCOLOR GREYSTYLE DESIGNATORB5A OVAL

414-C-Q-04161-000000

Unless otherwise noted, this listing is for one item per purchase.
