Condition: New – Open box

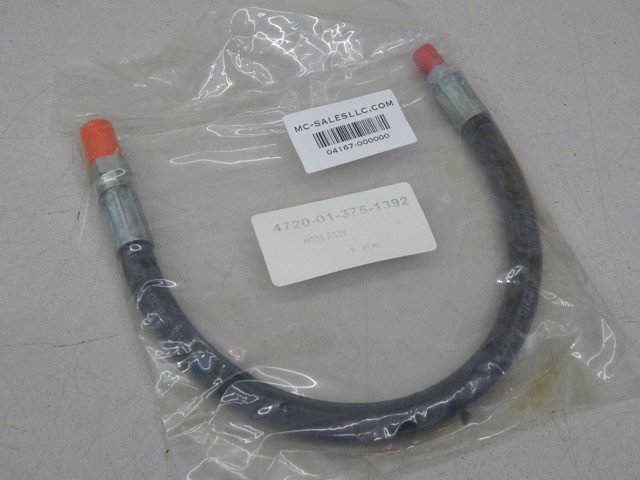

TACOM 88–22081–2, 4720013751392, Nonmetallic Fuel Hose Assy TACOM 88–22081–2, 4720013751392, Nonmetallic Fuel Hose Assy

TACOM

88–22081–2

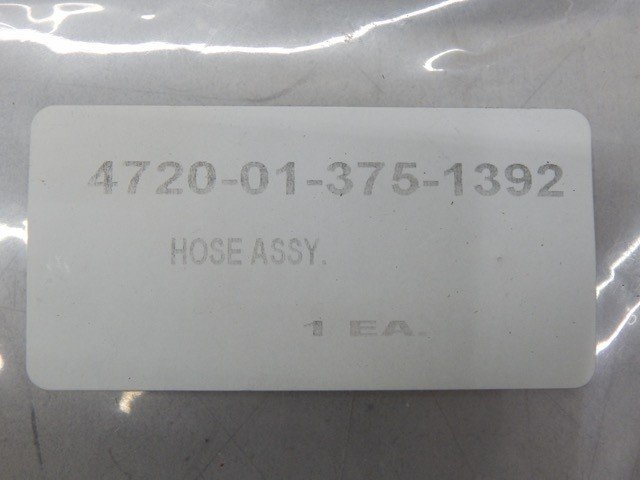

4720013751392

Nonmetallic Fuel Hose Assy

A3411-54, F6010313-4-4-4-17.25

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD DIRECTIONRIGHT-HAND FIRST ENDTHREAD DIRECTIONRIGHT-HAND SECOND ENDINSIDE DIAMETER0.250 INCHES NOMINALTEMP RATING-40.0 FAHRENHEIT AND 275.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.560 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS3.000 INCHESEND ITEM IDENTIFICATION6115-01-274-7389CONNECTION STYLEFLARED FIRST ENDCONNECTION STYLESWIVEL, PLAIN SECOND ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDEND CONNECTION DESIGNSTRAIGHT SECOND ENDCONNECTION TYPETHREADED EXTERNAL PIPE SECOND ENDCONNECTION TYPETHREADED EXTERNAL TUBE FIRST ENDBURST TEST PRESSURE5000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.250 INCHES SECOND ENDNOMINAL THREAD SIZE0.438 INCHES FIRST ENDOPERATING PRESSURE1250.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDSEAT ANGLE37.0 DEGREES FIRST ENDOUTER COVERING ENVIRONMENTAL PROTECTIONABRASION RESISTANT AND OIL RESISTANT AND WEATHERPROOFINSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH17.250 INCHES NOMINAL OVERALLMEDIA FOR WHICH DESIGNEDFUEL/OIL, HYDROCARBON AND WATER AND HYDRAULIC FLUID, WATER BASE AND AIR SINGLE RESPONSEITEM STRUCTURAL COMPOSITIONBRAIDED FIBER FIRST LAYERITEM STRUCTURAL COMPOSITIONBRAIDED FIBER SECOND LAYERITEM STRUCTURAL COMPOSITIONMOLDED RUBBER, SYNTHETIC OUTER LAYERTHREAD SERIES DESIGNATORJIC FIRST ENDTHREAD SERIES DESIGNATORNPTF SECOND END

414-C-Q-04167-000000

Unless otherwise noted, this listing is for one item per purchase.
