Condition: New – Open box

Sold Separately – Pulled from Bag

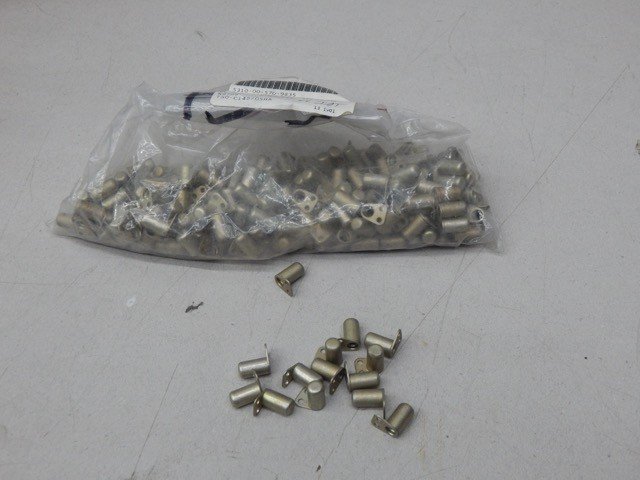

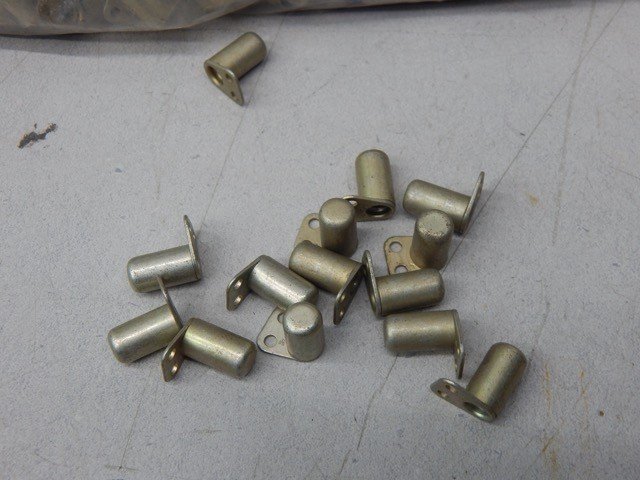

SPS M14640H02, 5310005709835, Self Locking Plate Nut SPS M14640H02, 5310005709835, Self Locking Plate Nut

SPS

M14640H02

5310005709835

Self Locking Plate Nut

Pulled from Bag – Sold Separately

Technical informationNameValueTHREAD CLASS3BTHREAD DIRECTIONRIGHT-HANDLOCKING FEATUREPREVAILING TORQUE ALL METAL DESIGNCOUNTERBORE DIAMETER0.194 INCHES MINIMUM NUTLUBRICATIONSOLUBLE LUBRICANTOVERALL HEIGHT0.596 INCHES MAXIMUMMOUNTING HOLE DIAMETER0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUMNUT STYLEPLATENUT LENGTH0.521 INCHES MAXIMUMNUT HEIGHT0.202 INCHES MAXIMUMPLATE THICKNESS0.047 INCHES MAXIMUMNUT COUNTERBORE DEPTH0.062 INCHES MINIMUM NUTNUT MOUNTING PROVISIONSTRAIGHT HOLESMOUNTING HOLE ARRANGEMENT STYLE2 HOLESDISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER0.245 INCHES MINIMUM AND 0.255 INCHES MAXIMUMTEMP RATING450.0 FAHRENHEIT NOMINALTHREAD SERIESUNIFIED NATIONAL JOINT FINE (UNJF)THREAD QUANTITY PER INCH32NOMINAL THREAD SIZE0.190 INCHESMATERIALSTEEL OVERALLSURFACE TREATMENTCADMIUM OVERALLSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL

415-D-R-04335-000000

Unless otherwise noted, this listing is for one item per purchase.
