Condition: New – Open box

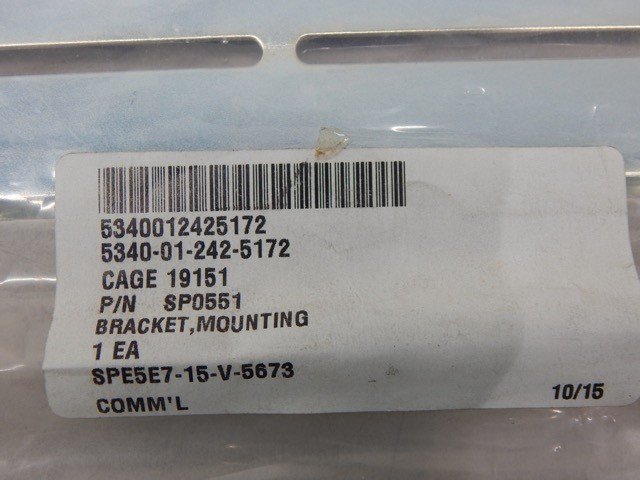

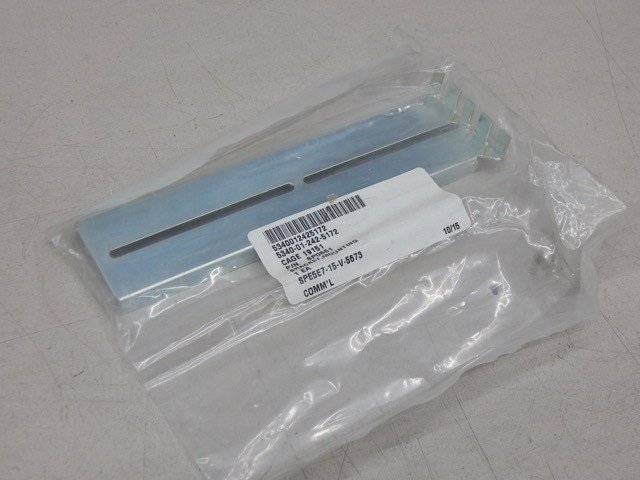

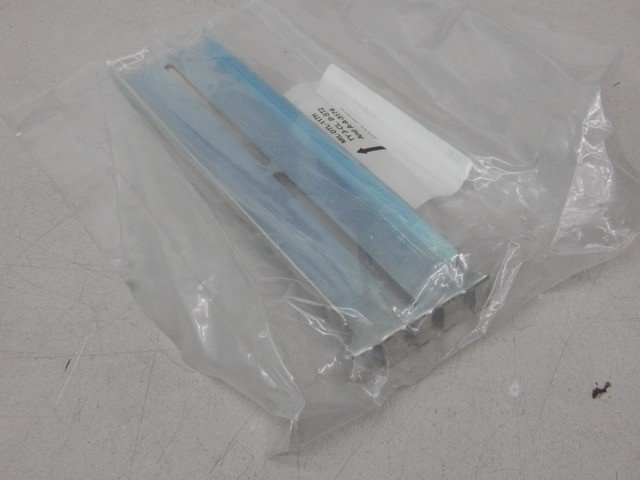

Jonathon SP0551, 5340012425172, Angle Mounting Bracket Jonathon SP0551, 5340012425172, Angle Mounting Bracket

Jonathon

SP0551

5340012425172

Angle Mounting Bracket

62828-90220-2, 4000-0253-CE

Technical informationNameValueFIRST LEG LENGTH0.615 INCHES MINIMUM AND 0.645 INCHES MAXIMUMSECOND LEG LENGTH4.000 INCHES NOMINALEND ITEM IDENTIFICATIONAUTOMATED SURFACE OBSERVING SYSTEM (ASOS) AND/OR AN/URC-119VSECOND LEG DISTANCE BETWEEN HOLE CENTERS ALONG LENGTH4.125 INCHES NOMINALSECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH1.320 INCHES NOMINALSECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH2.438 INCHES NOMINALSECOND LEG SLOT LENGTH3.875 INCHES NOMINALSECOND LEG SLOT WIDTH0.180 INCHES NOMINALFIRST LEG THICKNESS0.060 INCHES NOMINALSECOND LEG THICKNESS0.060 INCHES NOMINALFIRST LEG WIDTH2.610 INCHES MINIMUM AND 2.650 INCHES MAXIMUMSECOND LEG STYLESQUARESECOND LEG HOLE ARRANGEMENT STYLE2 SLOTSSECOND LEG RELATIONSHIP TO FIRST LEGNOT IDENTICALFIRST LEG ANGLE90.0 DEGREES NOMINALMATERIALSTEEL COMP 1010SURFACE TREATMENTZINCSTYLE DESIGNATORANGLESECOND LEG STYLE104SECOND LEG HOLE ARRANGEMENT STYLE208

491-C-04386-000000

Unless otherwise noted, this listing is for one item per purchase.
