Condition: New – Open box

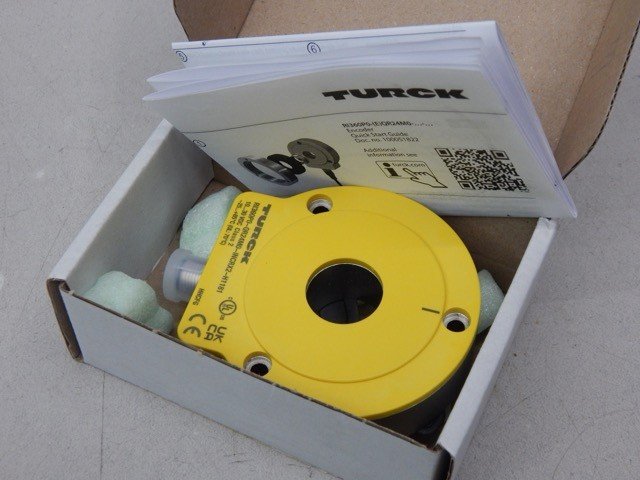

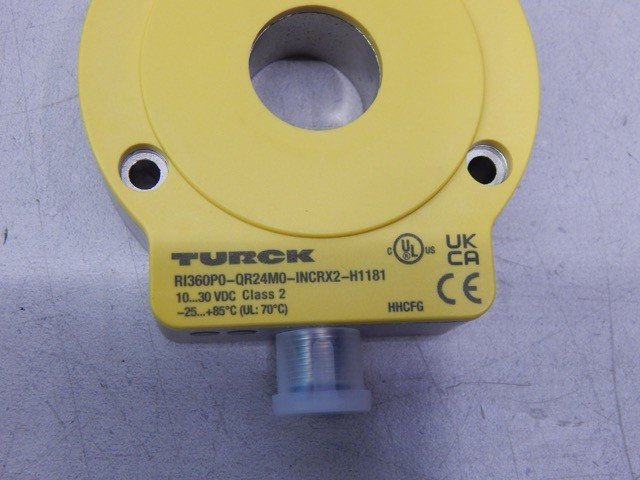

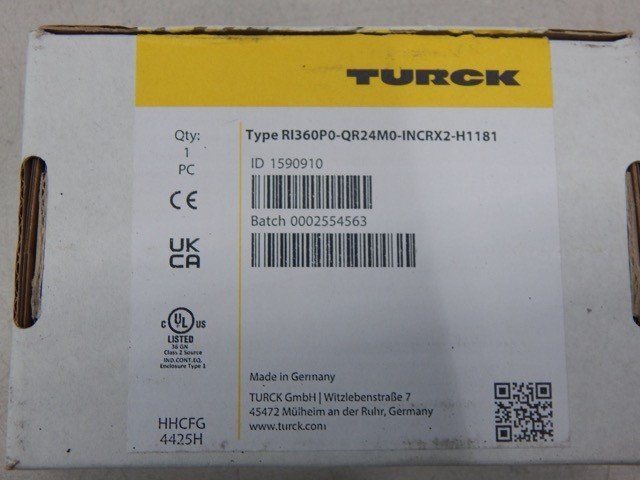

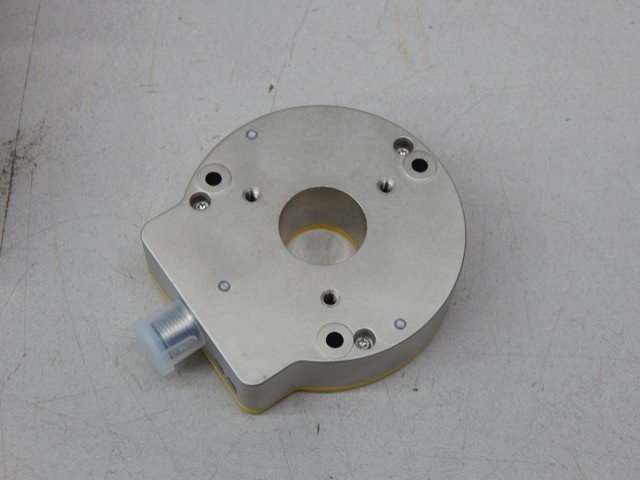

Turck 1590910, RI360P0-QR24M0-INCRX2-H1181, Encoder, Incremental, Contactless Turck 1590910, RI360P0-QR24M0-INCRX2-H1181, Encoder, Incremental, Contactless

Turck

1590910

RI360P0-QR24M0-INCRX2-H1181

Encoder, Incremental, Contactless

Contactless Encoder

Incremental: 1 … 5000 ppr

Premium Line

Ident. no.: 1590910Compact, rugged housingMany mounting possibilitiesStatus displayed via LEDImmune to electromagnetic interference1024 pulses per revolution (default)360, 512, 1000, 1024, 2048, 2500, 3600, 4096, parametr. via Easy-TeachFree parametrization of the pulse number in the range from 1 to 5000 via PACTwarePosition of z-track set via Easy-Teach Burst function, absolute angular position output incrementally per Easy-Teach pulse10…30 VDCMale M12 x 1, 8-pinPush-pull A, B, Z, A (inverse), B (inverse)Technical DataEncoder linePremium-LineTechnologyContactlessOutput typeIncrementalShaft TypeHollow shaft Shaft diameter D (mm)6, 6.35, 9.525, 10, 12, 12.7, 14, 15.875, 19.05, 20Construction size81 x 78 x 24 mmFlange typeFlange without mounting elementResolution, incremental1024  pprOperating voltage10…30 VDCOutput functionPush-Pull/HTLElectrical connectionConnector, M12 × 1Housing materialMetal/plastic, ZnAlCu1/PBT-GF30-V0Ambient temperature-25…+85 °CProtection classIP68/IP69K

415-C-Q-04327-000000

Unless otherwise noted, this listing is for one item per purchase.
