Condition: New – Open box

TACOM 7363016, 3892X1818, 3020007860213, Transmission Helical Gear M35 TACOM 7363016, 3892X1818, 3020007860213, Transmission Helical Gear M35

TACOM

7363016, 3892X1818

3020007860213

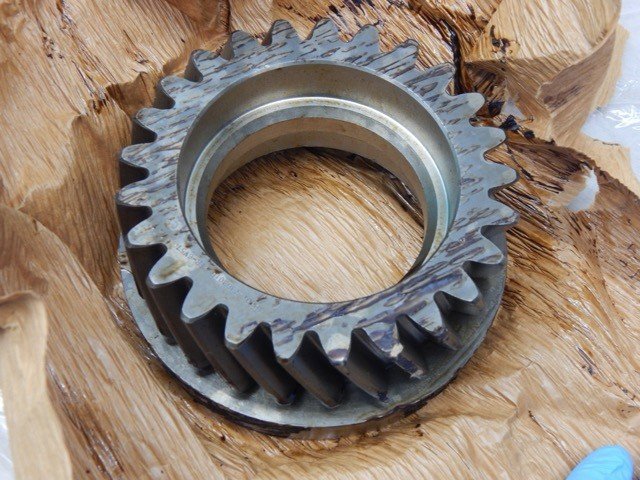

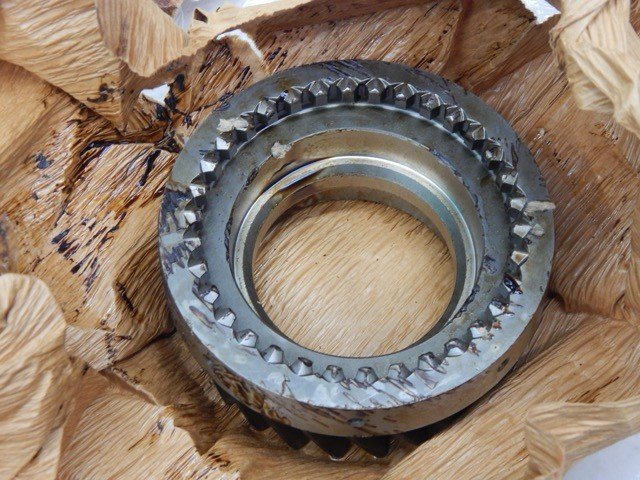

Transmission Helical Gear

M35

Technical informationNameValueBODY STYLEPLAIN, SOLIDSPLINE QUANTITY34 BOTH ENDSPITCH DIAMETER4.7414 INCHES NOMINALTEETH QUANTITY25BORE STYLEINVOLUTE SPLINE BOTH ENDSSPLINE PITCH DIAMETER4.2500 INCHES NOMINAL BOTH ENDSNOMINAL OUTSIDE DIAMETER5.179 INCHESTEETH TYPESINGLE HELIXTOOTH FORMSTANDARDFLANGE NOMINAL DIAMETER5.326 INCHESTOOTH DIRECTIONLEFTPRESSURE ANGLE18.8142 DEGREESFLANGE NOMINAL THICKNESS0.880 INCHESHELIX ANGLE22.0000 DEGREESFACE NOMINAL WIDTH1.543 INCHESBORE NOMINAL DIAMETER4.505 INCHES BOTH ENDSNOMINAL DISTANCE BETWEEN OUTER BODY FACE AND INNER FLANGE FACE1.777 INCHESHUB NOMINAL DIAMETER4.281 INCHES BETWEEN BODY AND FLANGEMATERIALSTEEL COMP 8620H OVERALLMATERIAL DOCUMENT AND CLASSIFICATION66 FED STD SINGLE MATERIAL RESPONSE OVERALLSTYLE DESIGNATORFLANGED END

423-C-04284-000000

Unless otherwise noted, this listing is for one item per purchase.
