Condition: New – Open box

TACOM 11664560, 4720001776160, M936 5-Ton Hose Assembly TACOM 11664560, 4720001776160, M936 5-Ton Hose Assembly

TACOM

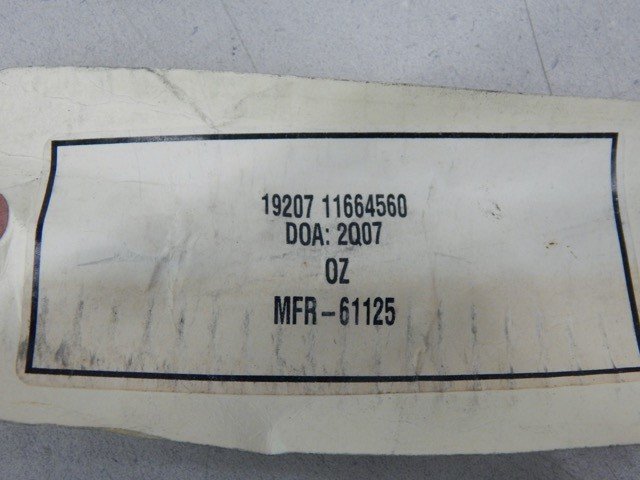

11664560

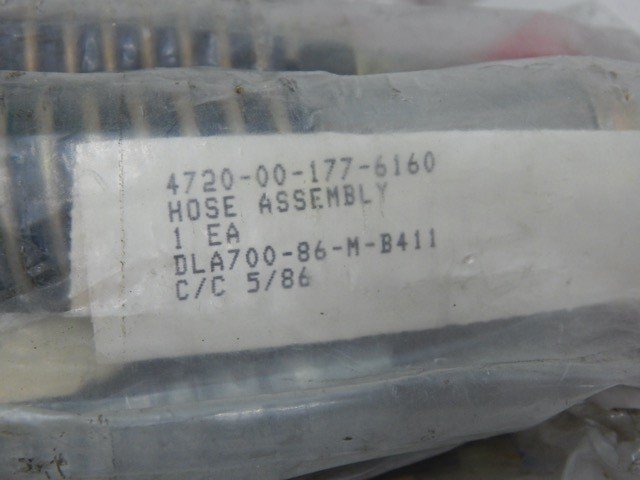

4720001776160

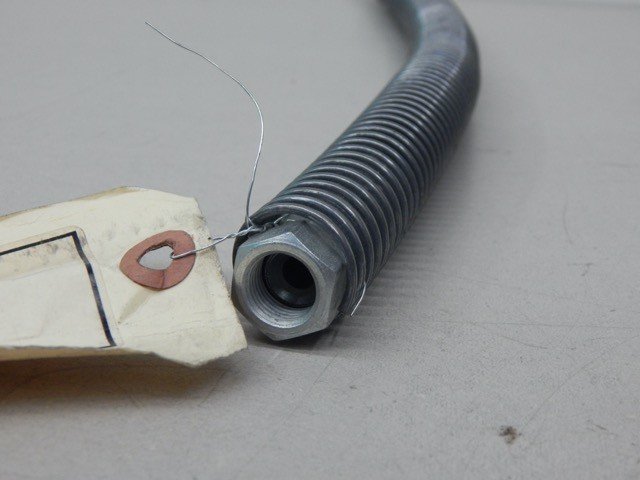

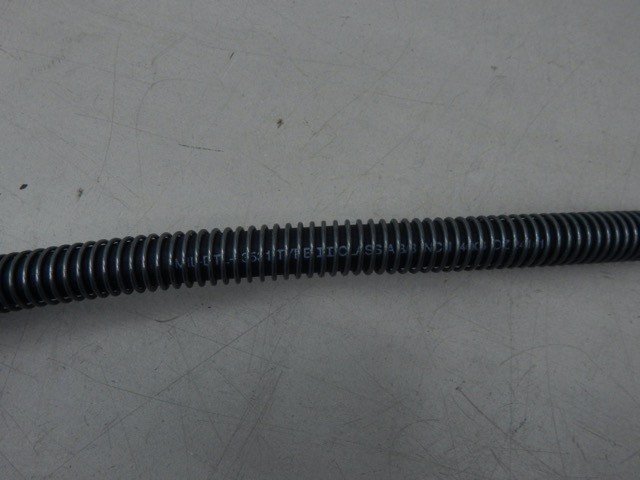

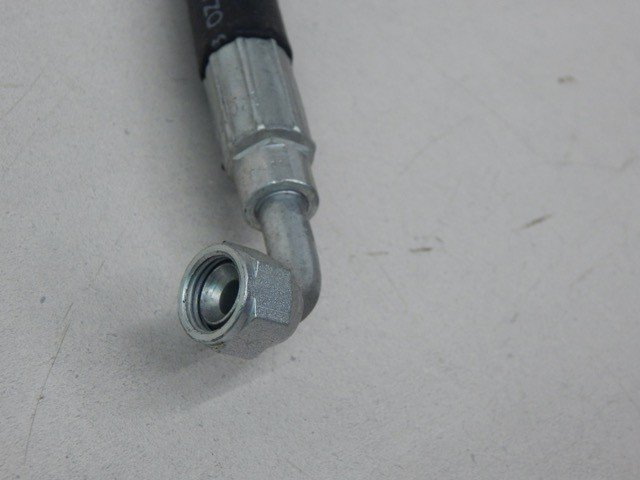

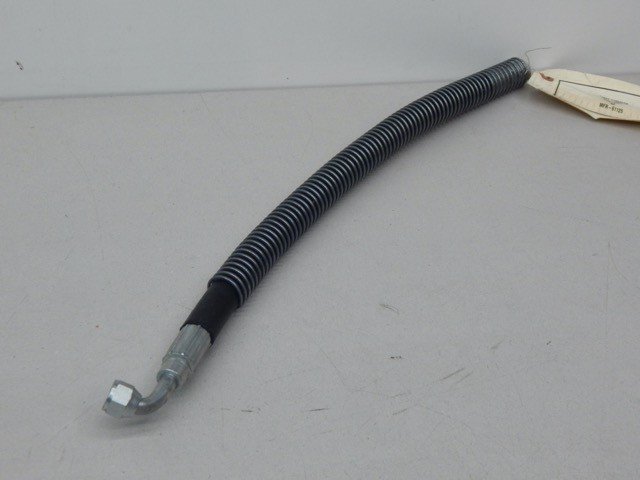

M936 5-Ton Hose Assembly

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD CLASS2B FIRST ENDTHREAD CLASS2B SECOND ENDTHREAD DIRECTIONRIGHT-HAND FIRST ENDTHREAD DIRECTIONRIGHT-HAND SECOND ENDINSIDE DIAMETER0.375 INCHES NOMINALTEMP RATING-65.0 FAHRENHEIT AND 250.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.781 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS5.000 INCHESCONNECTION STYLESWIVEL NUT FLARE FIRST ENDCONNECTION STYLESWIVEL NUT FLARE SECOND ENDEND CONNECTION DESIGNELBOW SECOND ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDCONNECTION TYPETHREADED INTERNAL TUBE SECOND ENDCONNECTION TYPETHREADED INTERNAL TUBE FIRST ENDBURST TEST PRESSURE16000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.562 INCHES FIRST ENDNOMINAL THREAD SIZE0.562 INCHES SECOND ENDOPERATING PRESSURE4000.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDSEAT ANGLE37.0 DEGREES FIRST ENDSEAT ANGLE37.0 DEGREES SECOND ENDHYDROSTATIC TEST PRESSURE8000.0 POUNDS PER SQUARE INCHFLOW ANGLE90.0 DEGREES SECOND ENDOUTER COVERING ENVIRONMENTAL PROTECTIONMILDEW RESISTANT AND OIL RESISTANTINSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH21.000 INCHES NOMINAL OVERALLMEDIA FOR WHICH DESIGNEDFUEL/OIL, HYDROCARBON SINGLE RESPONSEITEM STRUCTURAL COMPOSITIONBRAIDED STEEL WIRE FIRST LAYERITEM STRUCTURAL COMPOSITIONBRAIDED STEEL WIRE SECOND LAYERITEM STRUCTURAL COMPOSITIONMOLDED RUBBER, SYNTHETIC OUTER LAYERTHREAD SERIES DESIGNATORUNF FIRST ENDTHREAD SERIES DESIGNATORUNF SECOND END

496-C-03986-000000

Unless otherwise noted, this listing is for one item per purchase.
