Condition: New – Open box

TACOM 11644419-3, 1025001796309, Hose Assembly TACOM 11644419-3, 1025001796309, Hose Assembly

TACOM

11644419-3

1025001796309

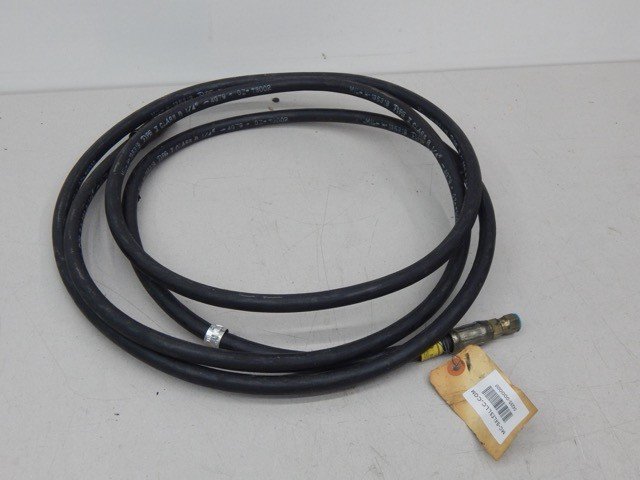

Hose Assembly

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD CLASS2B FIRST ENDTHREAD DIRECTIONRIGHT-HAND FIRST ENDINSIDE DIAMETER0.250 INCHES NOMINALTEMP RATING-65.0 FAHRENHEIT AND 200.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.600 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS4.000 INCHESEXTERIOR COLORBLACKCONNECTION STYLESWIVEL NUT FLARE FIRST ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDCONNECTION TYPETHREADED INTERNAL TUBE FIRST ENDFEATURES PROVIDEDREUSABLE END FITTINGSBURST TEST PRESSURE20000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.438 INCHES FIRST ENDOPERATING PRESSURE5000.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDSEAT ANGLE37.0 DEGREES FIRST ENDHYDROSTATIC TEST PRESSURE10000.0 POUNDS PER SQUARE INCHINSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH153.000 INCHES NOMINAL OVERALLMEDIA FOR WHICH DESIGNEDFUEL/OIL, HYDROCARBON SINGLE RESPONSEITEM STRUCTURAL COMPOSITIONBRAIDED CORROSION RESISTANT STEEL WIRE SECOND LAYERITEM STRUCTURAL COMPOSITIONBRAIDED CORROSION RESISTANT STEEL WIRE FIRST LAYERITEM STRUCTURAL COMPOSITIONMOLDED RUBBER, SYNTHETIC OUTER LAYERTHREAD SERIES DESIGNATORUNF FIRST END

423-D-04285-000000

Unless otherwise noted, this listing is for one item per purchase.
