Condition: New – Open box

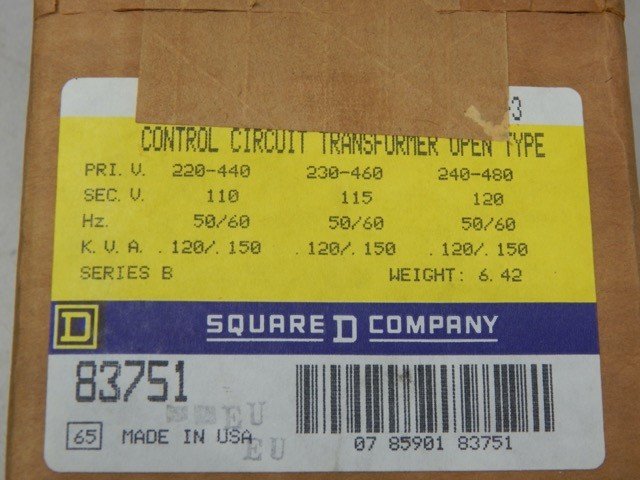

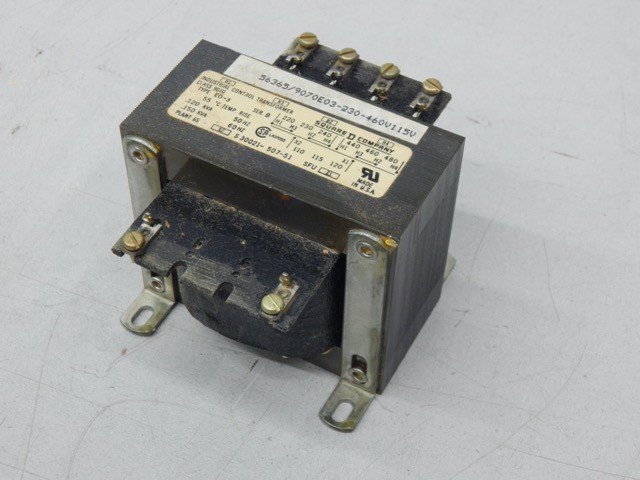

Square D 9070E03, 5950004709251, Transformer 150VA, .150KVA, 230-460V 115V Square D 9070E03, 5950004709251, Transformer 150VA, .150KVA, 230-460V 115V

Square D

9070E03

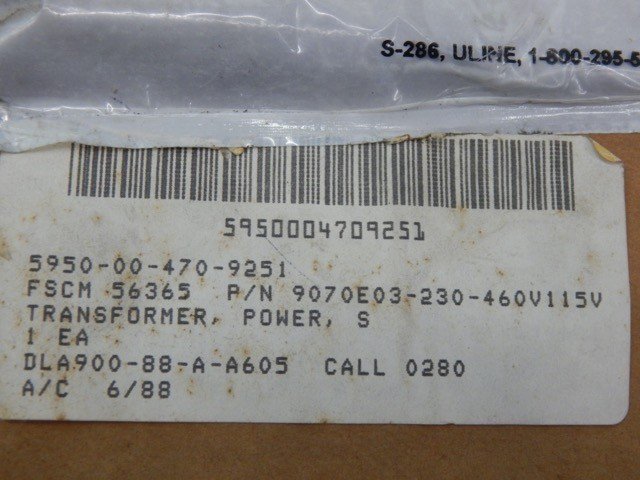

5950004709251

Transformer

150VA

.150KVA

230-460V 115V

9070E03-230-460V115V150VA60

Technical informationNameValueRELIABILITY INDICATORNOT ESTABLISHEDCENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH2.875 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUPCENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH3.125 INCHES NOMINAL SINGLE MOUNTING FACILITY SINGLE CENTER GROUPMOUNTING SLOT WIDTH0.328 INCHES NOMINAL SINGLE GROUPFREQUENCY RATING60.0 HERTZ NOMINAL SINGLE COMPONENTINPUT-OUTPUT PHASE RELATIONSHIPSINGLE PHASE TO SINGLE PHASE SINGLE COMPONENTBODY LENGTH4.656 INCHES NOMINALBODY WIDTH3.750 INCHES NOMINALBODY HEIGHT3.875 INCHES NOMINALINCLOSURE TYPEOPENMOUNTING FACILITY QUANTITY4 SINGLE GROUPMOUNTING METHODFLANGE AND SLOT SINGLE GROUPWINDING FUNCTION AND QUANTITY2 PRIMARY AND 1 SECONDARY SINGLE COMPONENTWINDING POWER RATING150.0 VOLTS-AMPERES SINGLE COMPONENT SINGLE SECONDARYWINDING OPERATING VOLTAGE115.00 AC VOLTS NOMINAL SINGLE COMPONENT SINGLE SECONDARYWINDING OPERATING VOLTAGE230.00 AC VOLTS NOMINAL SINGLE COMPONENT ALL PRIMARYTERMINAL TYPE AND QUANTITY6 TAB, SOLDER LUG

494-D-D-04036-000000

Unless otherwise noted, this listing is for one item per purchase.
