Condition: New – Open box

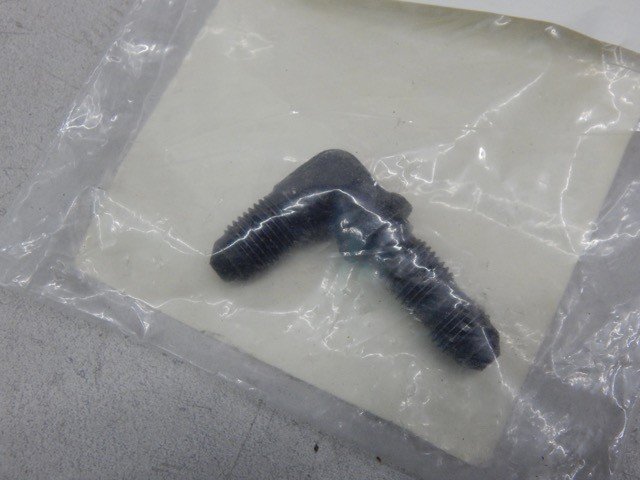

SAE AS1038-0303, 4730002313025, Elbow Tube SAE AS1038-0303, 4730002313025, Elbow Tube

SAE

AS1038-0303

4730002313025

Elbow Tube

SAE-AS4841, 4730PL0973615, AN829-3, AN833-3

Technical informationNameValueTHREAD CLASS3A ALL ENDSTHREAD CLASS3A FIRST END BULKHEADEND ITEM IDENTIFICATIONGRUMMAN AEROSPACE CORP A10 AIRCRAFTCONNECTION STYLEFLARED (TUBE) ALL ENDSLEG LENGTH0.891 INCHES NOMINAL SECOND ENDLEG LENGTH1.438 INCHES NOMINAL FIRST ENDCONNECTION TYPETHREADED EXTERNAL TUBE ALL ENDSNOMINAL THREAD SIZE0.375 INCHES ALL ENDSNOMINAL THREAD SIZE0.375 INCHES FIRST END BULKHEADSEAT ANGLE37.0 DEGREES ALL ENDSNOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED0.188 INCHES ALL ENDSMATERIALSTEEL OVERALLSURFACE TREATMENTCADMIUM OVERALLSURFACE TREATMENT DOCUMENT AND CLASSIFICATIONQQ-P-416,TYPE 1,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALLTHREAD SERIES DESIGNATORUNIFIED NATIONAL JOINT FINE (UNJF) ALL ENDSTHREAD SERIES DESIGNATORUNIFIED NATIONAL JOINT FINE (UNJF) FIRST END BULKHEADSPECIFICATION/STANDARD DATA88044-AN833 GOVERNMENT STANDARD

490-C-X-04395-000000

Unless otherwise noted, this listing is for one item per purchase.
