Condition: New – Open box

–

Parker Hannifin

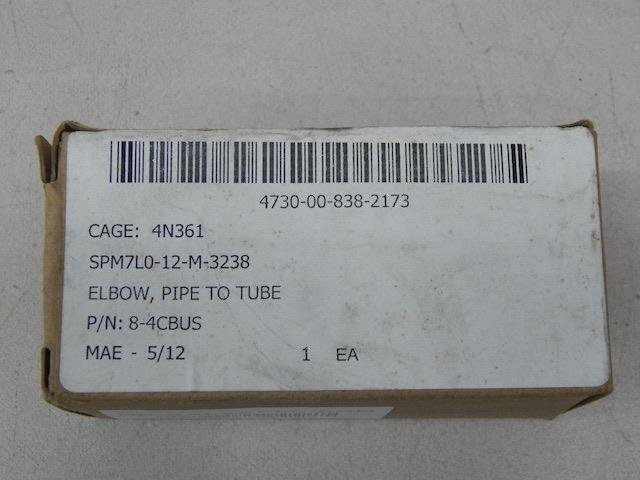

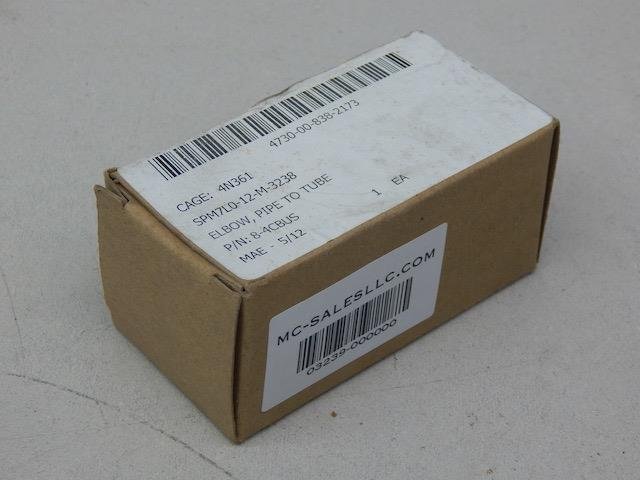

8-4CBUS
4730008382173

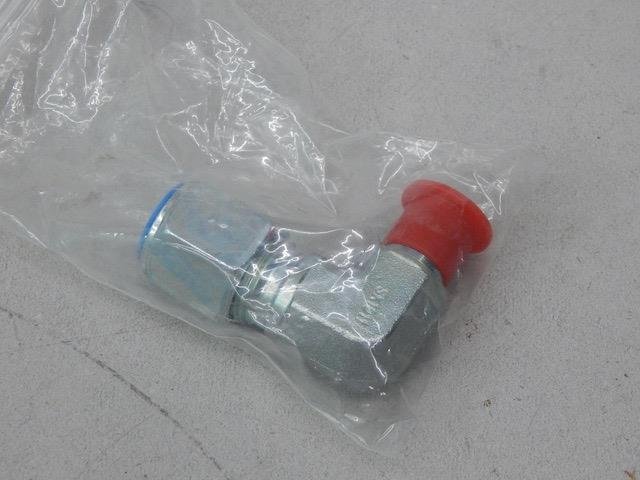

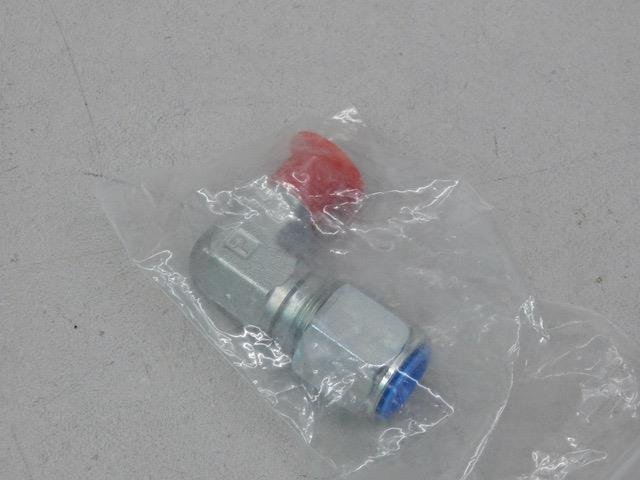

Pipe To Tube Elbow

  Name Value NOMINAL PIPE SIZE ACCOMMODATED 0.250 INCHES 2ND END THREAD CLASS 2A 1ST END CONNECTION STYLE FLARELESS (TUBE) 1ST END CONNECTION STYLE INVERTED FLARE (PIPE) 2ND END LEG LENGTH 1.100 INCHES MINIMUM 2ND END AND 1.142 INCHES MAXIMUM 2ND END LEG LENGTH 1.195 INCHES MINIMUM 1ST END AND 1.236 INCHES MAXIMUM 1ST END CONNECTION TYPE THREADED EXTERNAL PIPE 2ND END CONNECTION TYPE THREADED EXTERNAL TUBE 1ST END NOMINAL THREAD SIZE 0.250 INCHES 2ND END NOMINAL THREAD SIZE 0.750 INCHES 1ST END SEAT ANGLE 12.0 DEGREES 1ST END SEAT ANGLE 30.0 DEGREES 2ND END FLOW ANGLE 90.0 DEGREES NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED 0.500 INCHES 1ST END MATERIAL STEEL COMP 12L14 ELBOW OR STEEL ELBOW MATERIAL STEEL SLEEVE MATERIAL STEEL NUT MEDIA FOR WHICH DESIGNED HYDRAULIC FLUID SINGLE RESPONSE SURFACE TREATMENT OXIDE OVERALL THREAD SERIES DESIGNATOR NPTF 2ND END THREAD SERIES DESIGNATOR UNF 1ST END FURNISHED ITEMS AND QUANTITY 1 SHORT COUPLING NUT WITH SLEEVE NONDEFINITIVE SPEC/STD DATA 2330A TYPE

Unless otherwise noted, this listing is for one item per purchase…
