Condition: New – Open box

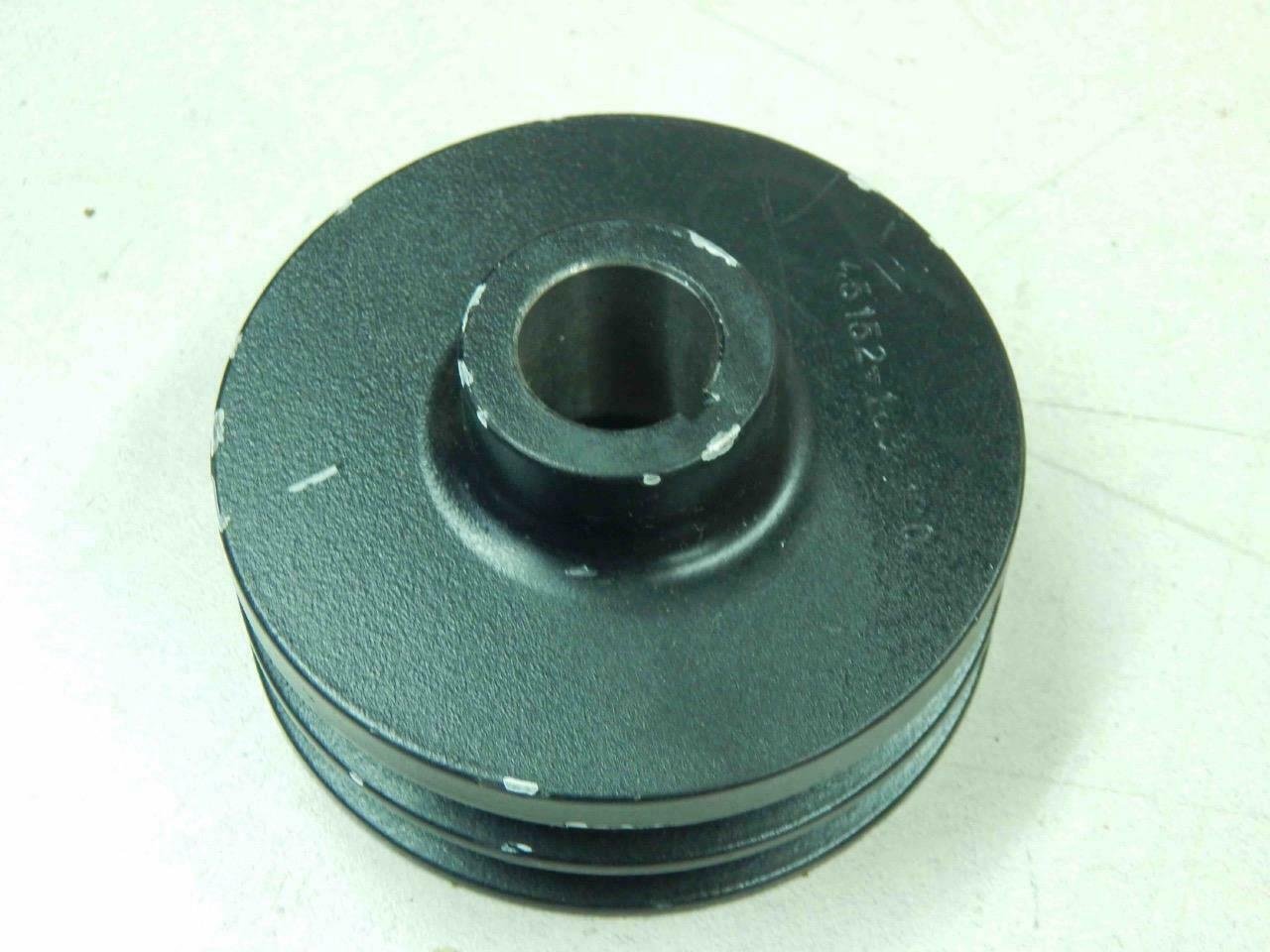

Oshkosh 1698110 3020013379342 Pulley, Groove –

Oshkosh
1698110
3020013379342
Pulley,Groove

Sold Separately

Name Value COUNTERBORE DIAMETER 1.440 INCHES NOMINAL COUNTERBORE DEPTH 0.700 INCHES NOMINAL GROOVE DEPTH 0.440 INCHES NOMINAL GROOVE WIDTH 0.380 INCHES NOMINAL OUTSIDE DIAMETER 3.750 INCHES NOMINAL OVERALL LENGTH 2.000 INCHES NOMINAL KEYWAY WIDTH 0.158 INCHES NOMINAL BORE DIAMETER 0.875 INCHES NOMINAL BORE LENGTH 2.000 INCHES NOMINAL DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY 0.516 INCHES NOMINAL END ITEM IDENTIFICATION 2320-01-318-9902 HET (HEAVY EQUIPMENT TRANSPORTER); FAMILY OF HEMTT VEHICLES (HEAVY EXPANDED MOBILITY TACTICAL TRUCKS) V GROOVE ANGLE IN DEG 36.0 PITCH DIAMETER 3.745 INCHES NOMINAL MATERIAL AND LOCATION STEEL OVERALL FACE WIDTH 1.310 INCHES NOMINAL DESIGN FORM PLAIN BORE TYPE STRAIGHT BEARINGS NOT INCLUDED GROOVE QUANTITY 2 COUNTERBORE FEATURE INCLUDED COUNTERBORE LOCATION BB END KEYING FACILITY INCLUDED KEYING FACILITY TYPE KEYWAY SPLIT HUB FEATURE NOT INCLUDED LIGHTENING HOLE NOT INCLUDED INTEGRAL COOLING VANE NOT INCLUDED GROOVE SHAPE V BORE FEATURE INCLUDED PROTRUDING HUB CHARACTERISTIC PLAIN HUB END OUTSIDE DIAMETER AND LOCATION 1.400 INCHES NOMINAL AA END DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION 0.690 INCHES NOMINAL AA END QUANTITY 1 PROPRIETARY CHARACTERISTICS PACS STYLE DESIGNATOR PLAIN END ITEM IDENTIFICATION 2320-01-318-9902 STYLE DESIGNATOR A2 PLAIN

Unless otherwise noted, this listing is for one item per purchase

BIN-0831-01276-000000
