Condition: New – Open box

–

Naval Systems
2589698
3040011247795

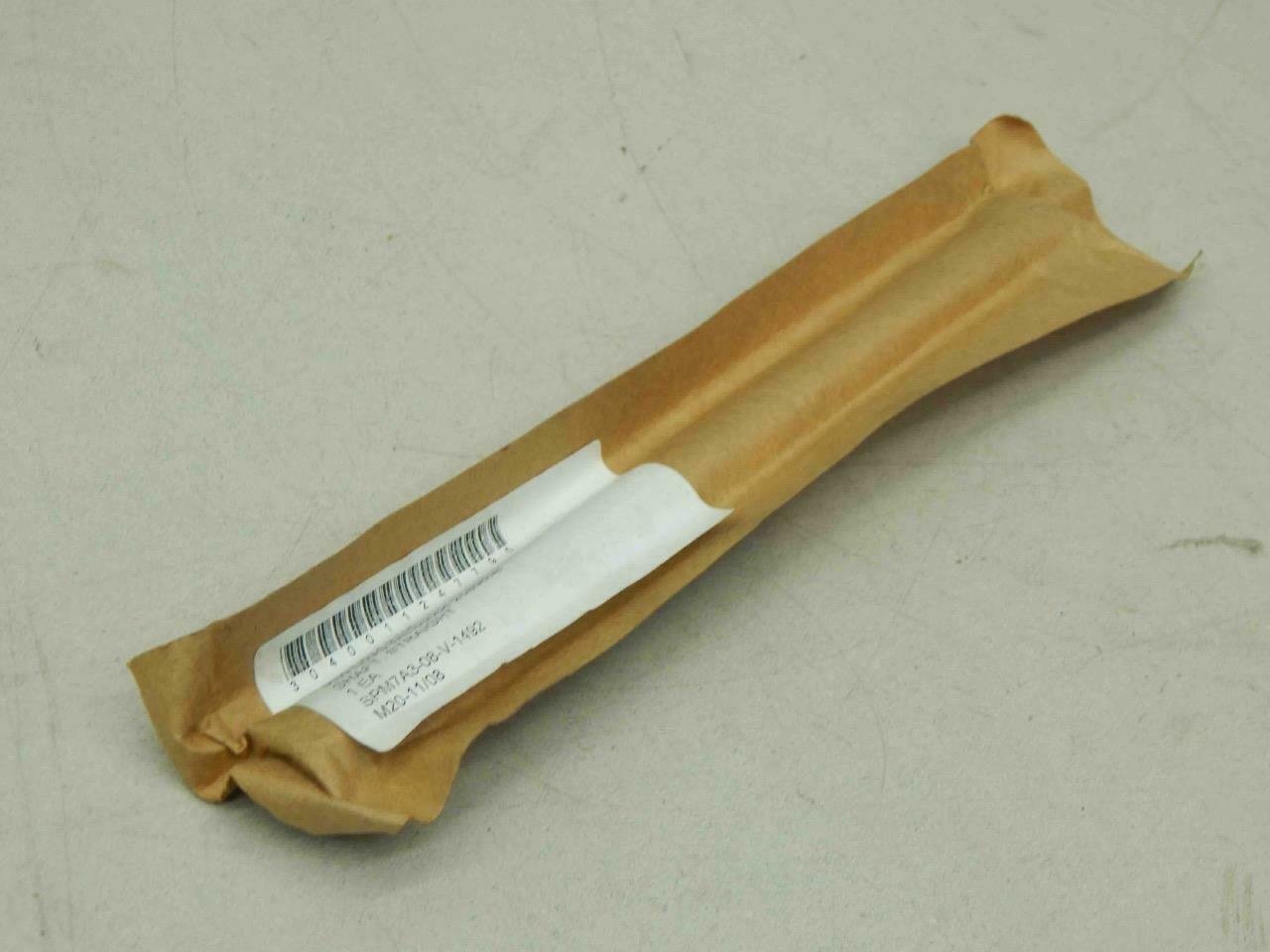

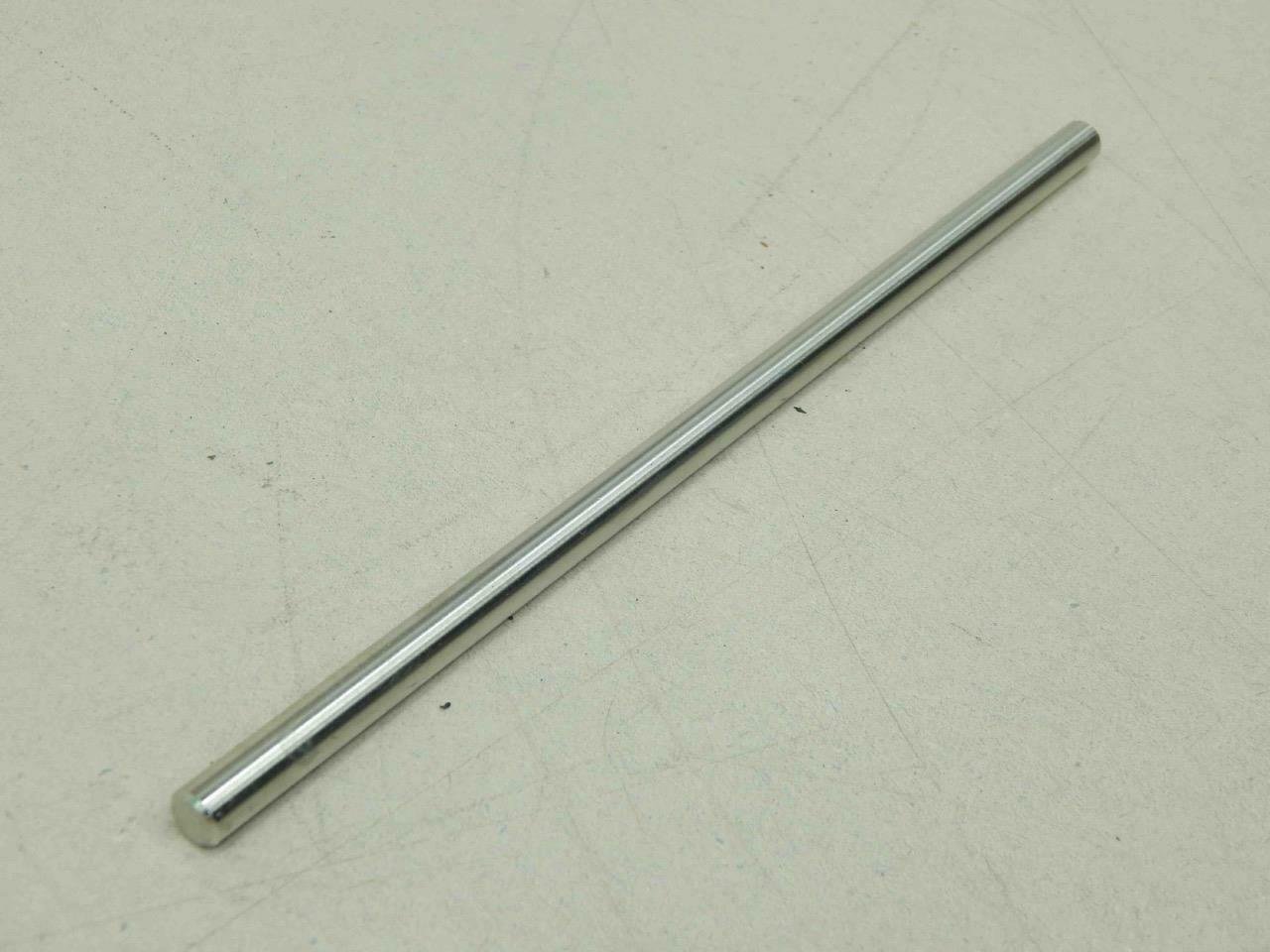

Straight Shaft

Name Value FIRST END STYLE WOODRUFF KEYWAY END SIMILARITY NOT IDENTICAL SECOND END STYLE WOODRUFF KEYWAY OVERALL LENGTH 10.172 INCHES NOMINAL FIRST END KEYWAY WIDTH 0.0928 INCHES MINIMUM AND 0.0943 INCHES MAXIMUM FIRST END EXTERNAL KEYWAY LENGTH 0.312 INCHES NOMINAL FIRST END DISTANCE FROM KEYWAY CENTER TO END 0.375 INCHES NOMINAL FIRST END DIAMETER 0.3725 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM SECOND END KEYWAY WIDTH 0.0928 INCHES MINIMUM AND 0.0943 INCHES MAXIMUM SECOND END EXTERNAL KEYWAY LENGTH 0.312 INCHES NOMINAL SECOND END DISTANCE FROM KEYWAY CENTER TO END 0.875 INCHES NOMINAL SECOND END DIAMETER 0.3725 INCHES MINIMUM AND 0.3735 INCHES MAXIMUM SURFACE FINISH 63.0 MICROINCHES MATERIAL STEEL COMP 304L OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 316L MATERIAL DOCUMENT AND CLASSIFICATION QQ-S-763,COND A FED SPEC ALL MATERIAL RESPONSES

Unless otherwise noted, this listing is for one item per purchase

106-B-F-01555-000000
