Condition: New – Open box

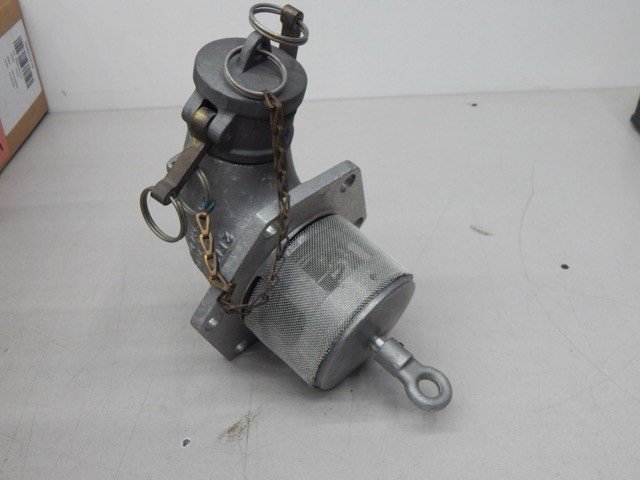

Morrison 803ALC1000-AV, 4820011502927, Valve Assembly (13217E7096, 380AMQ2IN) Morrison 803ALC1000-AV, 4820011502927, Valve Assembly (13217E7096, 380AMQ2IN)

Morrison

803ALC1000-AV

4820011502927

Valve Assembly

13217E7096, 380AMQ2IN

Technical informationNameValueEND ITEM IDENTIFICATIONUSE ON TANK AND PUMP UNIT-NSN 4930-00-426-9960;NSN 4930-01-130-7281SPECIAL FEATURESCONSISTS OF THE FOLLOWING ITEMS: HOOK,CHAIN,BRASS,1 EA;COUPLING HALF,2 IN. SIZE,ALUMINUM,1 EA;GASKET,2 IN. SIZE,RUBBER,1 EA;PLUNGER DISC NUT,P/N AP403,CAGE(79515),1 EA;PLUNGER DISC,P/N P431,CAGE(79515),1 EA;PLUNGER DISC HOLDER,P/N AP404,CAGE(79515),1 EA;SCREEN,MESH,P/N P420,CAGE(79515),1 EA;SETSCREW,1/4-20 UNC-3A X7/16 LG,4 EA;BODY,P/NP401-2E,CAGE(79515),1 EA;PLUNGER,SPRING,P/N P414,CAGE(79515),1 EA;BONNET,P/NAP402A,CAGE(79515),1 EA;PLUNGER,STEM,P/N AP425A,CAGE(79515),1 EA;PLUNGER,BALE,P/N A609,CAGE(79515),1 EA;AVERAGE DISCHARGE RATE 133 GPM AT 30 PSIG;VALVESHALL NOT LEAK FROM 0-30 PSI IN CLOSEDPOSITIONGENERAL CHARACTERISTICS ITEM DESCRIPTIONCONSISTS OF THE FOLLOWING ITEMS: HOOK,CHAIN,BRASS,1 EA;COUPLING HALF,2 IN. SIZE, ALUMINUM,1 EA;GASKET,2 IN. SIZE, RUBBER,1 EA;PLUNGER DISC NUT,P/N AP403,CAGE(79515),1 EA;PLUNGER DISC,P/N P431,CAGE(79515),1 EA;PLUNGER DISC HOLDER,P/N AP404,CAGE(79515),1 EA;SCREEN,MESH,P/N P420,CAGE(79515),1 EA;SETSCREW,1/4-20 UNC-3A X7/16 LG,4 EA; BODY,P/NP401-2E,CAGE(7951 5),1 EA;PLUNGER,SPRING,P/N P414,CAGE(79515),1 EA;BONNET,P/NAP402A,CAGE( 79515),1 EA;PLUNGER,STEM,P/N AP425A,CAGE(79515),1 EA;PLUNGER,BALE,P/N A609,CAGE(79515),1 EA;AVERAGE DISCHARGE RATE 133 GPM AT 30 PSIG;VALVESHALL NOT LEAK FROM 0-30 PSI IN CLOSEDPOSITION

423-B-04354-000000

Unless otherwise noted, this listing is for one item per purchase.
