Condition: New
–
Military

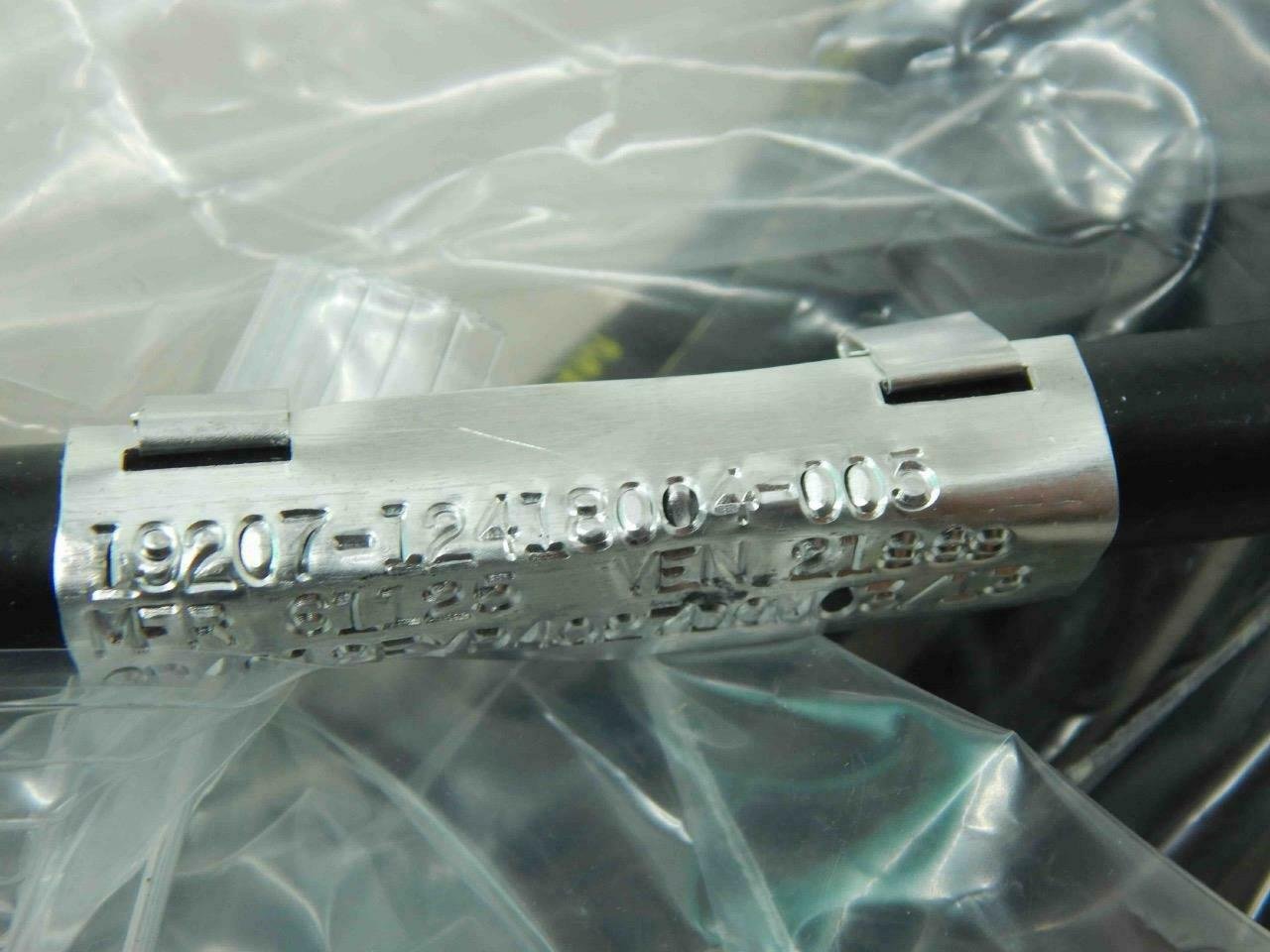

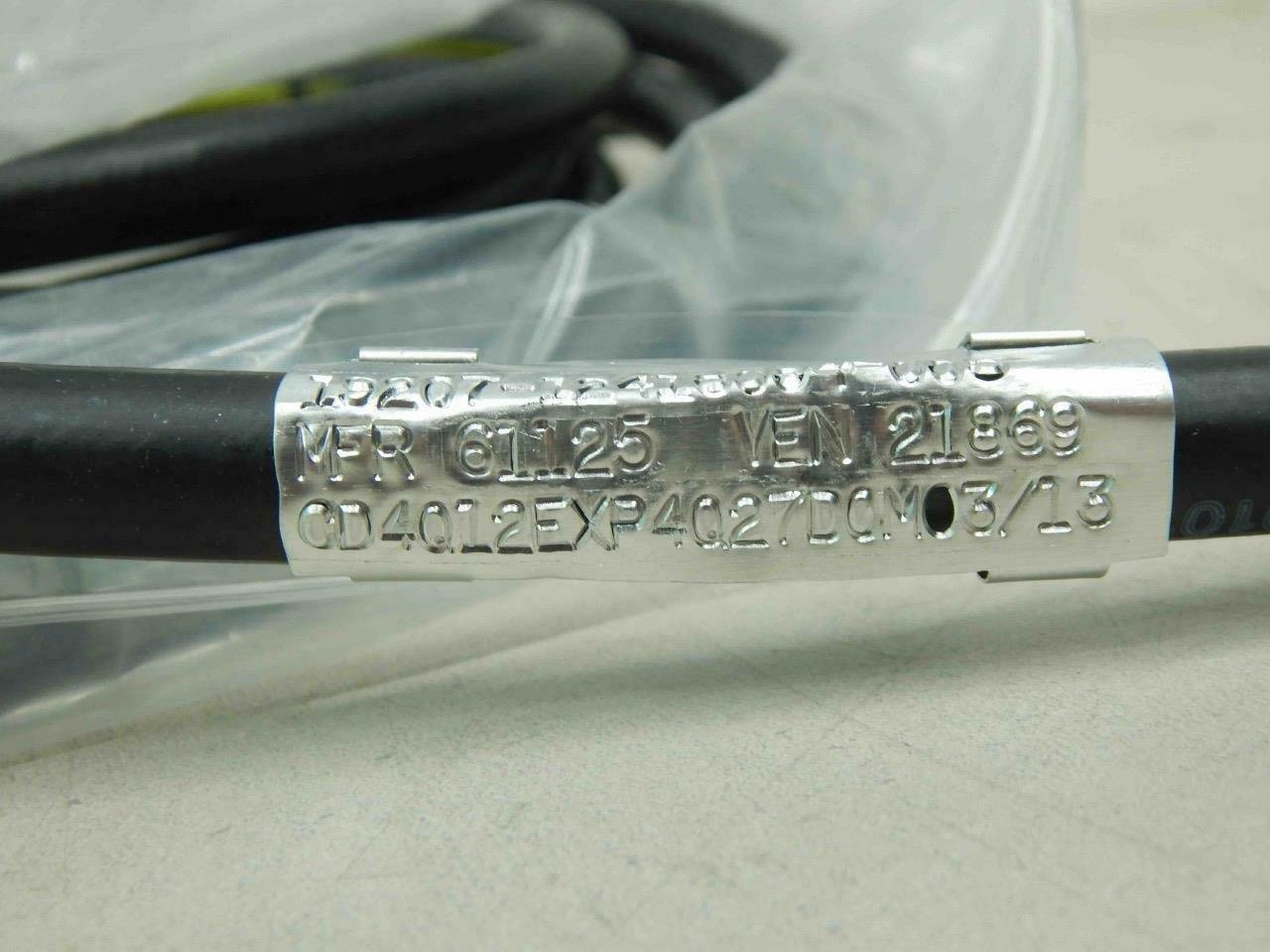

12418004-005
4720014705759

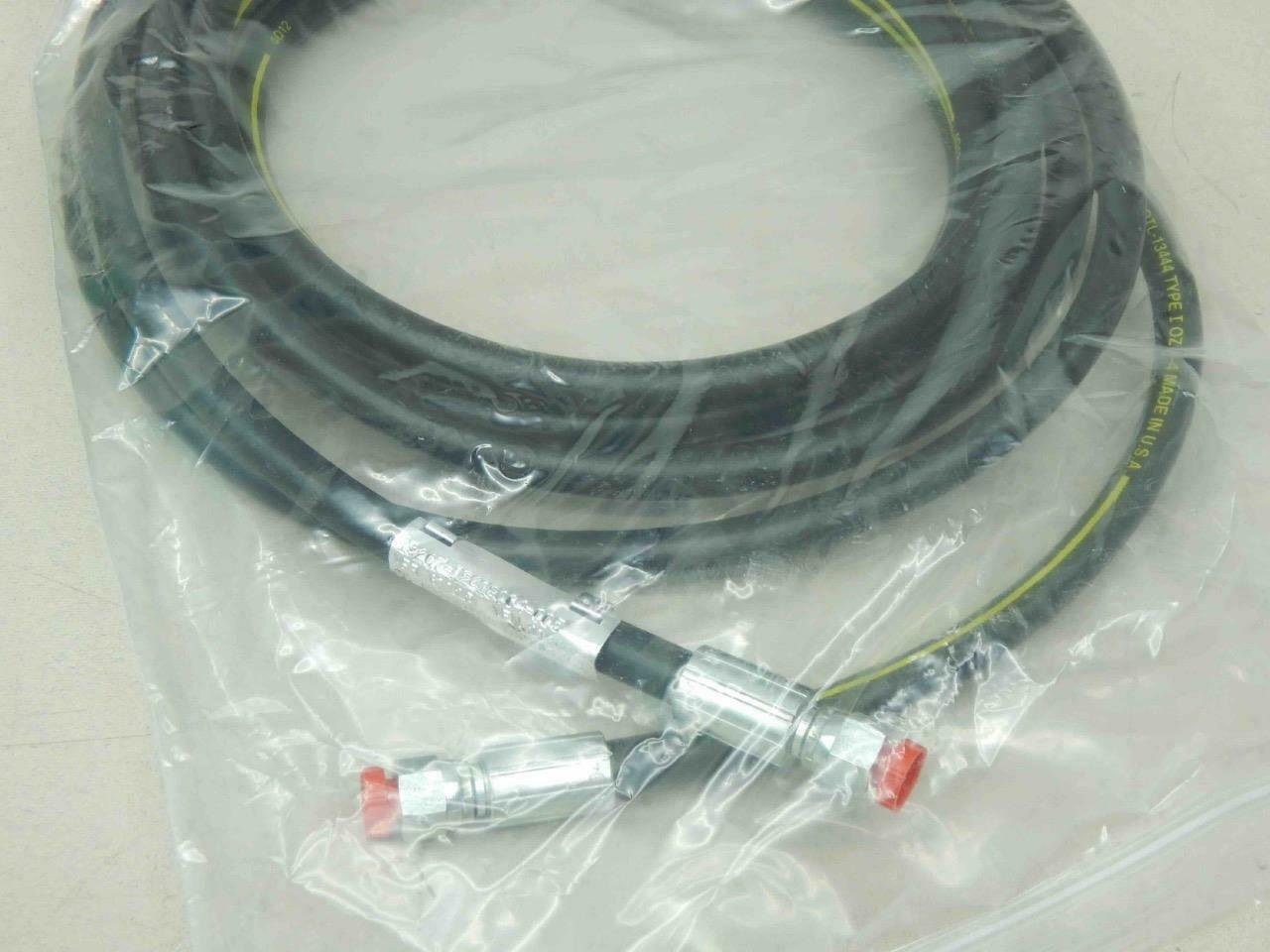

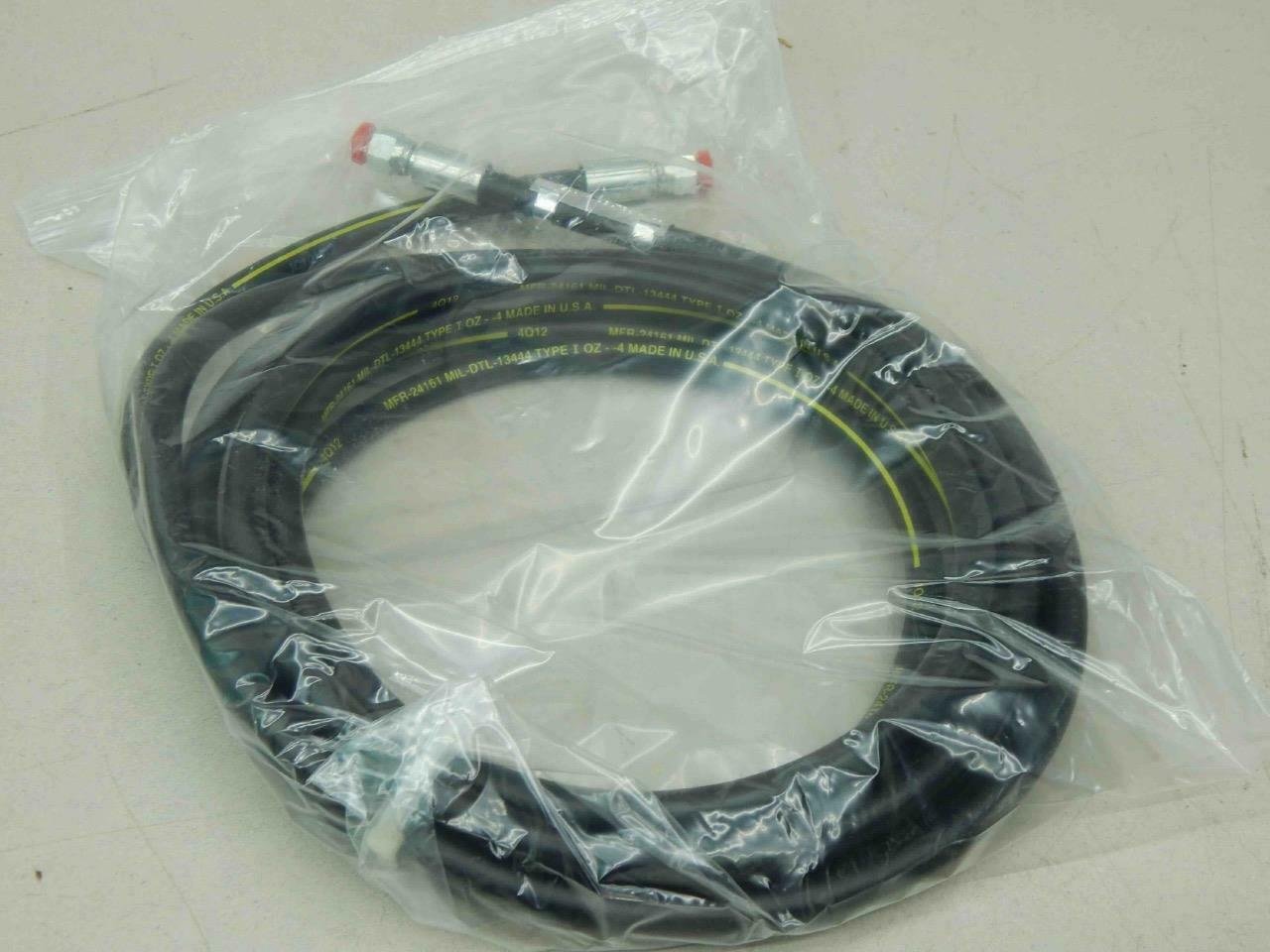

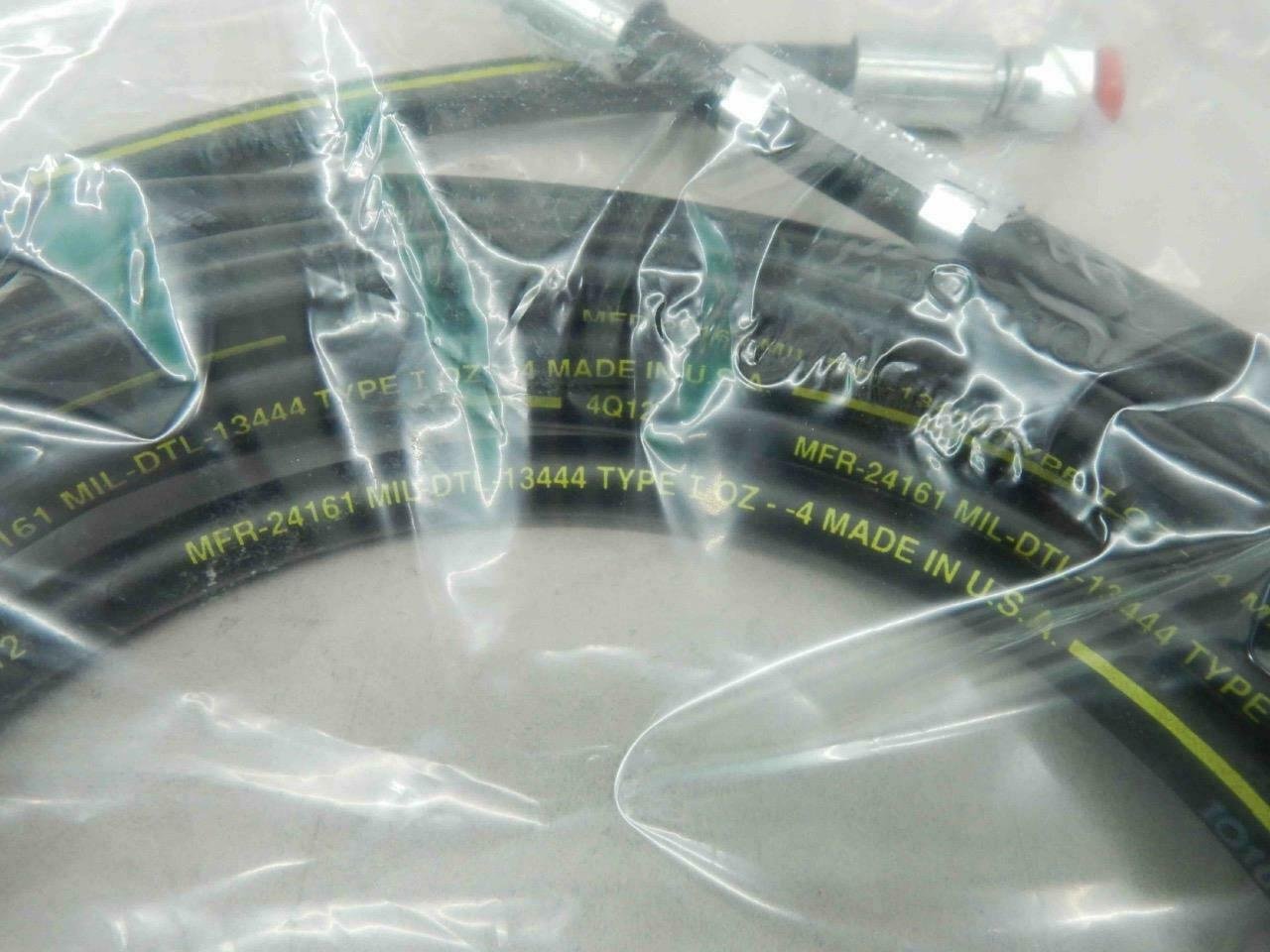

Hose Assembly
Name Value CROSS-SECTIONAL SHAPE STYLE ROUND THREAD CLASS 2B 1ST END THREAD DIRECTION RIGHT-HAND 1ST END INSIDE DIAMETER 0.171 INCHES MINIMUM AND 0.205 INCHES MAXIMUM TEMP RATING -65.0 DEG FAHRENHEIT AND 400.0 DEG FAHRENHEIT SINGLE RESPONSE OUTSIDE DIAMETER 0.278 INCHES MINIMUM AND 0.324 INCHES MAXIMUM MINIMUM INSIDE BENDING RADIUS 2.000 INCHES END ITEM IDENTIFICATION TRUCK, CARGO, P/N 87T0072, NSN 2320-01-447-3895 CONNECTION STYLE SWIVEL NUT FLARE 1ST END END CONNECTION DESIGN STRAIGHT 1ST END CONNECTION TYPE THREADED INTERNAL TUBE 1ST END BURST TEST PRESSURE 10000.0 POUNDS PER SQUARE INCH LAYER COMPOSITION AND LOCATION 1ST LAYER MOLDED POLYTETRAFLUOROETHYLENE AND OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE MAXIMUM OPERATING PRESSURE 1500.0 POUNDS PER SQUARE INCH NOMINAL THREAD SIZE 0.4375 INCHES 1ST END SEAT ANGLE 37.0 DEGREES 1ST END HYDROSTATIC TEST PRESSURE 5000.0 POUNDS PER SQUARE INCH INSIDE SURFACE CONDITION SMOOTH MEASURING METHOD AND LENGTH 226.000 INCHES MINIMUM OVERALL AND 228.000 INCHES MAXIMUM OVERALL MEDIA FOR WHICH DESIGNED HYDRAULIC FLUID AND HYDRAULIC FLUID, WATER BASE SINGLE RESPONSE THREAD SERIES DESIGNATOR UNF 1ST END REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS MATERIAL WILL BE IN ACCORDANCE WITH NAVICP, ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS
Unless otherwise noted, this listing is for one item per purchase
125-C-02021-000000
