Condition: New – Open box

–

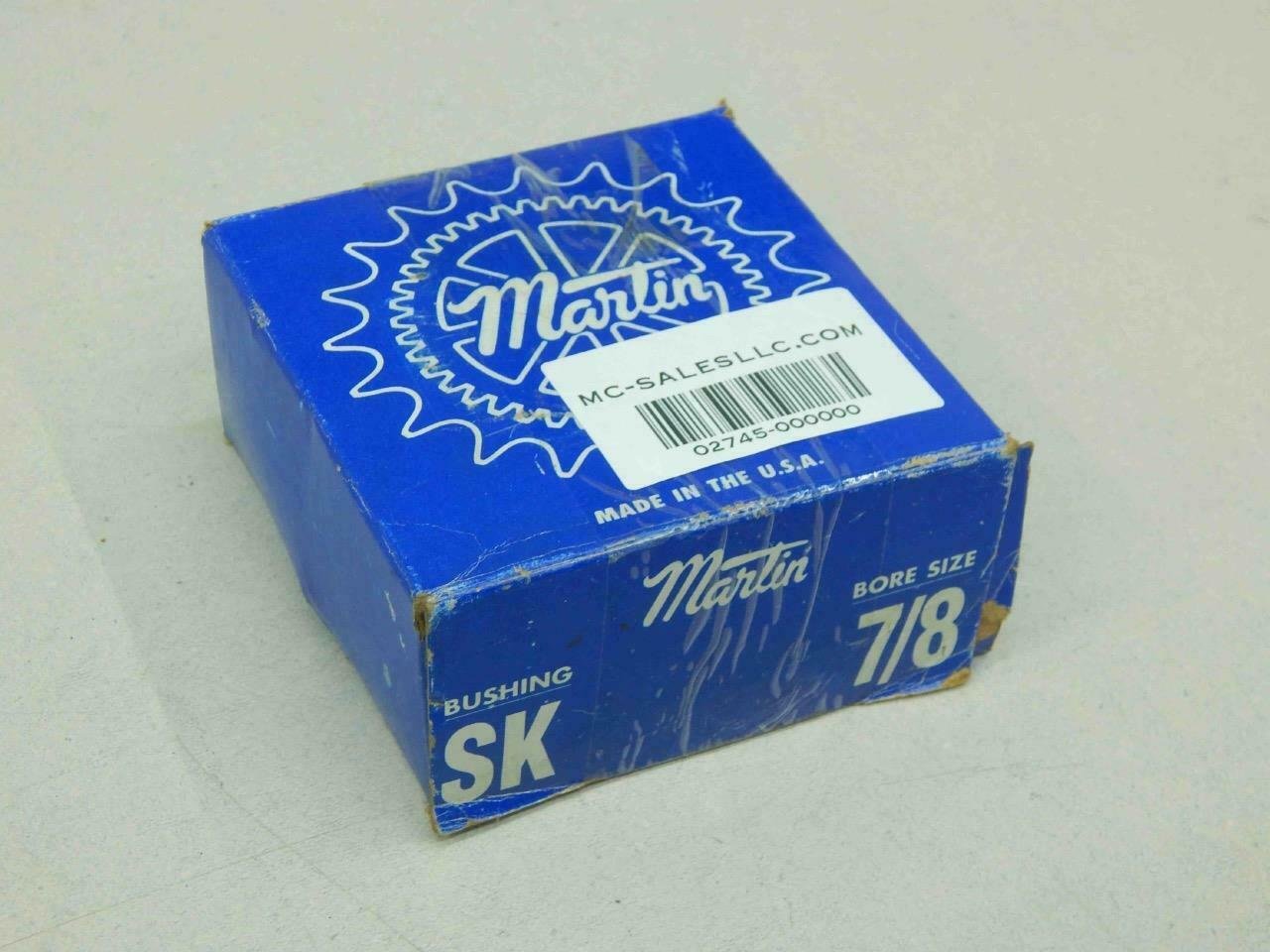

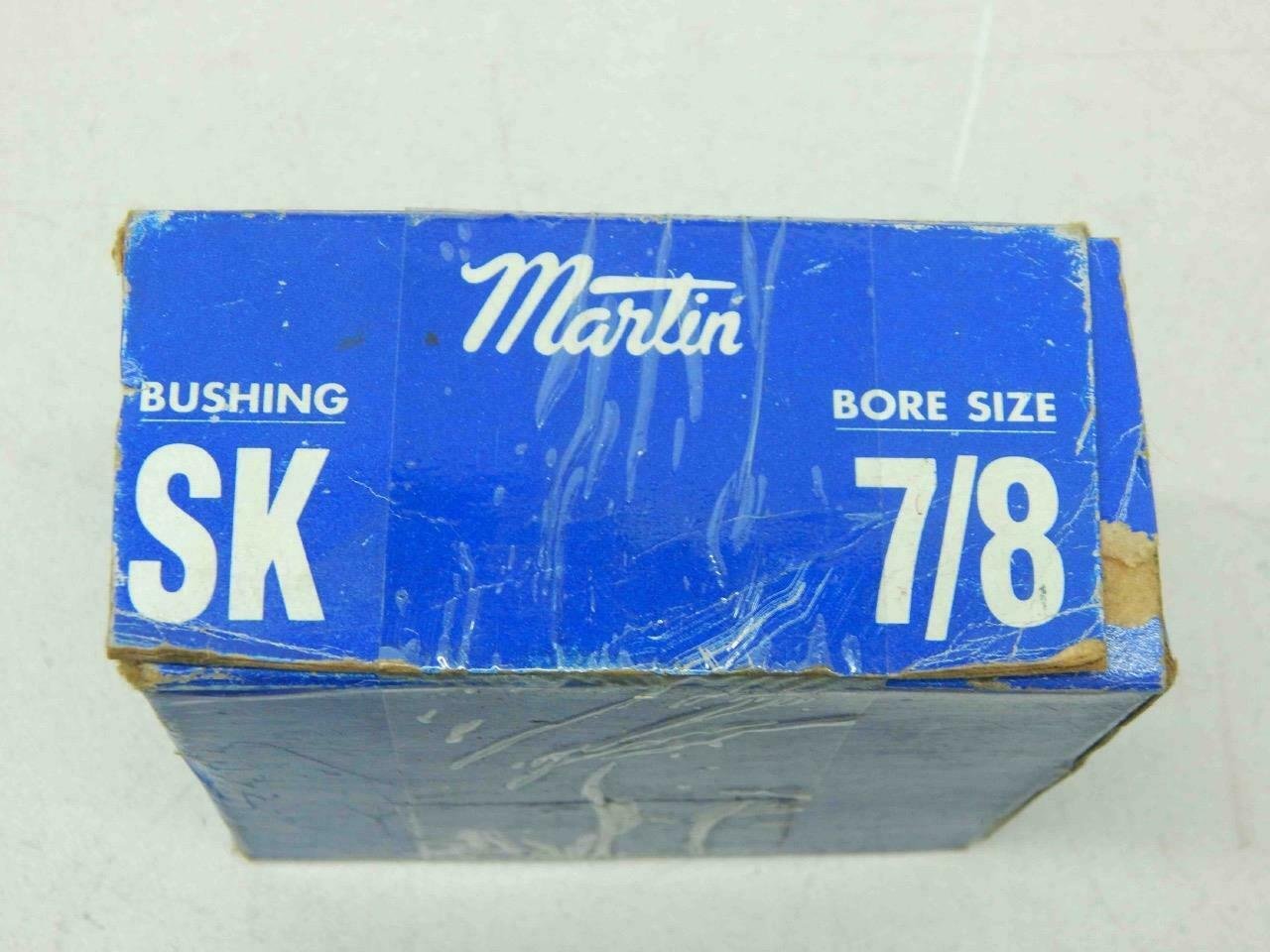

Martin
SK 7/8 Bore Size
Bushing

Martin Sprocket & Gear Martin SK 7/8

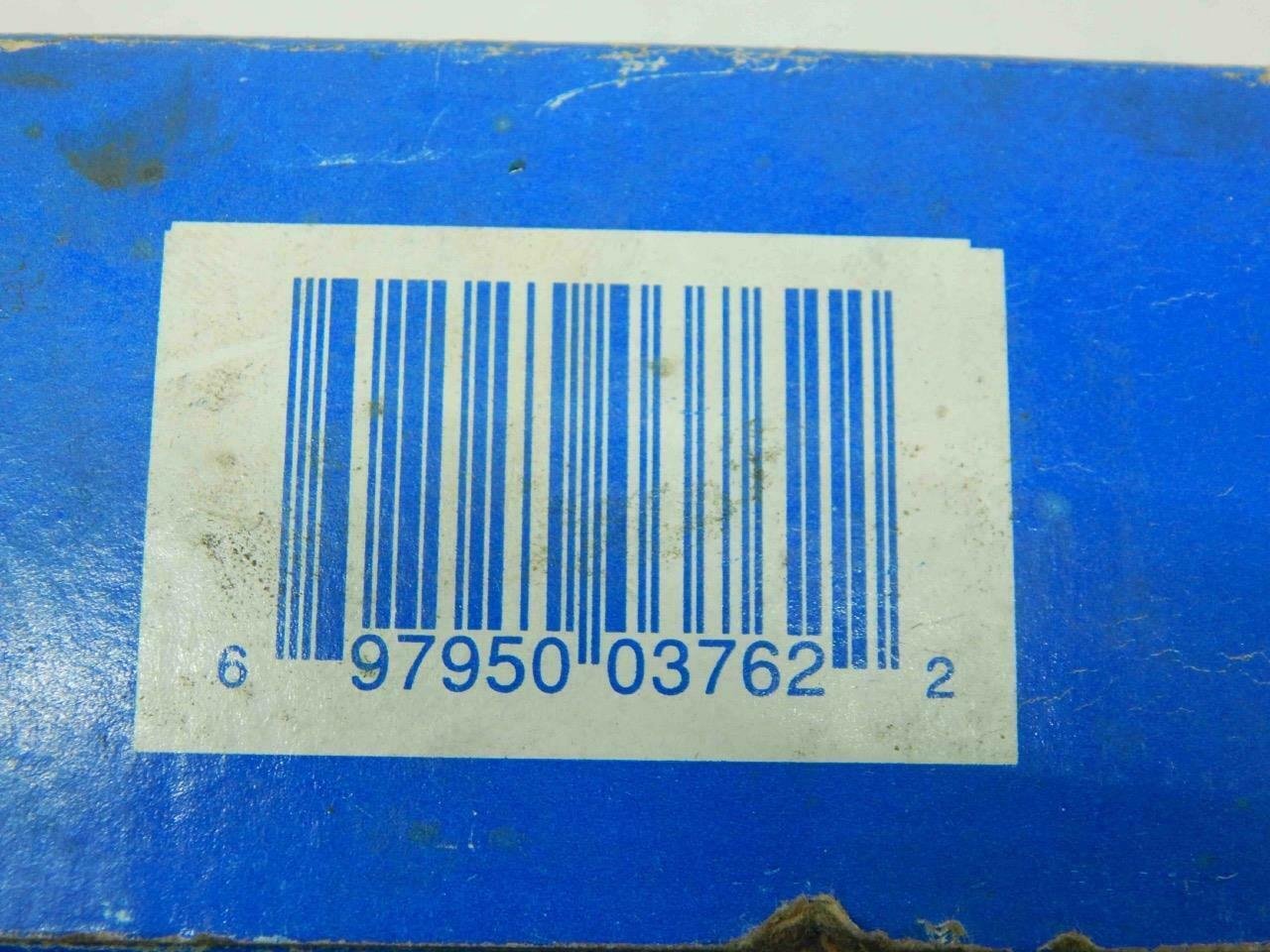

UPC: 697950037622 | UNSPSC: 31171605 | GTIN:
Bushings > Shaft Bushings > QD Bushings
Martin QD Bushing, Standard, 7/8 in Bore Dia, 2.812 in Barrel Dia, 4-1/2 in Hub Dia, 3.312 in Bolt Circle, 3-7/8 in Flange Dia, 0.563 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 2 in Screw, 7000 in-lb, 1.938 in Overall Length, 3/32 x 3/16 in Keyway, Steel
Features:
Size SK bushing
QD (quick detachable) bushings are designed for conventional mounting or reverse mounting
These bushings have a flange
Specs:
Bolt Circle Diameter: 3.312 in
Number of Bolt Holes: 3
Barrel Diameter: 2.812 in
Torque Rating: 7000 in-lb
Flange Thickness: 0.563 in
Flange Diameter: 3-7/8 in
Keyway Size: 3/32 x 3/16 in
Hub Diameter: 4-1/2 in
Screw Size: 5/16-18 x 2 in
Bore Diameter: 7/8 in
Material: Steel
Overall Length: 1.938 in
Type: Standard

Unless otherwise noted, this listing is for one item per purchase

149-B-02745-000000
