Condition: New – Open box

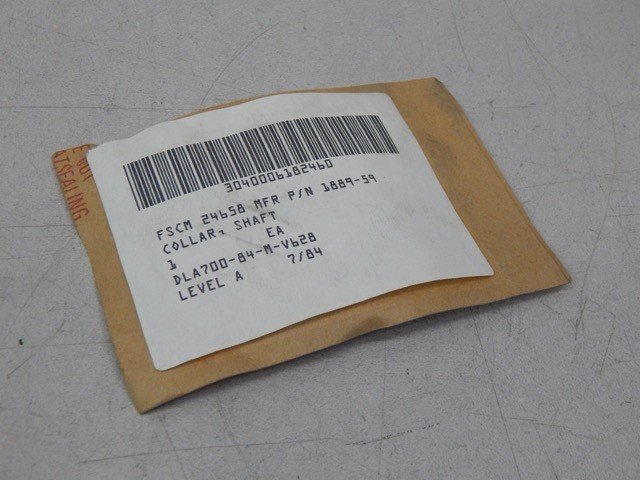

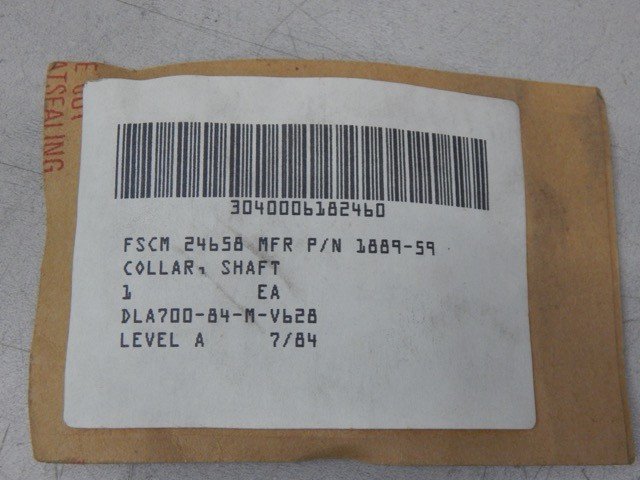

General Regulator Corp 1889–59, 3040006182460, Shaft Collar General Regulator Corp 1889–59, 3040006182460, Shaft Collar

General Regulator Corp

1889–59

3040006182460

Shaft Collar

Technical informationNameValueOUTSIDE DIAMETER1.125 INCHES NOMINALTHICKNESS0.312 INCHES NOMINALBORE DIAMETER0.5625 INCHES NOMINALSECURING HOLE QUANTITY3ANGLE BETWEEN CENTERLINES OF SECURING HOLES IN DEG90.0SCREW THREAD SERIES DESIGNATOR AND LOCATIONALL HOLES UNCSECURING HOLE TYPE AND LOCATIONTHREADED ALL HOLESNOMINAL THREAD SIZE AND LOCATION0.190 INCHES 1ST HOLE0.164 INCHES 2ND HOLE0.164 INCHES 3RD HOLEMATERIALSTEEL COMP 1018MATERIAL DOCUMENT AND CLASSIFICATIONFED STD 66 FED STD SINGLE MATERIAL RESPONSE ORAISI 1018 ASSN STD SINGLE MATERIAL RESPONSE ORSAE 1018 ASSN STD SINGLE MATERIAL RESPONSESURFACE TREATMENTCADMIUMSTYLE DESIGNATORPLAIN ROUNDFSC APPLICATION DATAELECTRICAL AND ELECTRONIC PROPERTIES MEASURING AND TESTING INSTRUMENTS

413-C-K-04294-000000

Unless otherwise noted, this listing is for one item per purchase.
