Condition: New – Open box

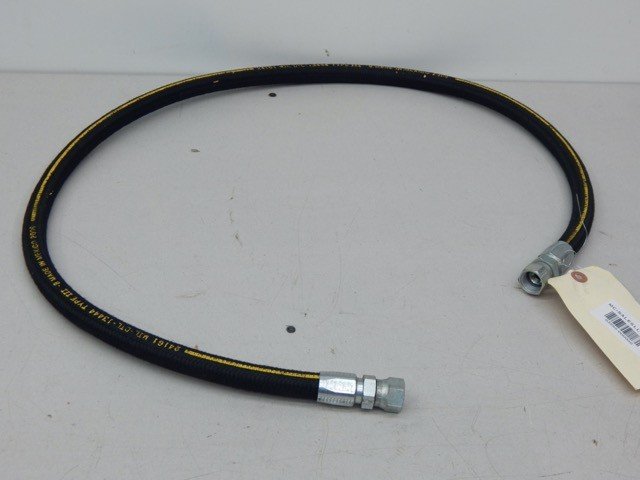

ECHELON MS52103Z080544R 4720012427754 Non-Metallic Hose Assembly ECHELON MS52103Z080544R 4720012427754 Non-Metallic Hose Assembly
ECHELON

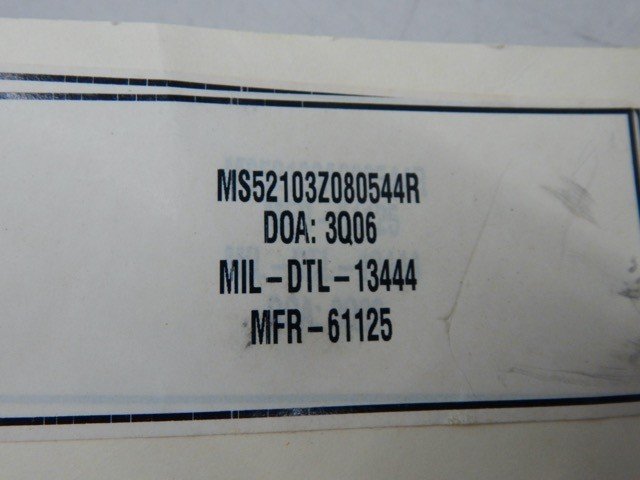

MS52103Z080544R
4720012427754
Non-Metallic Hose Assembly
ALT MPN

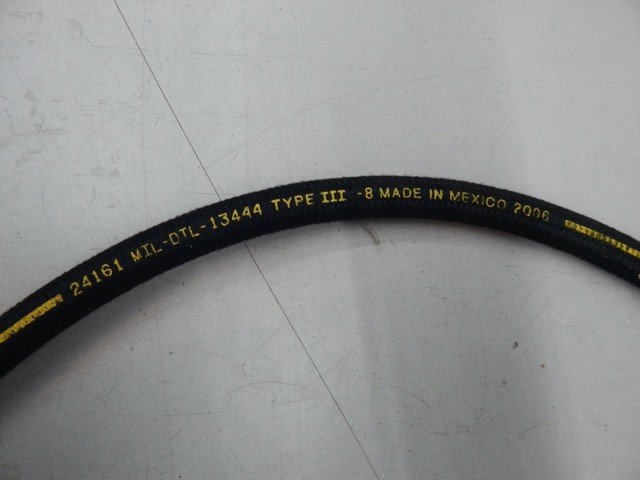

MIL-DTL-13444, MS52103Z-080560R, 44808N-608608-05600, 243001-8-0544
FA5783HHH0553, FA5783HHH0567, 243001-8-0560

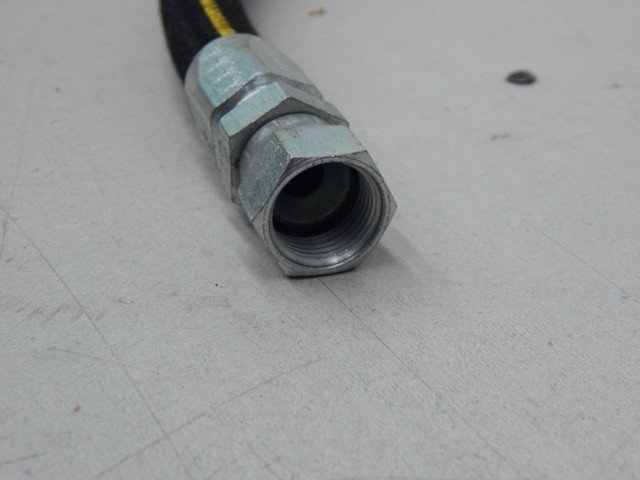

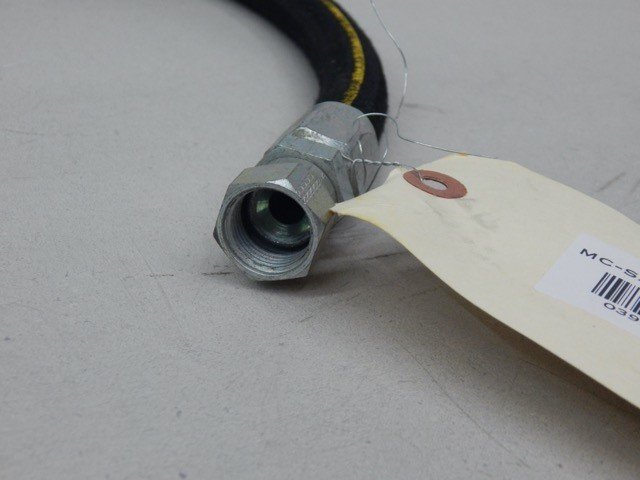

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD CLASS3B FIRST ENDTHREAD DIRECTIONRIGHT-HAND FIRST ENDINSIDE DIAMETER0.406 INCHES NOMINALTEMP RATING-55.0 FAHRENHEIT AND 300.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.734 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS4.625 INCHESEND ITEM IDENTIFICATION2350-00-808-7100CONNECTION STYLESWIVEL NUT FLARE FIRST ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDCONNECTION TYPETHREADED INTERNAL TUBE FIRST ENDFEATURES PROVIDEDREUSABLE END FITTINGSBURST TEST PRESSURE4000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.750 INCHES FIRST ENDOPERATING PRESSURE1000.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDSEAT ANGLE37.0 DEGREES FIRST ENDHYDROSTATIC TEST PRESSURE2000.0 POUNDS PER SQUARE INCHOUTER COVERING ENVIRONMENTAL PROTECTIONFUEL RESISTANT AND MILDEW RESISTANT AND OIL RESISTANT AND OZONE RESISTANT AND VIBRATION RESISTANTVACUUM IN TORR50.8INSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH56.875 INCHES NOMINAL OVERALLMEDIA FOR WHICH DESIGNEDFUEL/OIL, HYDROCARBON SINGLE RESPONSEITEM STRUCTURAL COMPOSITIONBRAIDED CORROSION RESISTANT STEEL WIRE SECOND LAYERITEM STRUCTURAL COMPOSITIONBRAIDED TEXTILE YARN FIRST LAYERITEM STRUCTURAL COMPOSITIONRUBBER IMPREGNATED BRAIDED FABRIC OUTER LAYERTHREAD SERIES DESIGNATORUNIFIED NATIONAL JOINT FINE (UNJF) FIRST END
494-C-M-03995-000000
Unless otherwise noted, this listing is for one item per purchase.
