Condition: New – Open box

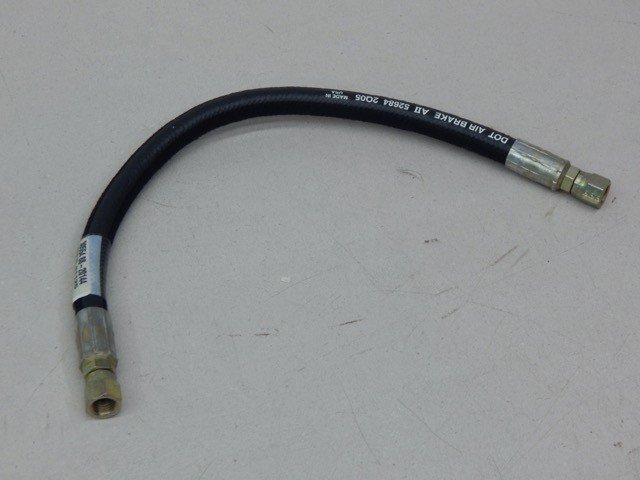

Eaton Aeroquip 88-20144, 4720013670007, MEP, Non-Metallic Hose Assembly Eaton Aeroquip 88-20144, 4720013670007, MEP, Non-Metallic Hose Assembly
Eaton Aeroquip

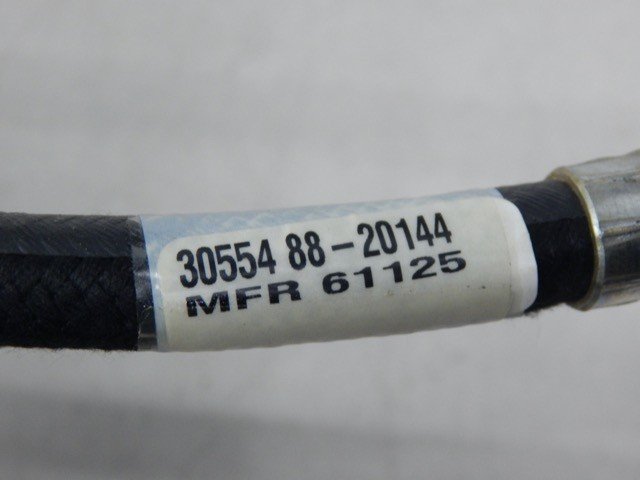

88-20144

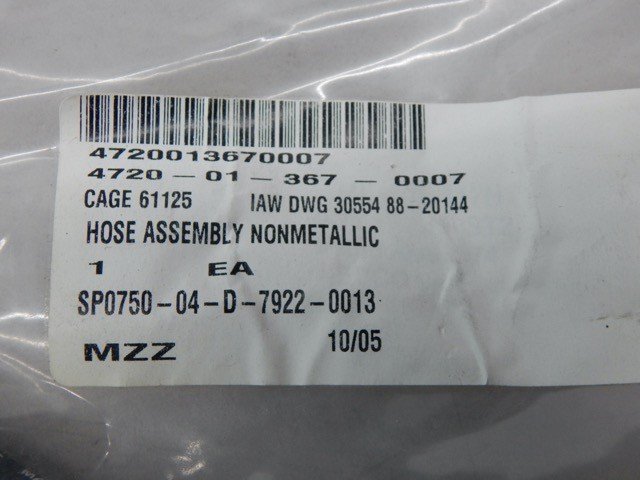

4720013670007
MEP
Non-Metallic Hose Assembly
ALT MPN
4C5C-3-4FJX-3-4FJX-16, 2130606-4-4-4-16.00, 243074-4S-0160
Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD CLASS2B 1ST ENDTHREAD DIRECTIONRIGHT-HAND 1ST ENDINSIDE DIAMETER0.188 INCHES NOMINALTEMP RATING-45.0 DEG FAHRENHEIT AND 302.0 DEG FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.500 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS3.000 INCHESCONNECTION STYLESWIVEL NUT FLARE 1ST ENDEND CONNECTION DESIGNSTRAIGHT 1ST ENDCONNECTION TYPETHREADED INTERNAL TUBE 1ST ENDBURST TEST PRESSURE12000.0 POUNDS PER SQUARE INCHLAYER COMPOSITION AND LOCATION1ST LAYER BRAIDED STEEL WIRE AND 2ND LAYER BRAIDED POLYESTER CORD AND OUTER LAYER MOLDED RUBBER, SYNTHETICMAXIMUM OPERATING PRESSURE3000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.438 INCHES 1ST ENDSEAT ANGLE37.0 DEGREES 1ST ENDHYDROSTATIC TEST PRESSURE6000.0 POUNDS PER SQUARE INCHINSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH16.000 INCHES NOMINAL OVERALLPROPRIETARY CHARACTERISTICSPACSTHREAD SERIES DESIGNATORUNF 1ST ENDCROSS-SECTIONAL SHAPE STYLE1 ROUNDTEMP RATING-45.0 DEG FAHRENHEIT AND 302.0 DEG FAHRENHEITFIRST END CONNECTION TYPETHREADED INTERNAL TUBEFIRST END STYLE DESIGNATORC3 SWIVEL NUT FLAREFIRST END THREAD CLASS2BFIRST END THREAD DIRECTIONRIGHT-HANDFIRST END SEAT ANGLE IN DEG37.0INNER CONVEYING TUBE MATERIALRUBBER, NITRILEEXTERIOR COLORANY ACCEPTABLEFIRST END CONNECTION DESIGNSTRAIGHTSECOND END RELATIONSHIP WITH FIRST ENDIDENTICALFIRST END SWIVEL ACTION CAPABILITYNOT INCLUDEDLAYER COMPOSITION AND LOCATION1ST LAYER BRAIDED STEEL WIRELAYER COMPOSITION AND LOCATION2ND LAYER BRAIDED POLYESTER CORDLAYER COMPOSITION AND LOCATIONOUTER LAYER MOLDED RUBBER, SYNTHETICFIRST END FITTING/COMPONENT AND MATERIALCOMPLETE FITTING STEELFIRST END THREAD SERIES DESIGNATORUNFFIRST END NOMINAL THREAD SIZE0.438 INCHES
494-D-D-03980-000000
Unless otherwise noted, this listing is for one item per purchase.
