Condition: New – Open box

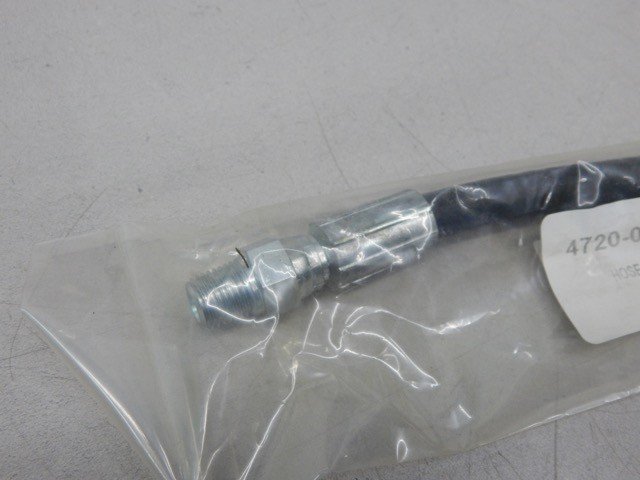

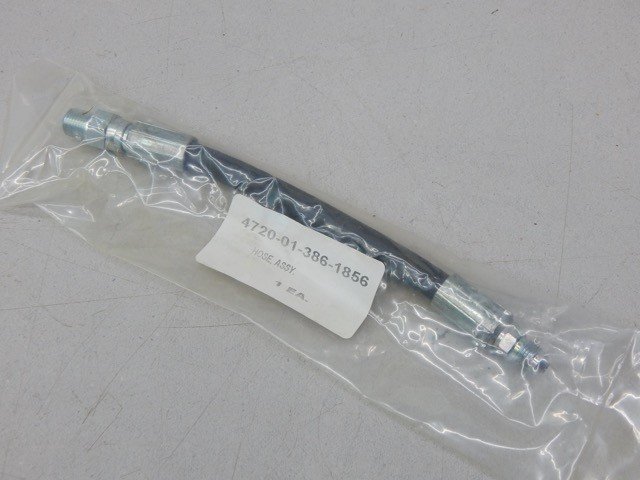

Eaton 00904E-504-J04-00963, 4720013861856, Hose Eaton 00904E-504-J04-00963, 4720013861856, Hose

Eaton

00904E-504-J04-00963

4720013861856

Hose

88-22113-2, 00904F-504-J04-00963

Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD DIRECTIONRIGHT-HAND FIRST ENDINSIDE DIAMETER0.250 INCHES NOMINALTEMP RATING-40.0 FAHRENHEIT AND 200.0 FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.500 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS2.500 INCHESEXTERIOR COLORNATURALEND ITEM IDENTIFICATION6115-01-274-7389CONNECTION STYLEPLAIN FIRST ENDEND CONNECTION DESIGNSTRAIGHT FIRST ENDCONNECTION TYPETHREADED EXTERNAL PIPE FIRST ENDBURST TEST PRESSURE1600.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.250 INCHES FIRST ENDOPERATING PRESSURE400.0 POUNDS PER SQUARE INCH (PSI) MAXIMUM LOCATION NOT OTHERWISE SPECIFIEDHYDROSTATIC TEST PRESSURE800.0 POUNDS PER SQUARE INCHVACUUM IN TORR20.0INSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH9.630 INCHES NOMINAL OVERALLITEM STRUCTURAL COMPOSITIONBRAIDED FIBER FIRST LAYERITEM STRUCTURAL COMPOSITIONMOLDED RUBBER, CHLOROPRENE OUTER LAYERTHREAD SERIES DESIGNATORNPTF FIRST END

414-C-Q-04173-000000

Unless otherwise noted, this listing is for one item per purchase.
