Condition: New – Open box

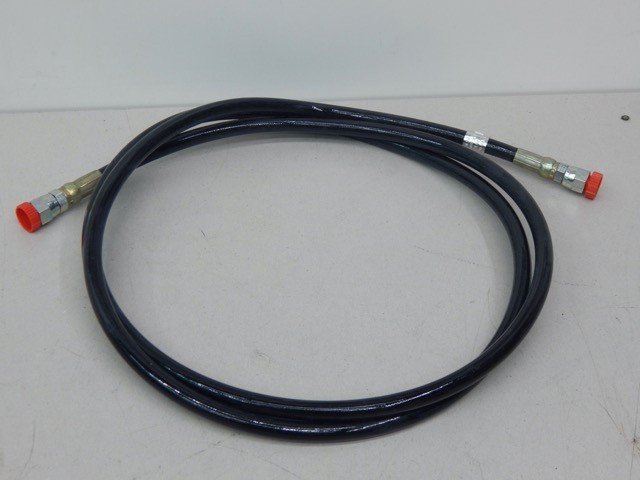

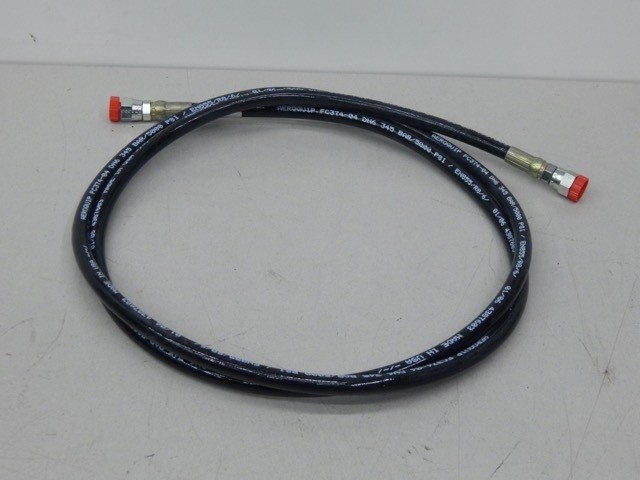

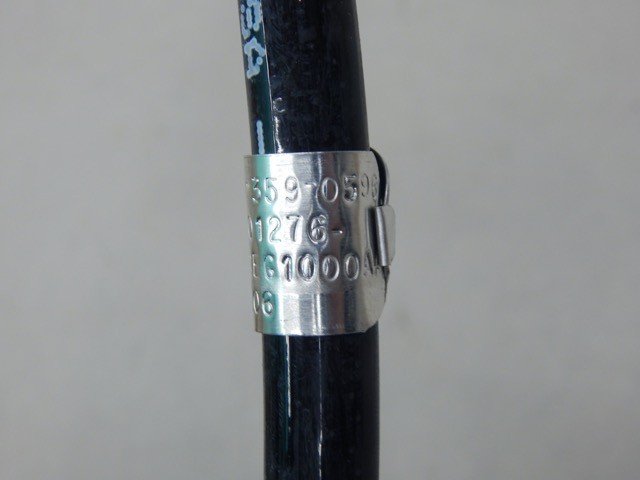

Danfoss FL3280GEG1000AA, 4720013590596, Hose Assembly Danfoss FL3280GEG1000AA, 4720013590596, Hose Assembly
Danfoss
FL3280GEG1000AA
4720013590596
Hose Assembly
ALT MPN
6HA663, 6-294-005637, 7-543-1353, 7-543-001353
Technical informationNameValueCROSS-SECTIONAL SHAPE STYLEROUNDTHREAD CLASS3B 1ST ENDTHREAD DIRECTIONRIGHT-HAND 1ST ENDINSIDE DIAMETER0.250 INCHES NOMINALTEMP RATING-65.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEIT SINGLE RESPONSEOUTSIDE DIAMETER0.510 INCHES NOMINALMINIMUM INSIDE BENDING RADIUS2.000 INCHESEXTERIOR COLORBLACKEND ITEM IDENTIFICATION2320-01-097-0261CONNECTION STYLESWIVEL NUT FLARE 1ST ENDEND CONNECTION DESIGNSTRAIGHT 1ST ENDCONNECTION TYPETHREADED INTERNAL TUBE 1ST ENDFEATURES PROVIDEDPERFORATED OUTER COVERBURST TEST PRESSURE20000.0 POUNDS PER SQUARE INCHLAYER COMPOSITION AND LOCATION1ST LAYER BRAIDED POLYAMIDE CORD AND OUTER LAYER MOLDED POLYURETHANEMAXIMUM OPERATING PRESSURE5000.0 POUNDS PER SQUARE INCHNOMINAL THREAD SIZE0.562 INCHES 1ST ENDSEAT ANGLE37.0 DEGREES 1ST ENDHYDROSTATIC TEST PRESSURE10000.0 POUNDS PER SQUARE INCHOUTER COVERING ENVIRONMENTAL PROTECTIONFIRE RESISTANT AND FUEL RESISTANT AND OIL RESISTANT AND WATER RESISTANTINSIDE SURFACE CONDITIONSMOOTHMEASURING METHOD AND LENGTH100.000 INCHES NOMINAL OVERALLPROPRIETARY CHARACTERISTICSPACSTHREAD SERIES DESIGNATORUNJF 1ST ENDCROSS-SECTIONAL SHAPE STYLE1 ROUNDTEMP RATING-65.0 DEG FAHRENHEIT AND 200.0 DEG FAHRENHEITFIRST END CONNECTION TYPETHREADED INTERNAL TUBEFIRST END STYLE DESIGNATORC3 SWIVEL NUT FLAREFIRST END THREAD CLASS3BFIRST END THREAD DIRECTIONRIGHT-HANDFIRST END SEAT ANGLE IN DEG37.0INNER CONVEYING TUBE MATERIALPLASTIC, THERMOPLASTICFIRST END CONNECTION DESIGNSTRAIGHTHOSE OR TUBING SPEC/STD DATASAE J517,100R8-81343 STANDARDSECOND END RELATIONSHIP WITH FIRST ENDIDENTICALFIRST END SWIVEL ACTION CAPABILITYNOT INCLUDEDLAYER COMPOSITION AND LOCATION1ST LAYER BRAIDED POLYAMIDE CORDLAYER COMPOSITION AND LOCATIONOUTER LAYER MOLDED POLYURETHANEFIRST END FITTING/COMPONENT AND MATERIALCOMPLETE FITTING STEEL, CORROSION RESISTINGFIRST END THREAD SERIES DESIGNATORUNJFFIRST END NOMINAL THREAD SIZE0.562 INCHES
416-E-03773-000000
Unless otherwise noted, this listing is for one item per purchase.
