Condition: New – Open box

Slight Rust from Storage

–

Brunning

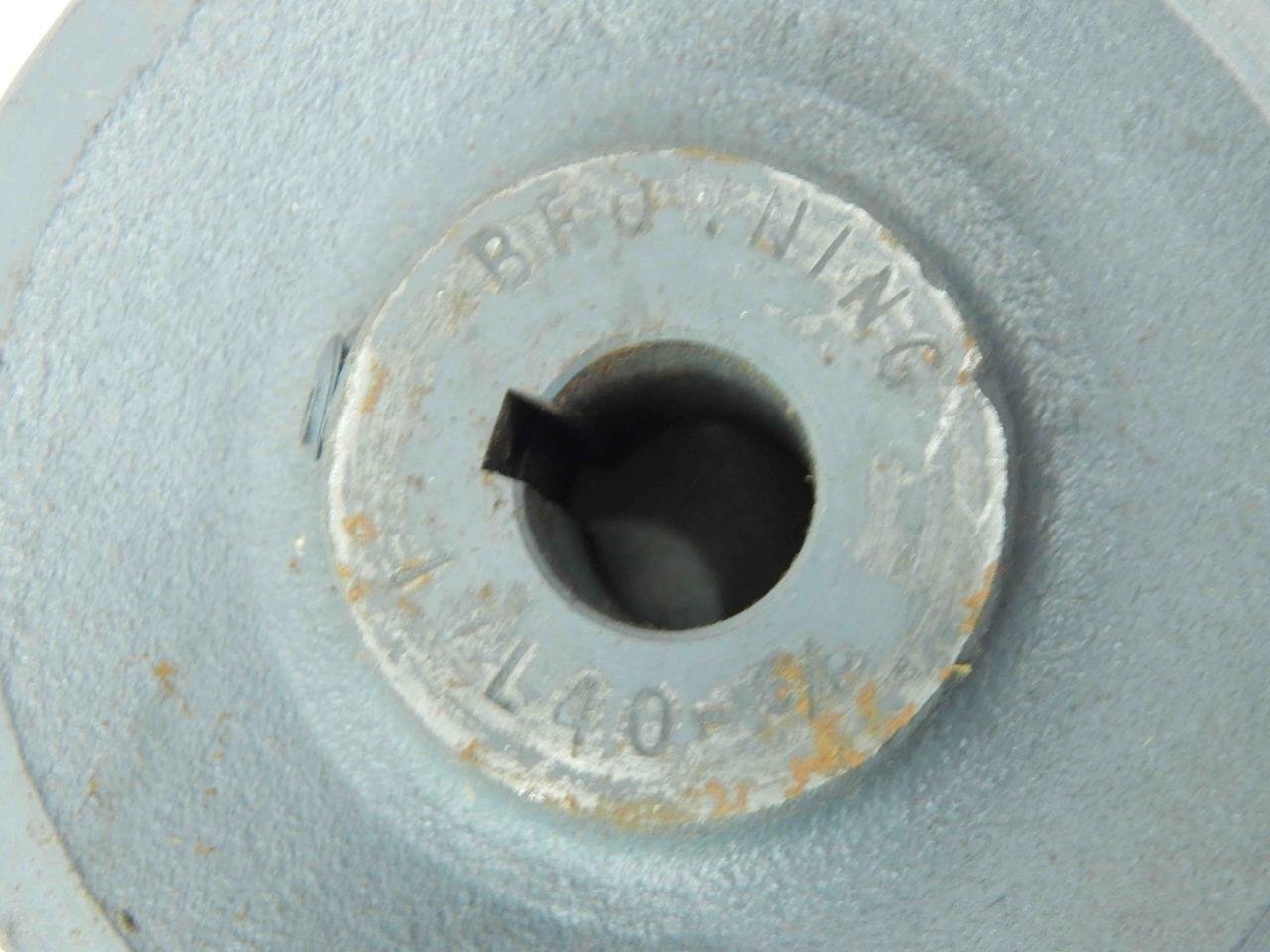

3X264, 1VL40- 5/8 ,1VL40X5/8
3020004096187

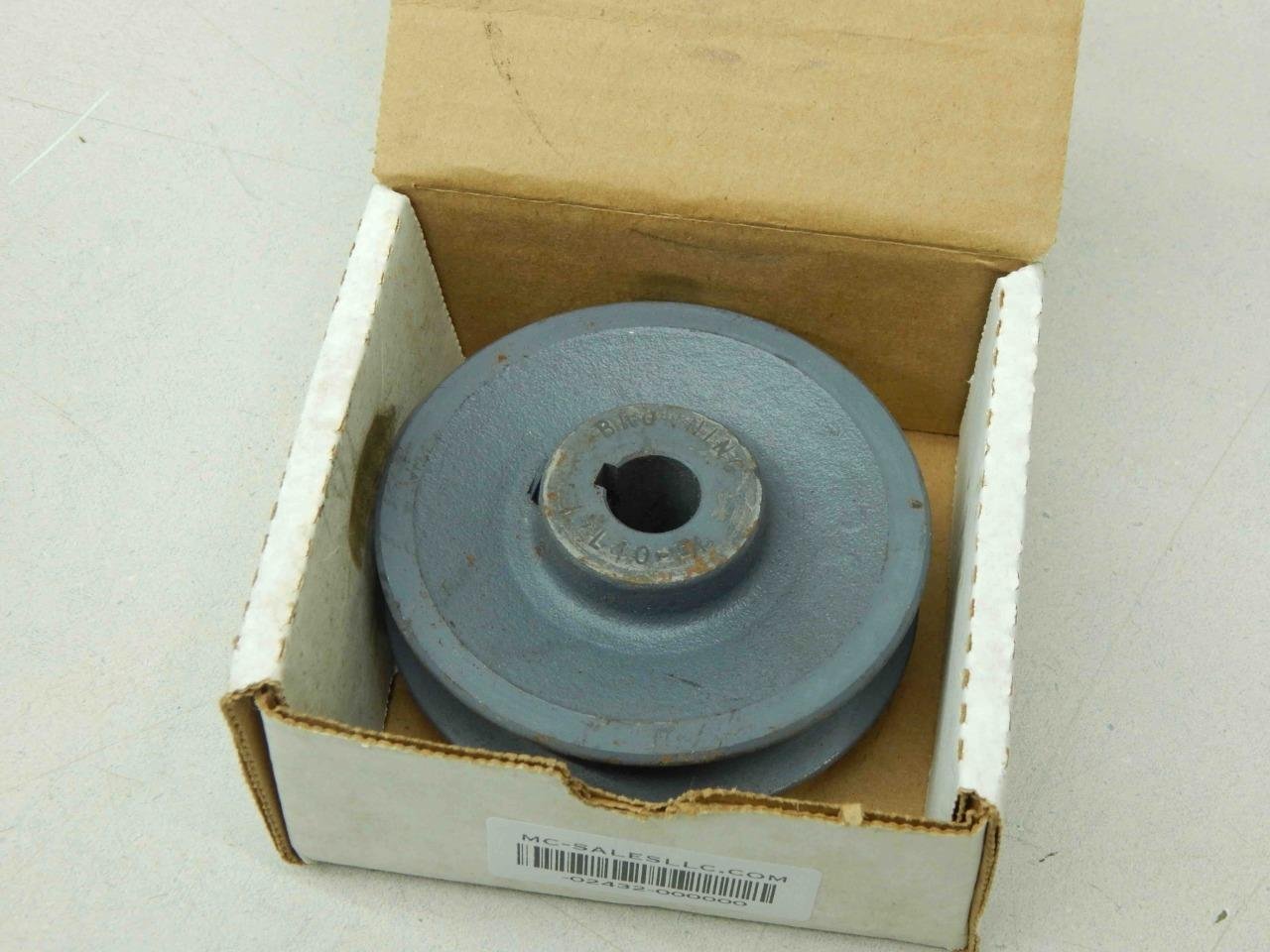

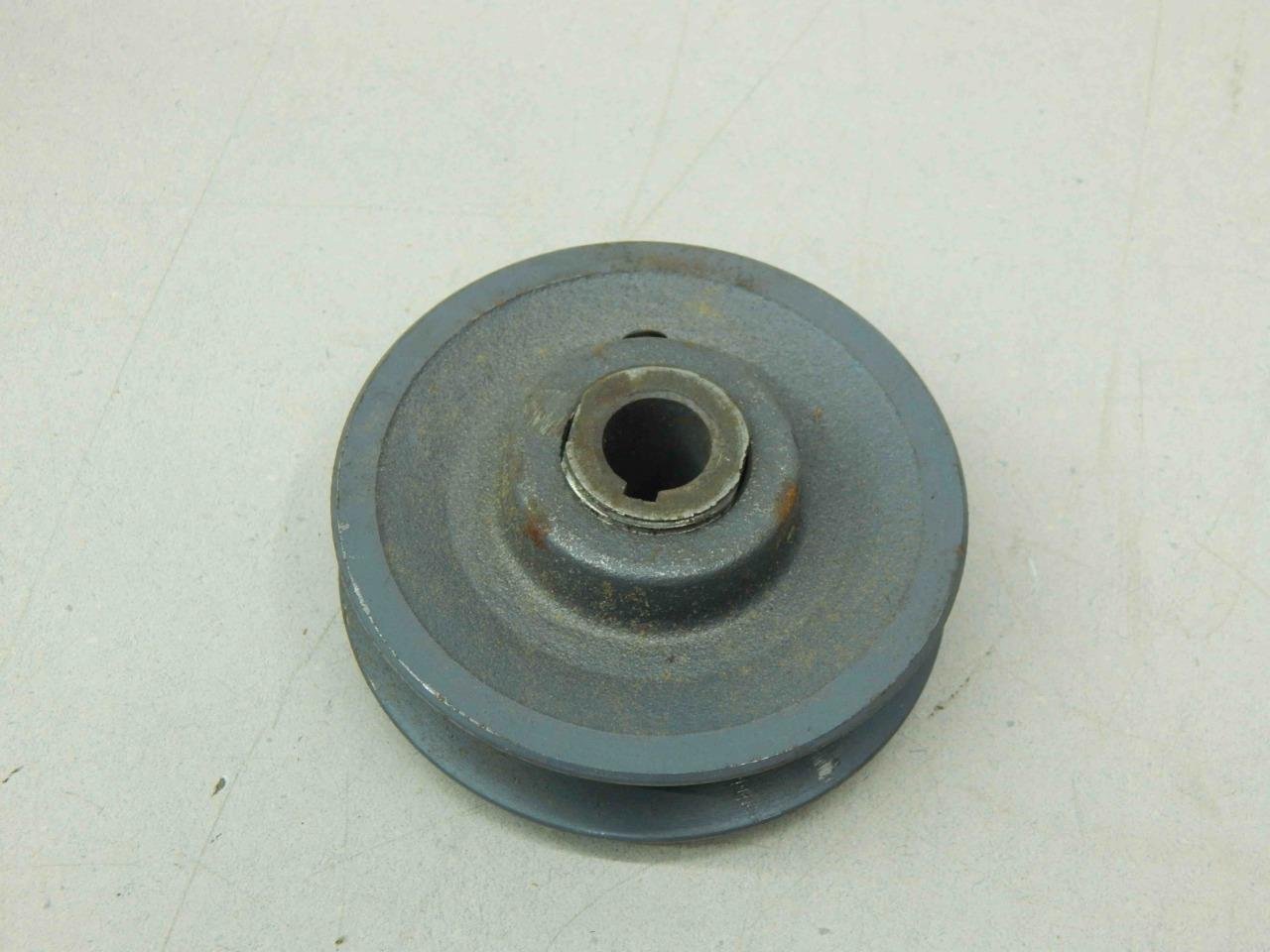

Pulley Variable Pitch Sheave
1 Groove, Finished Bore, Cast Iron Sheave
for 3L, 4L or A, 5L or B Section Belt

Name Value GROOVE DEPTH 0.685 INCHES NOMINAL GROOVE WIDTH 0.500 INCHES MINIMUM AND 0.875 INCHES MAXIMUM OUTSIDE DIAMETER 3.750 INCHES NOMINAL OVERALL LENGTH 1.652 INCHES NOMINAL KEYWAY WIDTH 0.190 INCHES NOMINAL BORE DIAMETER 0.625 INCHES NOMINAL BORE LENGTH 1.652 INCHES NOMINAL DISTANCE FROM CENTER OF BORE TO BOTTOM OF KEYWAY 0.398 INCHES NOMINAL V GROOVE ANGLE IN DEG 36.0 PITCH DIAMETER 2.300 INCHES MINIMUM AND 3.700 INCHES MAXIMUM MATERIAL AND LOCATION IRON, CAST OVERALL FACE WIDTH 0.625 INCHES MINIMUM AND 1.000 INCHES MAXIMUM DESIGN FORM WEBBED BORE TYPE STRAIGHT BEARINGS NOT INCLUDED GROOVE QUANTITY 1 COUNTERBORE FEATURE NOT INCLUDED KEYING FACILITY INCLUDED KEYING FACILITY TYPE KEYWAY SPLIT HUB FEATURE NOT INCLUDED WEB/SPOKE RELATIONSHIP TO FACE CENTERLINE NOT OFFSET LIGHTENING HOLE NOT INCLUDED INTEGRAL COOLING VANE NOT INCLUDED GROOVE SHAPE V STANDARD V-BELT SECTION DESIGNATION FOR WHICH DESIGNED 3L AND 4L AND 5L BORE FEATURE INCLUDED HUB END OUTSIDE DIAMETER AND LOCATION 0.425 INCHES NOMINAL AA END AND 0.190 INCHES NOMINAL BB END DISTANCE FROM OUTSIDE FLANGE/RIM TO HUB END AND LOCATION 1.700 INCHES NOMINAL AA END AND 1.510 INCHES NOMINAL BB END QUANTITY 1 PROPRIETARY CHARACTERISTICS PACS SURFACE TREATMENT PAINT STYLE DESIGNATOR WEBBED OR SPOKED STYLE DESIGNATOR A7 WEBBED OR SPOKED

Unless otherwise noted, this listing is for one item per purchase

138-C-02432-000000
