Condition: New – Open box

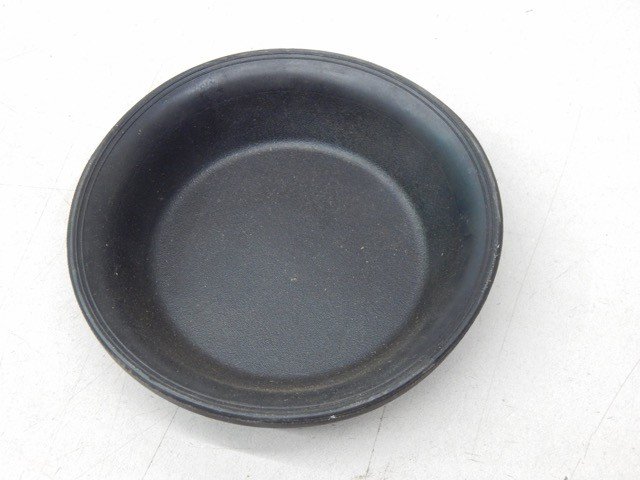

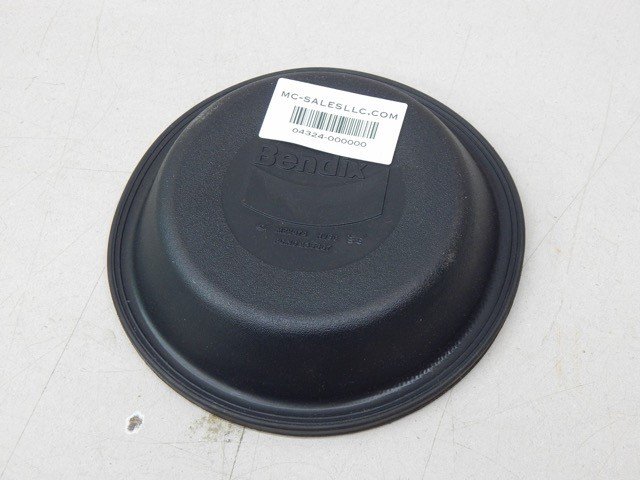

Bendix 236667, 2530009270032, Type 24, Brake Chamber Diaphragm, M22474, HVSG Bendix 236667, 2530009270032, Type 24, Brake Chamber Diaphragm, M22474, HVSG

Bendix

236667

2530009270032

Type 24

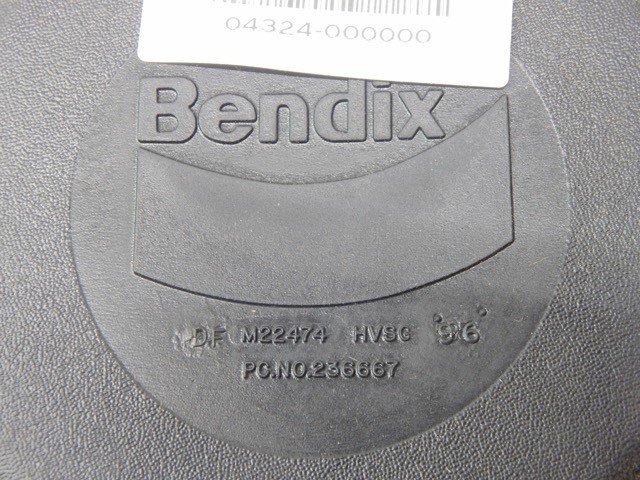

M22474 Brake Chamber Diaphragm HVSG

258-7, 3779425, 440263, 8017130, N20130, AE17547, 2329244, 236667, 236668, 440263

6-5030, L-825, N20130

Technical informationNameValueOVERALL DEPTH1.306 INCHES MINIMUM AND 1.523 INCHES MAXIMUMMATERIAL THICKNESS0.110 INCHES MINIMUM AND 0.155 INCHES MAXIMUMOVERALL OUTSIDE DIAMETER7.718 INCHES MINIMUM AND 7.874 INCHES MAXIMUMCONSTRUCTIONFABRIC INSERTMOUNTING METHODBEADDIAPHRAGM TYPEBEADED ANGULAR RECESSEDIII MATERIALRUBBER SYNTHETICPROPRIETARY CHARACTERISTICSPACSIII FSC APPLICATION DATAVEHICULAR BRAKE SYSTEMNONMETALLIC HARDNESS RATINGNOT RATEDMATERIALRUBBER, SYNTHETICFSC APPLICATION DATAVEHICULAR BRAKE SYSTEM

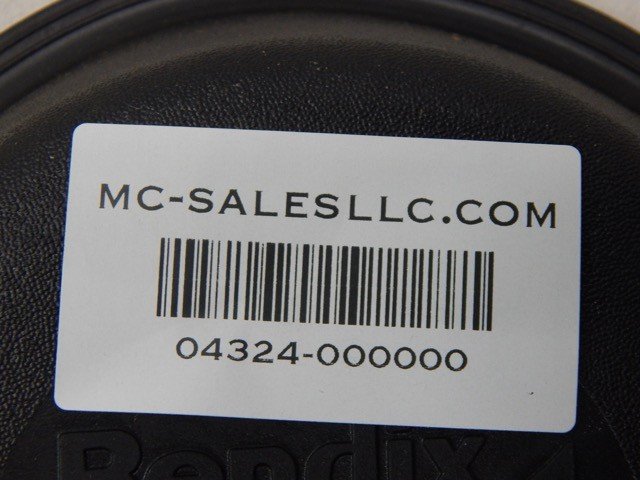

415-C-W-04324-000000

Unless otherwise noted, this listing is for one item per purchase.
