Condition: New
*** Welcome to mc-salesllc ***
#207
Warren Controls

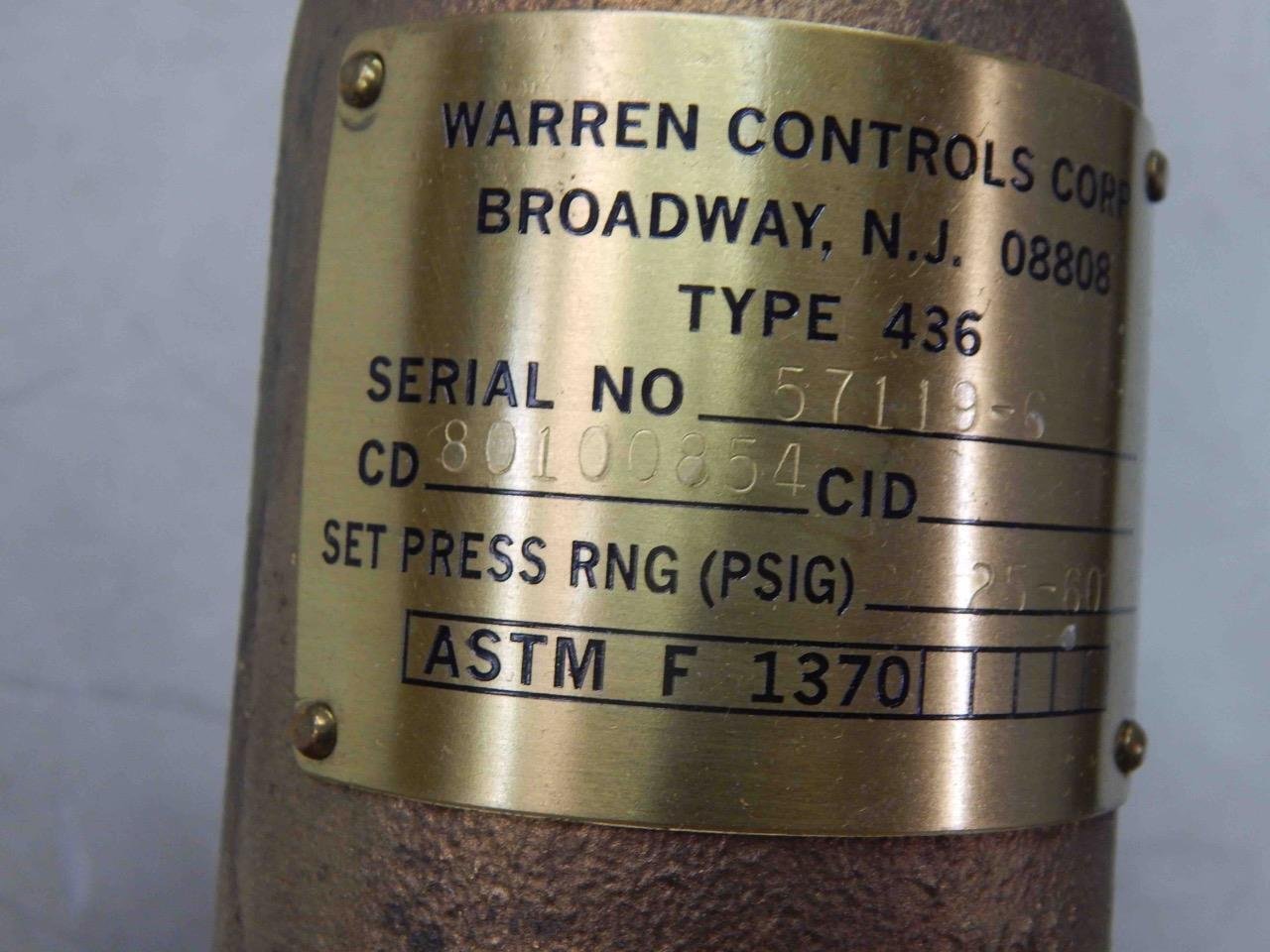

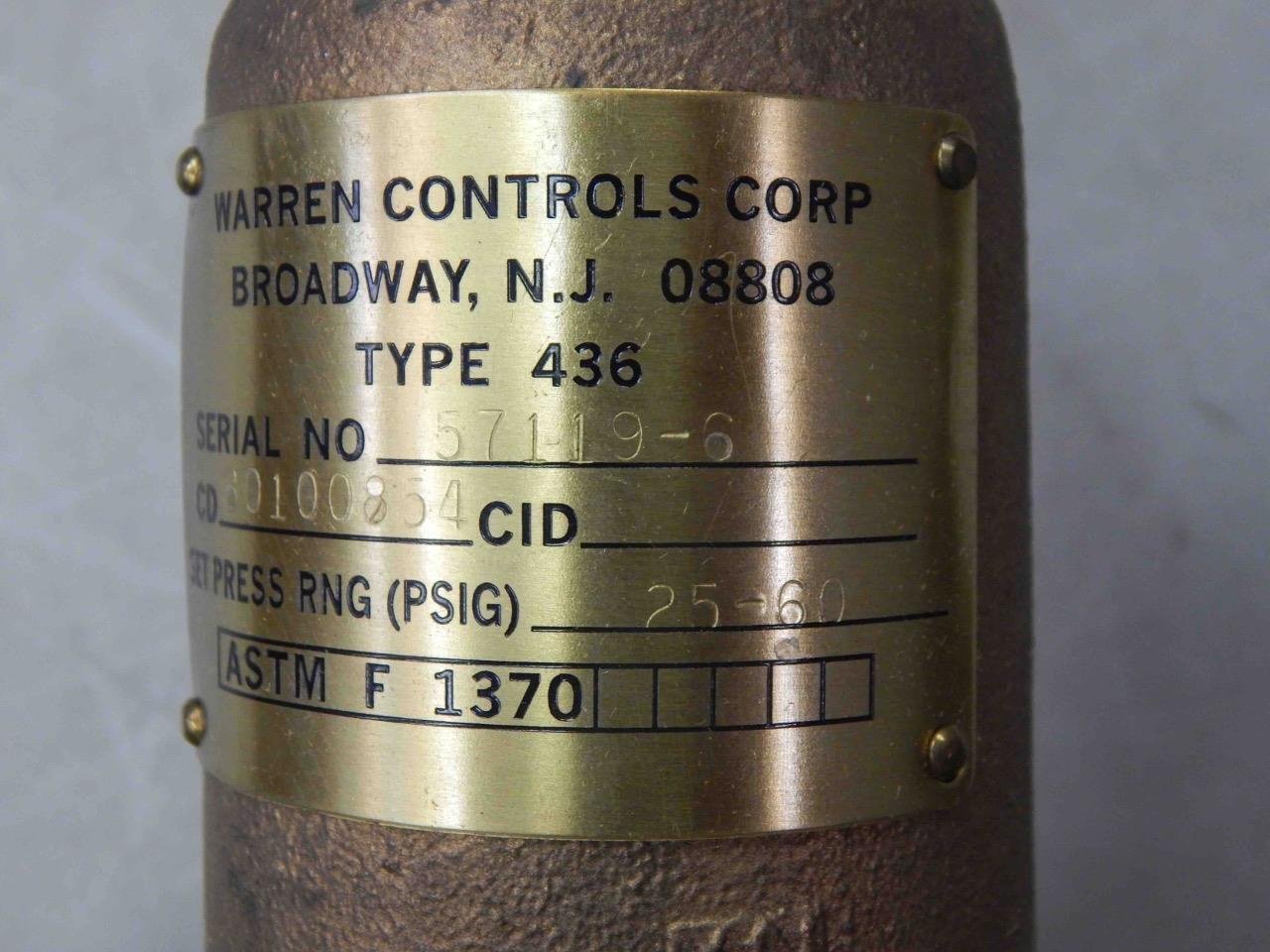

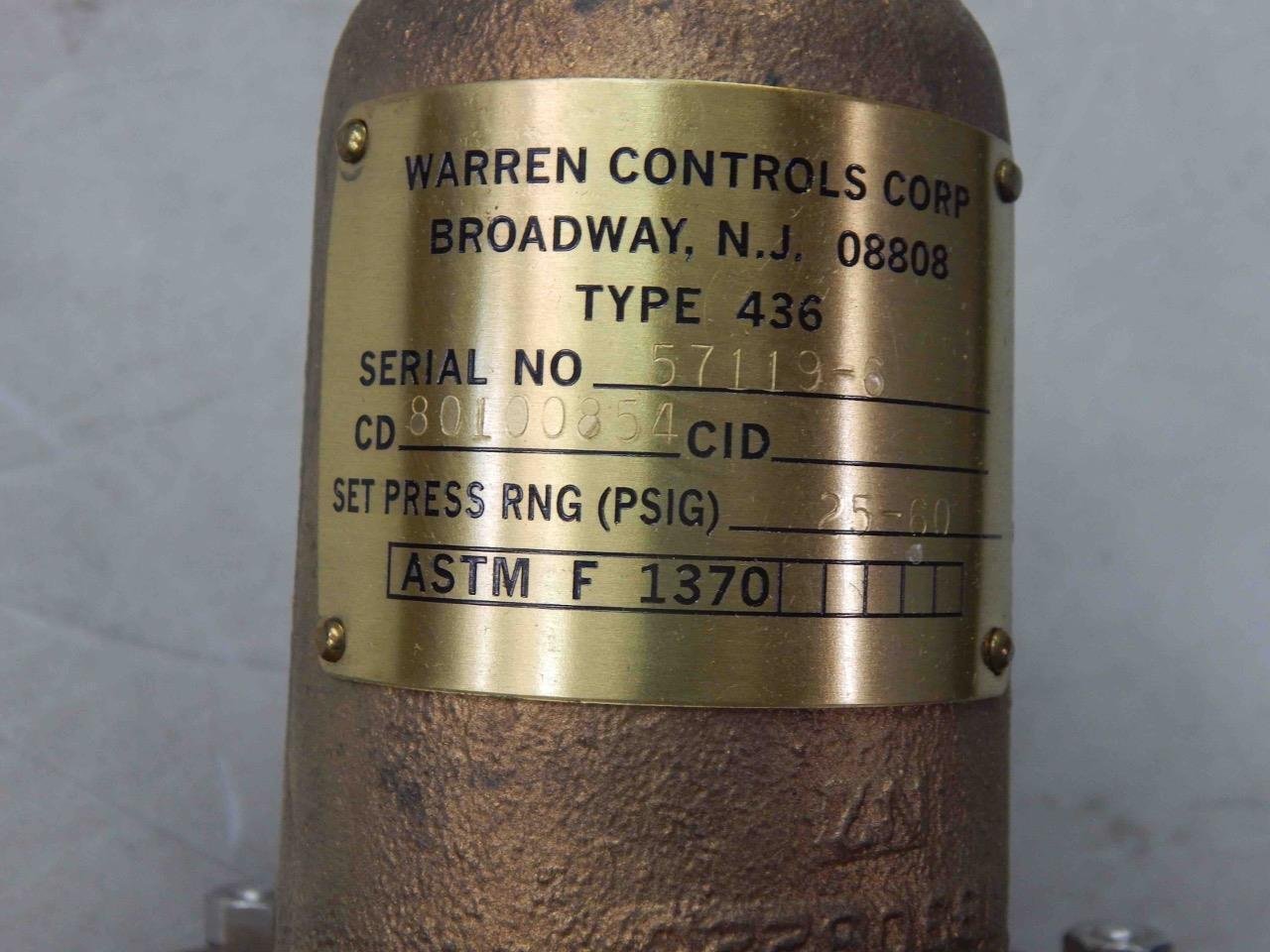

Type 436
F13702FF1B, F1370, F137002HF1B, 4207-D27994
4820-00-181-8958

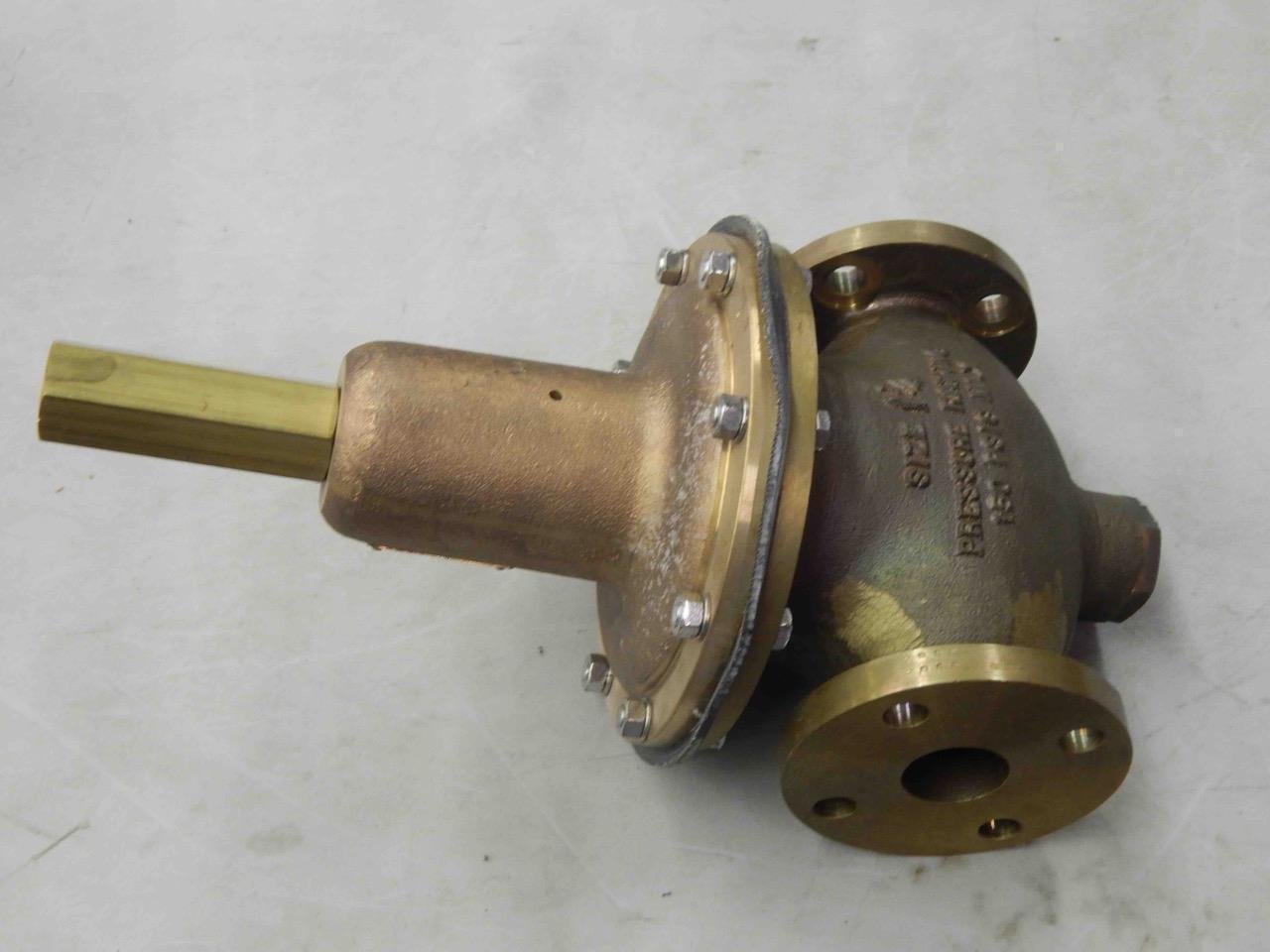

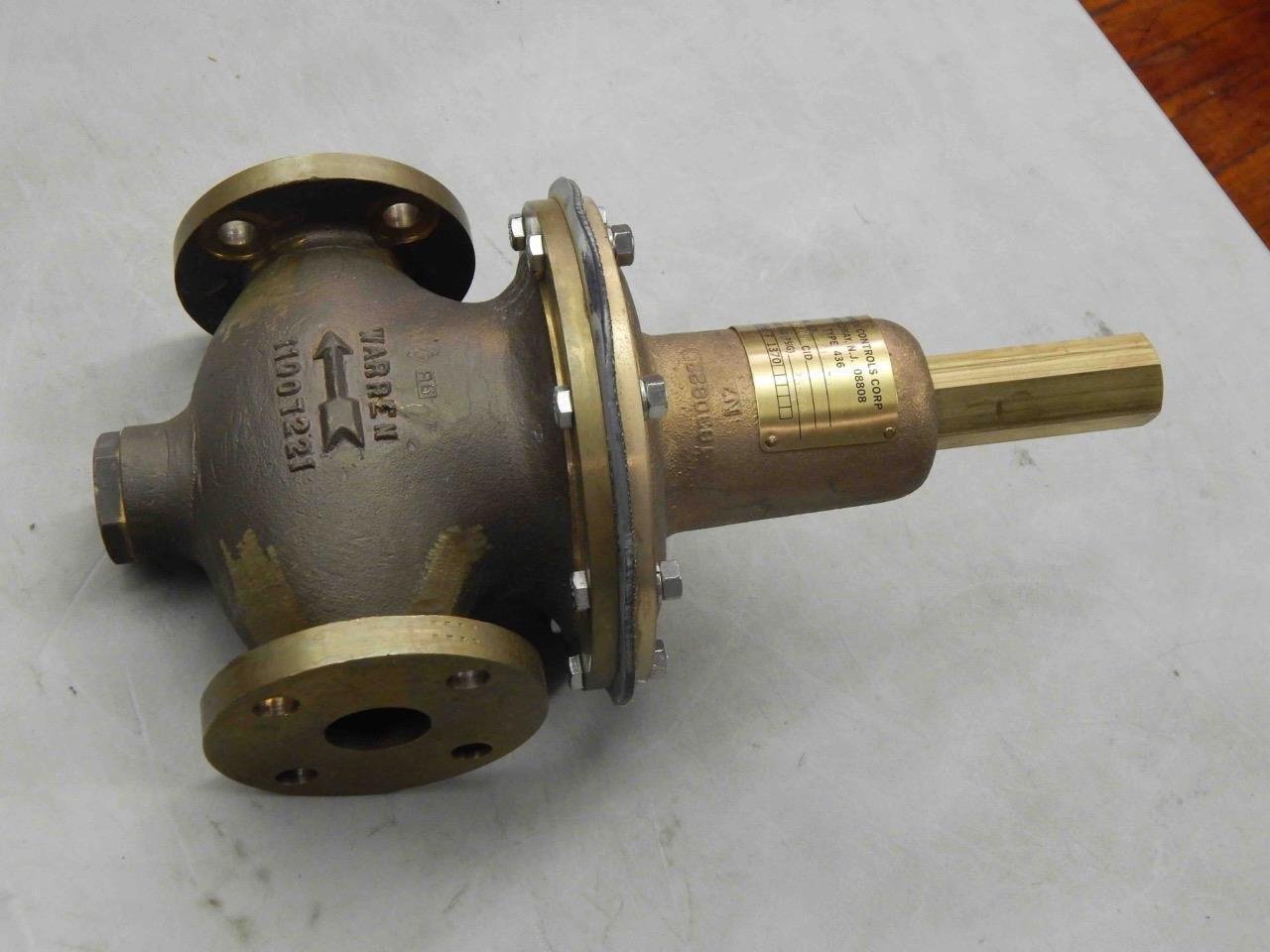

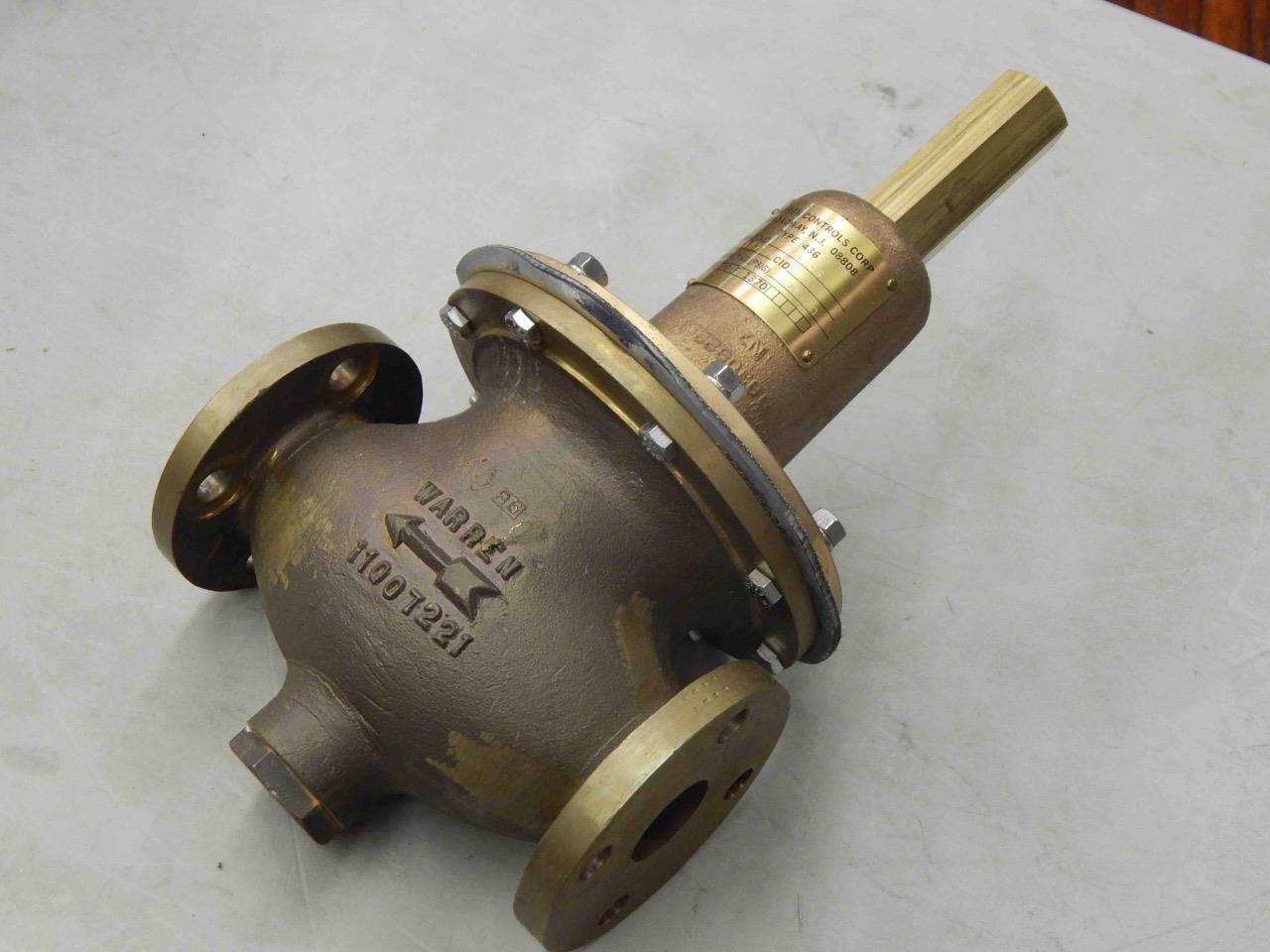

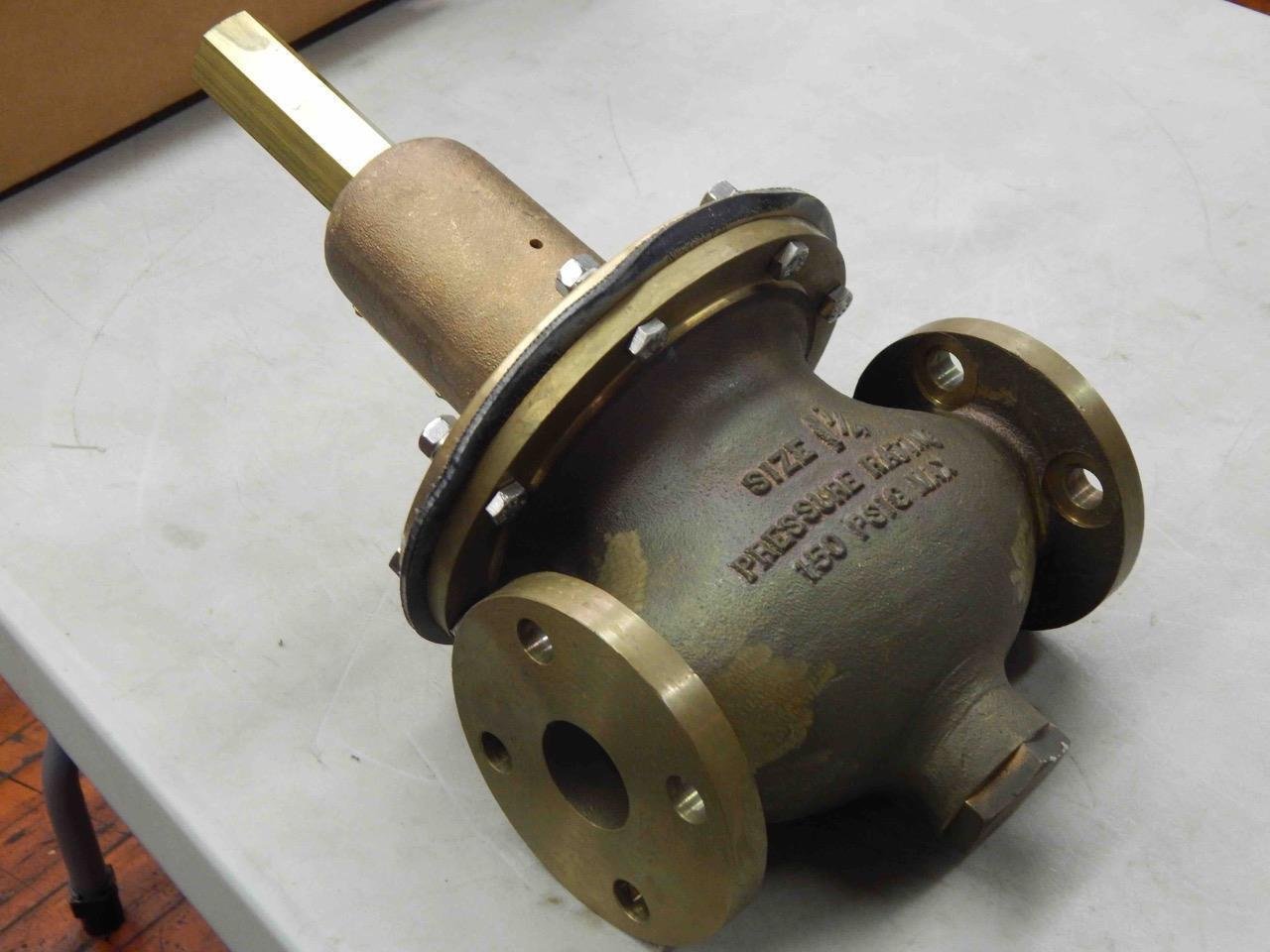

Regulating Fluid Pressure Valve
>NEW
SOLD SEPARATELY
MRC Decoded Requirement Clear Text Reply AAFZ Body Material ANY ACCEPTABLEANY ACCEPTABLE AAHF First End Flange Outside Diameter 4.500 INCHES NOMINAL4.500 INCHES NOMINAL AAQL Body Style STRAIGHT THRUSTRAIGHT THRU ABEP Stem Material ANY ACCEPTABLEANY ACCEPTABLE ACKL Media For Which Designed WATER, FRESH AND WATER, FRESH AND WATER, SALTWATER, SALT ACKM First End Connection Type PLAIN FACE FLANGEPLAIN FACE FLANGE ACKN First End Style Designator PLAINPLAIN ACKT First End Flange Shape Style ROUND W/ BOLT HOLESROUND W/ BOLT HOLES ACKU First End Flange Thickness 0.438 INCHES NOMINAL0.438 INCHES NOMINAL ACKZ First End Bolt Hole Quantity 44 ACLA First End Bolt Hole Diameter 0.563 INCHES NOMINAL0.563 INCHES NOMINAL ACLB First End Bolt Circle Diameter 3.375 INCHES NOMINAL3.375 INCHES NOMINAL ACLR Second End Relationship With First End IDENTICALIDENTICAL ACSH Seat Material ANY ACCEPTABLEANY ACCEPTABLE ADQL Face To Face Distance 7.938 INCHES NOMINAL7.938 INCHES NOMINAL ADQT Packing Material ANY ACCEPTABLEANY ACCEPTABLE ADQU Flow Control Device DIAPHRAGMDIAPHRAGM ADQV Flow Control Device Material ANY ACCEPTABLEANY ACCEPTABLE ADQZ End Connection Quantity 22 ADZH Renewable Seat Ring Type THREADEDTHREADED AEVA Outlet Pressure Range +25.0 TO 60.0 POUNDS PER SQUARE INCH+25.0 TO 60.0 POUNDS PER SQUARE INCH AEVN Regulation Type AUTOMATIC DOUBLE STAGE AEVQ Valve Stem Design SINGLE SEAT AEVR Valve Loading Method SPRING AEVZ Maximum Inlet Pressure Rating 150.0 POUNDS PER SQUARE INCH AEWF Filter NOT INCLUDED SPCL Special Test Features HIGH-IMPACT SHOCK TESTS ARE REQUIRED AS DIRECTED IN PARAGRAPHS 3.6 AND 4.4.2.3 OF MIL-V-2042 IN PACK TEST ABOVE TEST Test Data Document 81349-MILV2042 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS “TYPICAL”, “AVERAGE”, “NOMINAL”, ETC.). ZZZT Nondefinitive Spec/Std Data 2 TYPE
The pictures say it all, please view them for more details..
Unless otherwise noted, this listing is for one item per purchase.
>15-D-207
0004202016
