Condition: New – Open box
#193

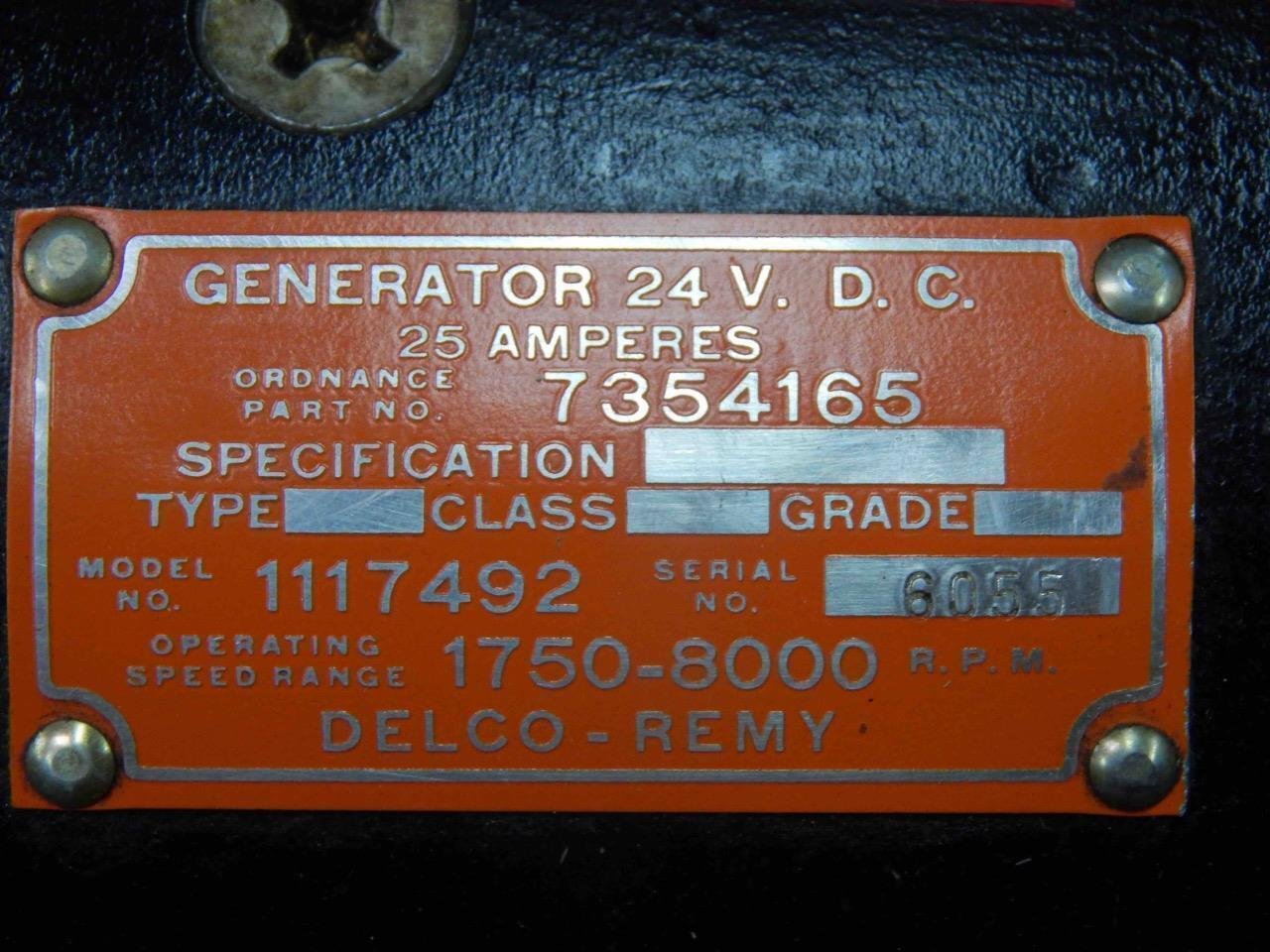

Delco Remy
GM
1117492
7354165
518539

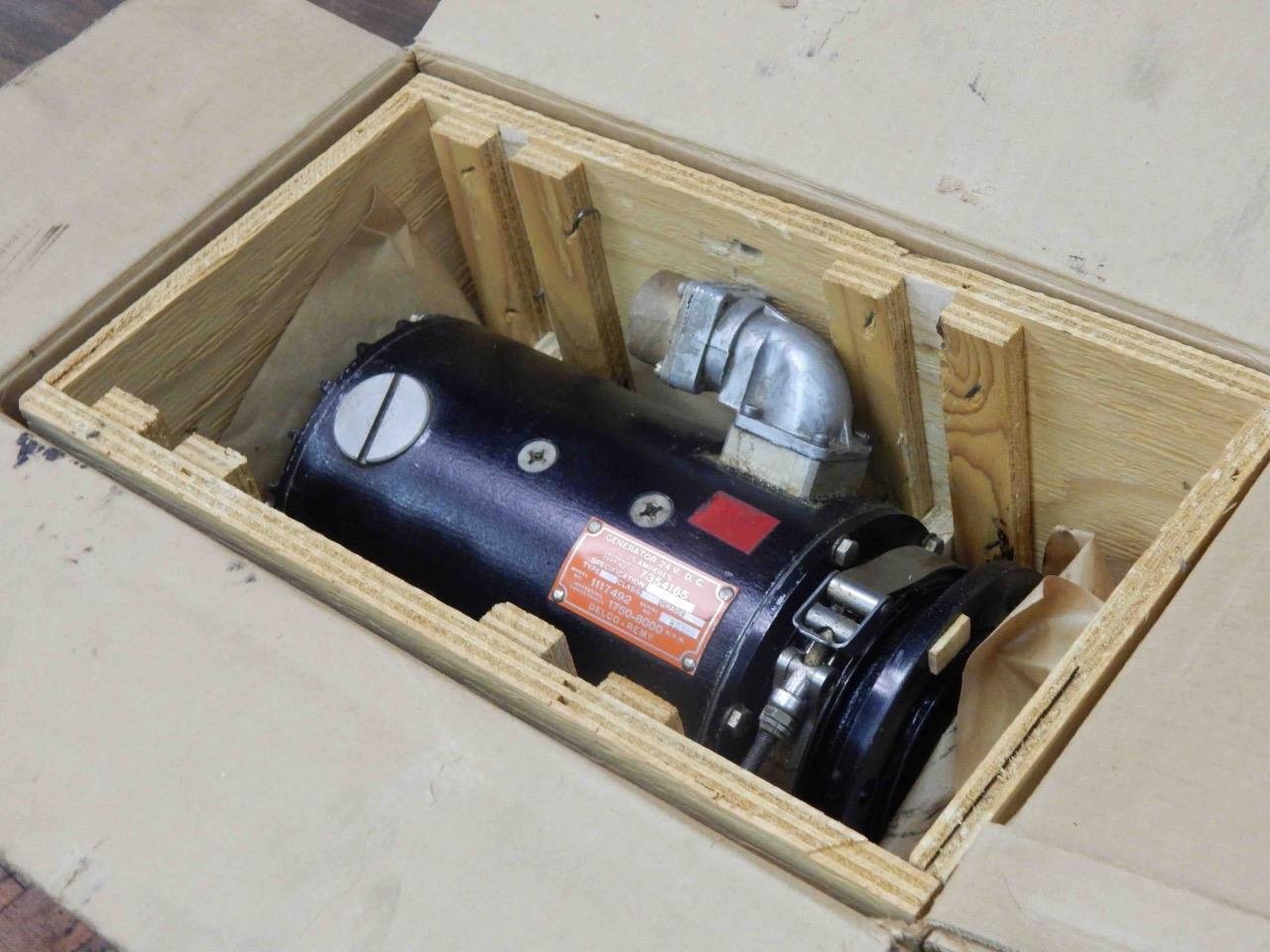

24Vdc Generator
1750-8000 RPM
2920-00-735-4165
SOLD SEPARATELY
| Technical information |
| SPLINE MAJOR DIAMETER |
0.863 INCHES MINIMUM AND 0.867 INCHES MAXIMUM |
| PILOT DIAMETER |
4.120 INCHES MINIMUM AND 4.122 INCHES MAXIMUM |
| FURNISHED ITEMS |
TERMINAL SHIELD AND QUICK DISCONNECT MOUNTING BAND |
| SPLINE QUANTITY |
16 |
| MOUNTING HOLE DIAMETER |
0.391 INCHES NOMINAL |
| MOUNTING HOLE QUANTITY |
6 |
| MOUNTING HOLE RADIUS |
4.998 INCHES MINIMUM AND 5.002 INCHES MAXIMUM |
| PILOT HEIGHT |
0.156 INCHES NOMINAL |
| ENVIRONMENTAL PROTECTION |
CORROSION RESISTANT AND FUNGUS RESISTANT |
| SUBMERSIBILITY |
SUBMERSIBLE |
| SHAFT ROTATION DIRECTION |
COUNTERCLOCKWISE |
| SPLINE LENGTH |
1.625 INCHES NOMINAL |
| GROUND POLARITY TYPE |
NEGATIVE OR POSITIVE |
| ARMATURE MINIMUM SPEED IN RPM AT FULL CURRENT OUTPUT |
1600 |
| MAXIMUM OUTPUT CURRENT RATING IN AMPS |
25.0 |
| GROUNDING METHOD |
INTERNAL |

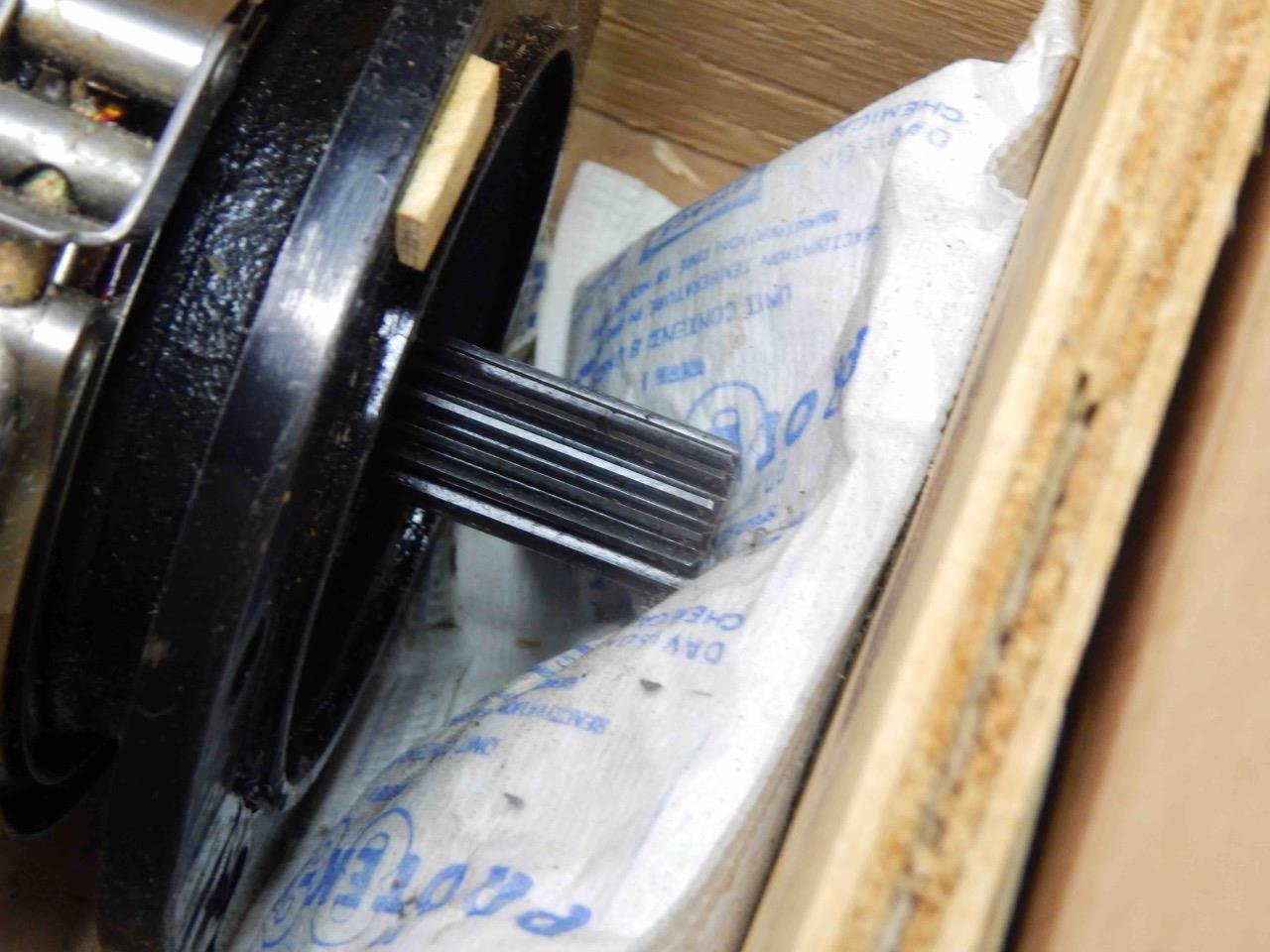

| SHAFT DRIVE END STYLE |
SPLINED SHAFT END |
| ANGULAR DEVIATION OF FIRST HOLE FROM TOP CENTER IN DEG |
39.0 |
| MAXIMUM RATED ARMATURE SPEED IN RPM |
8000 |
| VOLTAGE IN VOLTS |
24.0 |
| FSC APPLICATION DATA |
ENGINE ELECTRICAL SYSTEM,NONAIRCRAFT |
|
The pictures say it all, please view them for more details..
Unless otherwise noted, this listing is for one item per purchase.
10-E-193
