Condition: New
*** Welcome to mc-salesllc ***
#134

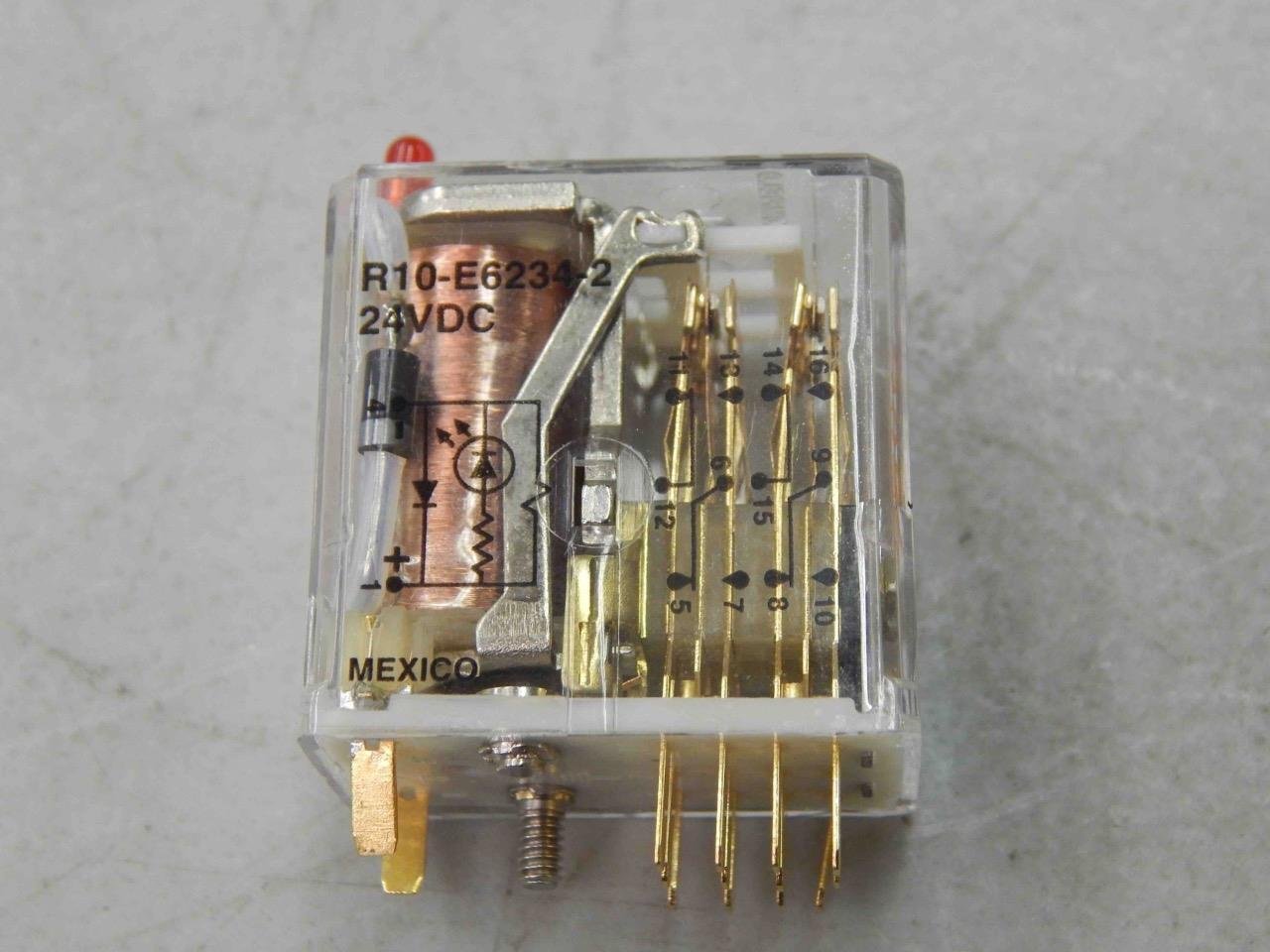

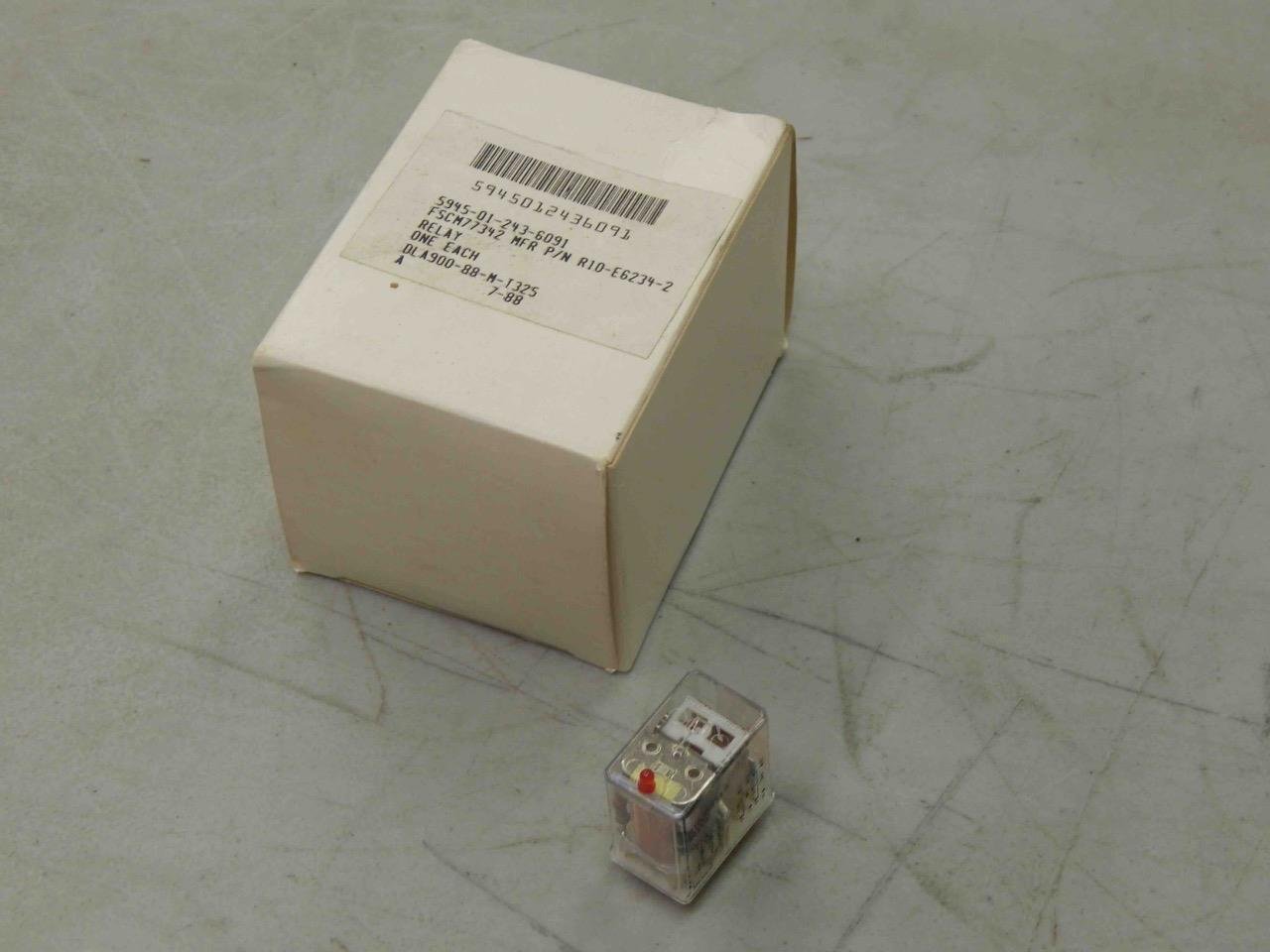

Tyco
R10-E6234-2
5945-01-243-6091
24Vdc
Electromagnet Relay
>NEW
MRC Decoded Requirement Reply Text AAJD THREAD CLASS 2A SINGLE MOUNTING FACILITY AAJF THREAD DIRECTION RIGHT-HAND SINGLE MOUNTING FACILITY ABHP OVERALL LENGTH 1.165 INCHES MAXIMUM ABKW OVERALL HEIGHT 1.397 INCHES MAXIMUM ABMK OVERALL WIDTH 0.735 INCHES MAXIMUM ADTV CASE MATERIAL PLASTIC ADZC ENVIRONMENTAL PROTECTION DUSTPROOF AFJN FRAGILITY FACTOR MODERATELY RUGGED AFRG CONTACT MATERIAL SILVER AFRH CONTACT SURFACE TREATMENT GOLD AKDX WINDING QUANTITY 1 AKSL PURPOSE FOR WHICH DESIGNED GENERAL APCN COIL QUANTITY 1 APNA WINDING DC RESISTANCE RATING 700.0 OHMS NOMINAL SINGLE WINDING APNP DUTY TYPE CONTINUOUS APNQ ARC QUENCHING METHOD AIR AXHR MOUNTING FACILITY TYPE AND QUANTITY 1 THREADED STUD SINGLE MOUNTING FACILITY BBRG STORAGE TYPE GENERAL PURPOSE WAREHOUSE CBME CUBIC MEASURE 1.196 CUBIC INCHES CMLP THREAD QUANTITY PER INCH 48 SINGLE MOUNTING FACILITY CQJX NOMINAL THREAD SIZE 0.099 INCHES SINGLE MOUNTING FACILITY CRNG NONPILE-UP MAIN CONTACT ARRANGEMENT 4 POLE, DOUBLE THROW, ONE POSITION MOMENTARY CSXF OPERATING VOLTAGE RATING AND TYPE AT SPECIFIED TEMP 24.0 VOLTS DC 25 DEG CELSIUS SINGLE WINDING CTDL MAIN CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE 2.0 AMPERES AC RESISTIVE LOAD AND 2.0 AMPERES DC RESISTIVE LOAD CWAB MAIN CONTACT MAXIMUM VOLTAGE RATING IN VOLTS 120.0 AC AND 30.0 DC PMLC PRECIOUS MATERIAL AND LOCATION CONTACTS SILVER AND CONTACT AND TERMINAL SURFACES GOLD PRMT PRECIOUS MATERIAL GOLD AND SILVER THSD THREAD SERIES DESIGNATOR UNC SINGLE MOUNTING FACILITY TTQY TERMINAL TYPE AND QUANTITY 14 TAB, SOLDER LUG ALL FUNCTIONS
The pictures say it all, please view them for more details..
Unless otherwise noted, this listing is for one item per purchase.
>9-B-134
