Condition: New – Open box

12245 12245

TACOM

8710627, 12245

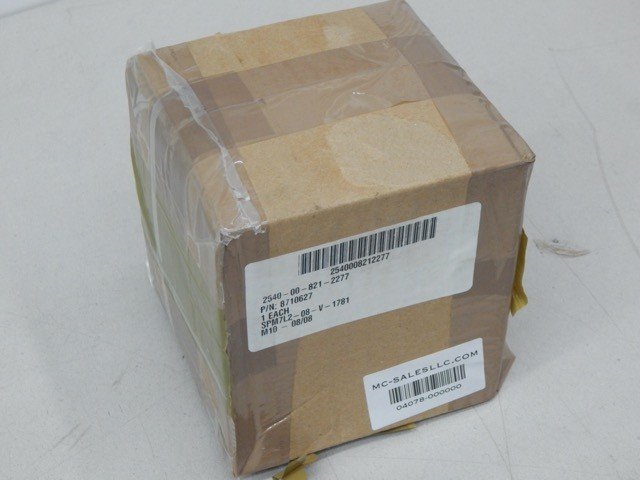

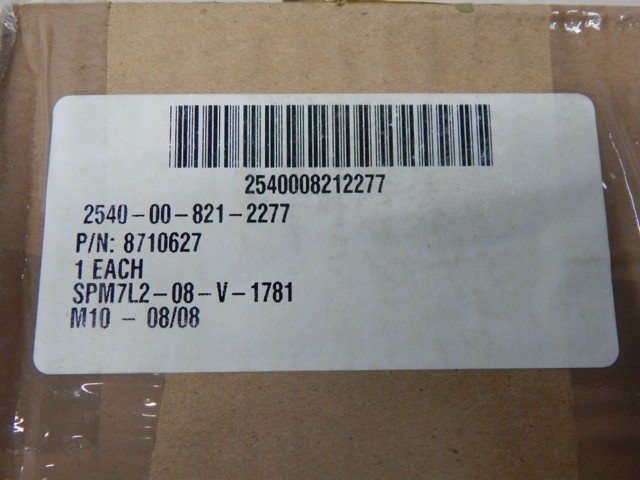

2540008212277

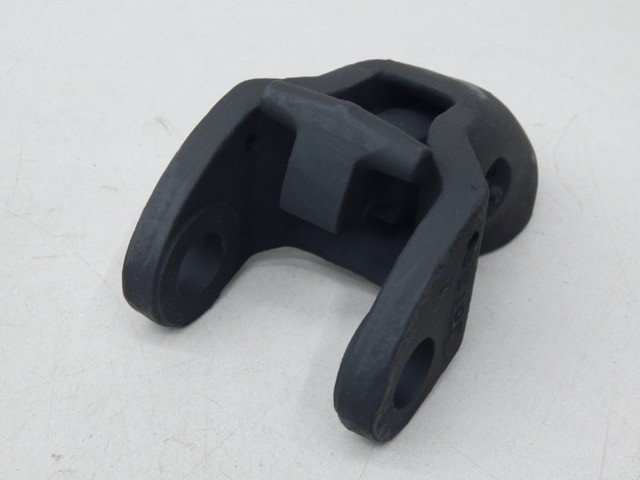

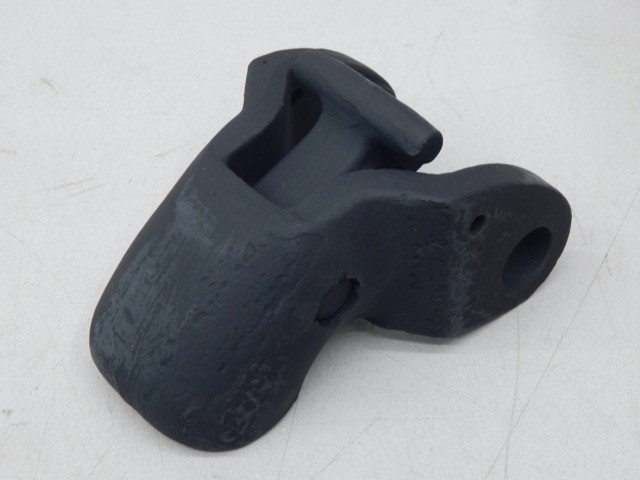

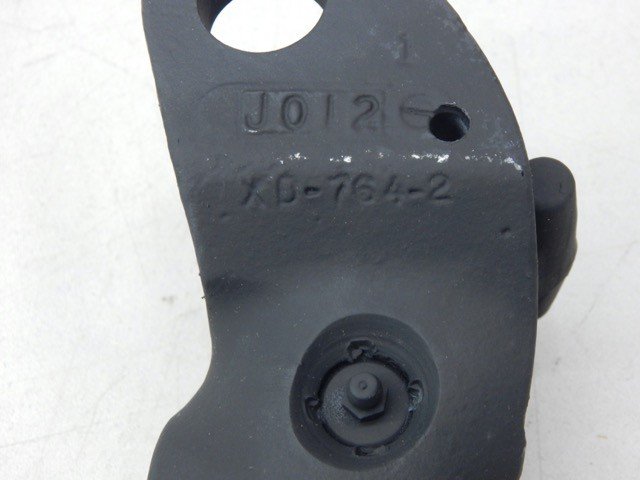

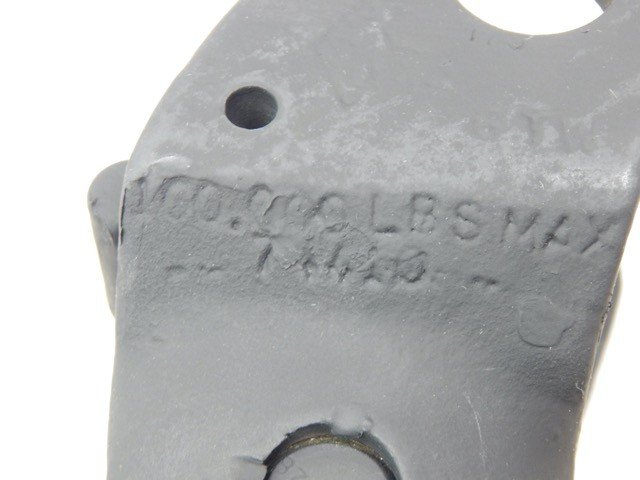

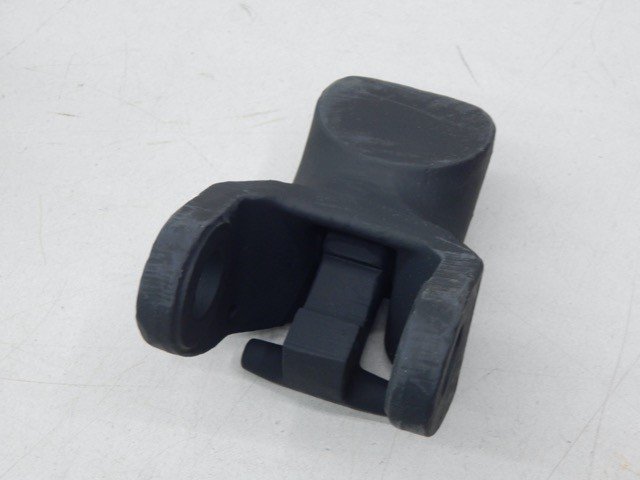

Pintle Hook Latch

Technical informationNameValueOVERALL LENGTH7.000 INCHES NOMINALOVERALL HEIGHT3.219 INCHES NOMINALOVERALL WIDTH4.062 INCHES NOMINALEND ITEM IDENTIFICATIONNSN 2320-01-097-0260 HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK); HIGH-MOBILITY ARTILLERY ROCKET SYSTEM (HIMARS)PIVOT PIN HOLE DIAMETER1.005 INCHES NOMINALTHREADED PIVOT PIN LOCKING HOLENOT INCLUDEDWIDTH AT PIVOT PIN HOLE4.062 INCHES NOMINALLOCKING PIN HOLE DIAMETER0.750 INCHES NOMINALCRITICALITY CODE JUSTIFICATIONFEATSPECIAL FEATURESWEAPON SYSTEM ESSENTIALMATERIALSTEEL COMP 150-125MATERIAL DOCUMENT AND CLASSIFICATIONQQ-S-681, CLASS 150-125 FED SPEC SINGLE MATERIAL RESPONSE

495-D-04078-000000

Unless otherwise noted, this listing is for one item per purchase.
